430 X - Husqvarna Automower Robotic Lawn Mower (Original) ACCESSORIES Parts Diagram

Automower Robotic Lawn Mower

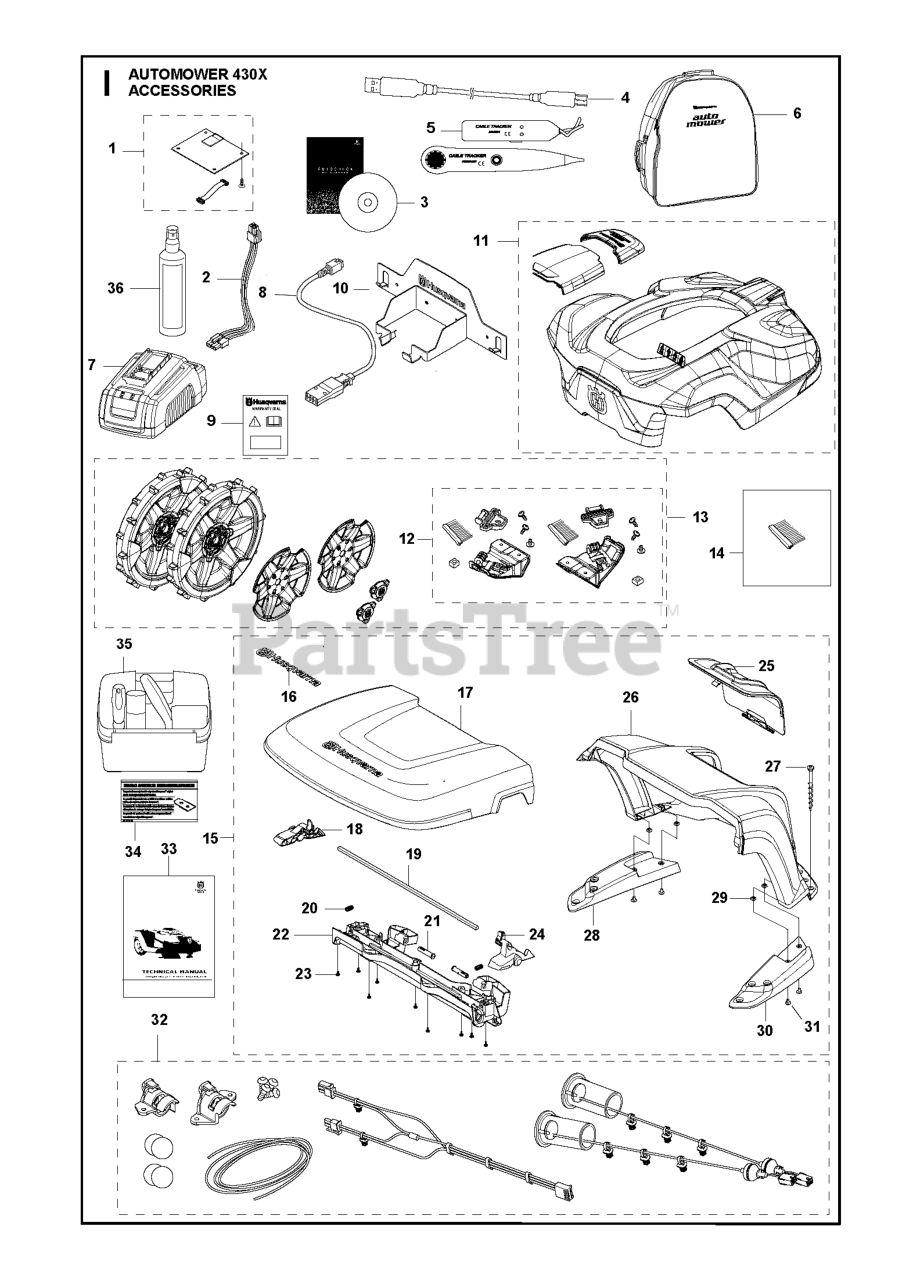

ACCESSORIES Parts Diagram

  • Title

1

Husqvarna 586662305

CONNECT MODULE 2G / 3G
(Superseded to 586662311)

Note: Automower Connect KIT

$340.99

$

Usually ships in 3-10 days

0

2

Husqvarna 591203601

WIRING ASSY BATTERY CABLE

$17.99

$

In Stock, only 1 left!

0

3

Husqvarna 577858103

DVD AUTOCHECK EXP SERVICE

Note: DVD Autocheck EXP

$45.99

$

Usually ships in 3-10 days

0

4

Husqvarna 577518102

CABLE WHITE ALT GREY

Note: Service Cable (USB)

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 577606801

TEST EQUIPMENT

Note: Interruption Detector

$227.99

$

Usually ships in 3-10 days

0

6

Husqvarna 522916701

BAG

Note: Bag

$125.99

$

Usually ships in 3-10 days

0

7

Husqvarna 588408401

CHARGER BATTERY TEST

Note: Quick Charger with Battery Test

$

$

Not available

8

Husqvarna 588202601

CABLE ASSY QUICK CHARGER

Note: Cable Quick Charger

$22.99

$

Usually ships in 3-10 days

0

9

Husqvarna 580689502

LABEL WARRANTY SEAL DEALER
(Superseded to 584902201)

Note: Warranty Seal 1pcs

$10.99

$

In Stock, Qty 10

0

10

Husqvarna 585019702

MISC. BLISTER WALL HANGER
(Superseded to 598411101)

Note: Wall Hanger

$91.99

$

Usually ships in 3-10 days

0

11

Husqvarna 580965702

WHITE BODY KIT 430

Note: For 2017 & 2016 models

$283.99

$

In Stock, only 3 left!

0

12

Husqvarna 581903102

BRUSH KIT 430/450

Note: Brush KIT incl Brush, 6 pcs

$68.99

$

Usually ships in 3-10 days

0

13

Husqvarna 581889702

REAR WHEEL KIT W/ BRUSHES

Note: Rear Wheel KIT incl. Brush KIT

$113.99

$

Usually ships in 3-10 days

0

14

Husqvarna 581982002

WHEEL BRUSH REFILL KIT

Note: Brush, 6pcs

$43.99

$

Usually ships in 3-10 days

0

15

Husqvarna 585019401

430/450 HOUSE KIT

Note: House KIT

$251.99

$

Usually ships in 3-10 days

0

16

Husqvarna 577469001

DECAL.HUSQVARNA.210MM

Note: Decal

$13.99

$

In Stock, Qty 6

0

17

Husqvarna 586885801

KIT LID - AUTOMOWER HOUSE

Note: Cover Lid

$102.99

$

Usually ships in 3-10 days

0

18

Husqvarna 585324002

HANDLE RELEASE LEFT

Note: Handle Left

$14.99

$

Usually ships in 3-10 days

0

19

Husqvarna 585324101

ROD

Note: Steel Rod

$13.99

$

Usually ships in 3-10 days

0

20

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 585341501

HINGE PIN

Note: Hinge Pin

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 585341601

BEAM

Note: Beam

$37.99

$

Usually ships in 3-10 days

0

23

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 18

0

24

Husqvarna 585324001

HANDLE RELEASE RIGHT

Note: Handle Right

$14.99

$

Usually ships in 3-10 days

0

25

Husqvarna 585323601

HATCH

Note: Hatch

$28.99

$

Usually ships in 3-10 days

0

26

Husqvarna 585323401

COVER BASE P2 HOUSE

Note: Cover Base

$102.99

$

Usually ships in 3-10 days

0

27

Husqvarna 575238601

SCREW KIT CS
(Superseded to 597435801)

Note: Screw KIT, 6 pcs

$11.99

$

Usually ships in 3-10 days

0

28

Husqvarna 585323802

SUPPORT BASE LEFT

Note: Support Base Left

$22.99

$

Usually ships in 3-10 days

0

29

Husqvarna 503226601

NUT

Note: Square Nut

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 585323801

SUPPORT BASE RIGHT

Note: Support Base Right

$22.99

$

Usually ships in 3-10 days

0

31

Husqvarna 535129303

SCREW IHPANM M6X25 4.6 ZP-BC

Note: Screw

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 581912502

430 HEADLIGHT KIT

Note: Head Lights KIT

$113.99

$

Usually ships in 3-10 days

0

34

Husqvarna 591374101

ORIGINAL PARTS STICKER

Note: Original Parts sticker SV NO DK FI

$5.99

$

Usually ships in 3-10 days

0

34

Husqvarna 591374102

ORIGINAL PARTS STICKER

Note: Original Parts sticker DE FR NL IT

$5.99

$

Usually ships in 3-10 days

0

34

Husqvarna 591374103

DECAL WARNING ORIGINAL BLADE E

Note: Original Parts sticker EN ES FR IT

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 590855101

CLEANING AND MAITENANCE KIT AM

Note: Maintenance and cleaning kit

$34.99

$

Usually ships in 3-10 days

0

36

Husqvarna 593967901

NEEDS DESCRIPTION

$431.99

$

Usually ships in 3-10 days

0
