430 XH - Husqvarna Automower Robotic Lawn Mower (2020) COVER Parts Diagram

Automower Robotic Lawn Mower

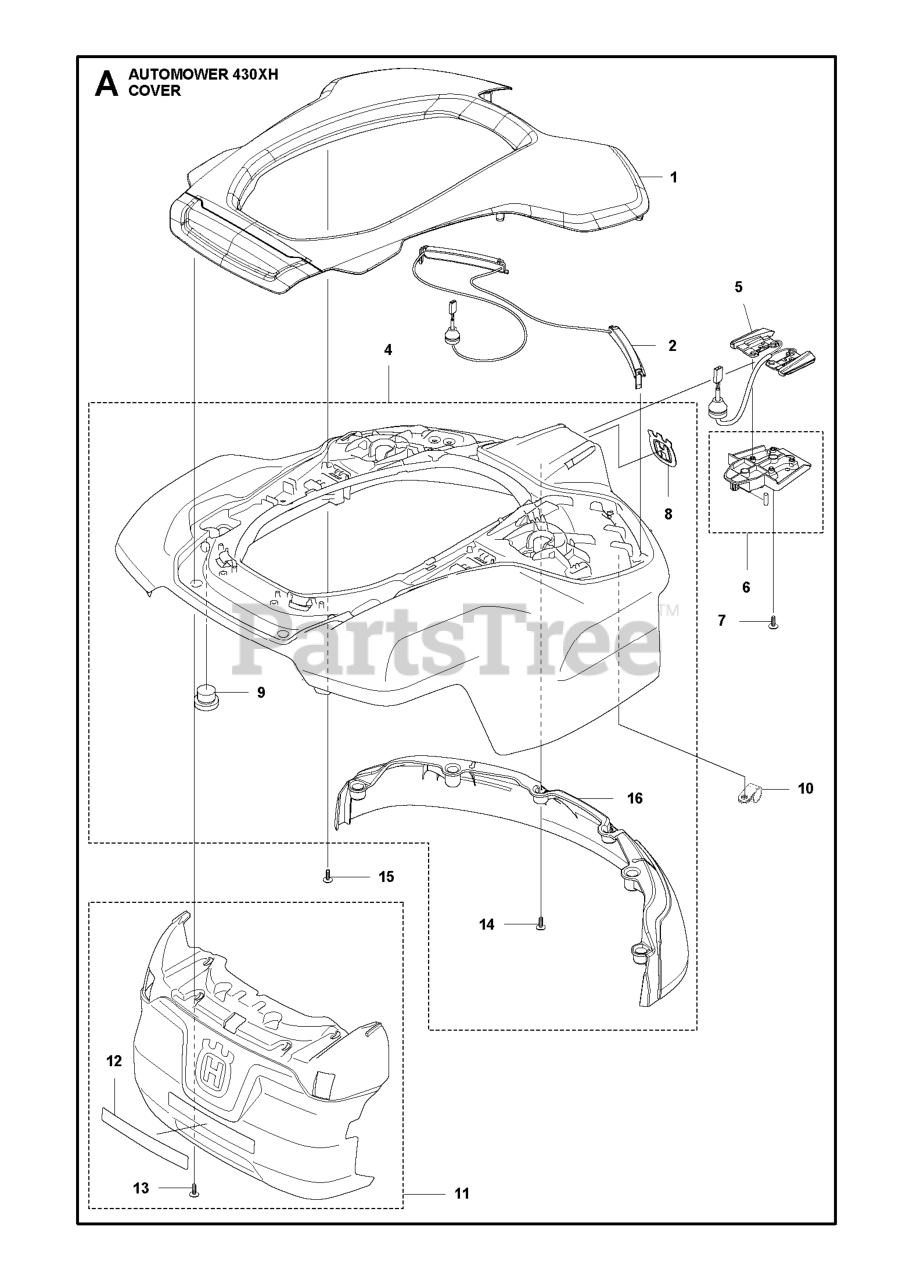

COVER Parts Diagram

  • Title

4

Husqvarna 596485401

BODY ASSY 430XH, 450XH

Note: High-Cut

$398.99

$

Usually ships in 3-10 days

0

7

Husqvarna 575543314

SCREW 14MM

$3.49

$

In Stock, Qty 11

0

9

Husqvarna 580526801

CAP SNAPLOC

Note: Cap Snaploc

$5.99

$

In Stock, only 3 left!

0

14

Husqvarna 574450101

SCREW ITXPANT

Note: Front Bumper

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 590877001

BODY KIT GREY 430X 2018+

Note: Top Cover Grey

$

$

Not available

13

Husqvarna 574450101

SCREW ITXPANT

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 587423501

DECAL HUSQVARNA CROWN HEIGHT 5

Note: Decal Crown

$9.49

$

Usually ships in 3-10 days

0

11

Husqvarna 596489701

BUMPER ASSY 430XH,450XH,550H

$74.99

$

Usually ships in 3-10 days

0

1

Husqvarna 590877002

BODY KIT WHITE 430X 2018+

Note: Top Cover White

$

$

Not available

12

Husqvarna 586359701

LABEL WARNING P15

Note: Label Warning

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 501610601

CLAMP P-CLIP

Note: Clips

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 501065101

WIRING ASSY LED

Note: LED Lights

$96.99

$

Usually ships in 3-10 days

0

15

Husqvarna 574450101

SCREW ITXPANT

Note: Top Cover

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 585539204

CABLE ASSY CHARGING PLATE
(Superseded to 531144701)

Note: Charging Plate Wiring

$51.99

$

Usually ships in 3-10 days

0

16

Husqvarna 593117401

BUMPER FRONT

$102.99

$

Usually ships in 3-10 days

0

6

Husqvarna 596489901

HOLDER ASSY 430XH, 450XH

$20.99

$

In Stock, only 1 left!

0

1

Husqvarna 590877003

BODY KIT ORANGE 430X 2018+

Note: Top Cover Orange

$

$

Not available
