431 (190-431-100) - Cub Cadet Disconnect Clutch Kit Disconnect Clutch Kit Parts Diagram

Disconnect Clutch Kit

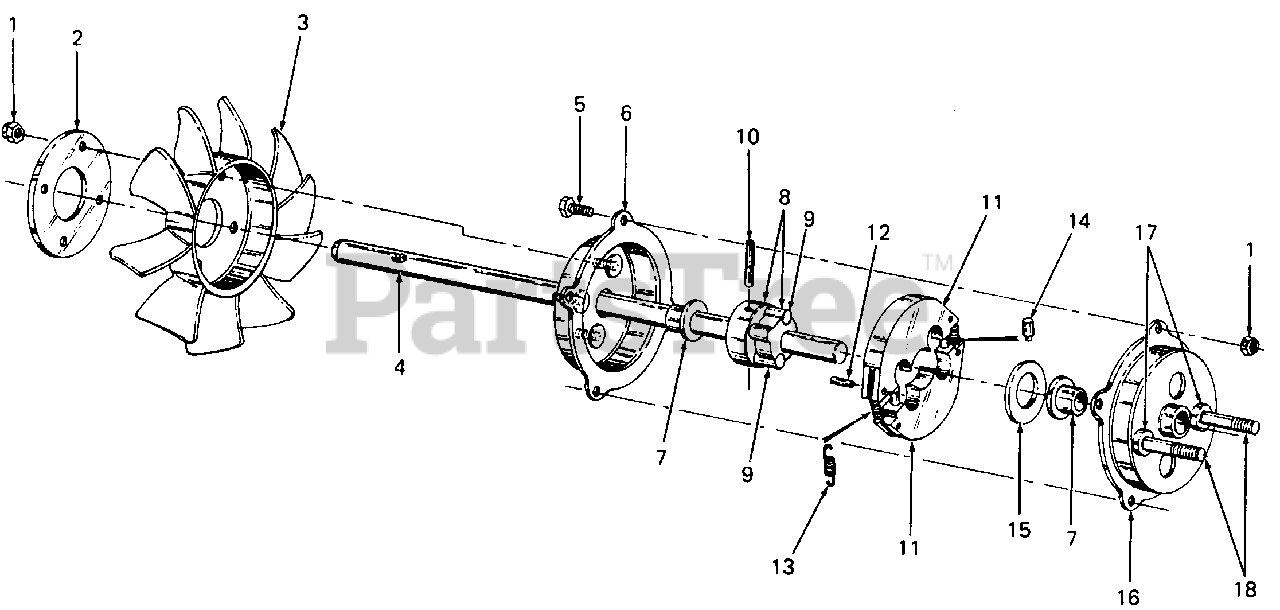

Disconnect Clutch Kit Parts Diagram

  • Title

1

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$3.74

$

In Stock, only 2 left!

0

2

Cub Cadet 703-1415

Spacer, Fan

$

$

Not available

3

Cub Cadet 703-1434

Fan, Cooling
(Superseded to 903-1434)

$

$

Not available

4

Cub Cadet 738-3066

Shaft, Drive

$

$

Not available

Cub Cadet 715-3004

Pin, Spirol Spring, 1/8 Dia X 1.25 Lg

$

$

Not available

Cub Cadet 715-3005

Pin, Spirol Spring, 3/8 Dia X 1.75 Lg
(Superseded to 915-0125)

$10.11

$

Usually ships in 5-10 days

0

5

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .50 Lg GR5

$3.71

$

In Stock, Qty 16

0

6

Cub Cadet 703-1430

Cover Assy, Clutch

$

$

Not available

7

Cub Cadet 748-3022

Bearing, Flange

$

$

Not available

8

Cub Cadet 703-1477

Hub Assy, Clutch

Note: [Includes Ref No. 9 (Qty 2)]

$

$

Not available

9

Cub Cadet 731-3067

Damper

$

$

Currently unavailable

10

Cub Cadet 715-3035

Pin, Slotted Roll, 1/4 Dia X 2.25 Lg

$

$

Not available

11

Cub Cadet 703-1433

Shoe Assy, Clutch

Note: [Includes Ref No. 12 (Qty 2) & Ref No. 14)

$

$

Not available

12

Cub Cadet 715-3013

Pin, Spirol Spring, 1/8 Dia X 5/8 Lg

$

$

Not available

13

Cub Cadet 732-3052

Spring, Extension, .31 Dia X .85 Lg

$

$

Not available

14

Cub Cadet 731-3068

Bumper

$

$

Not available

15

Cub Cadet 736-0188

Washer, Flat, .760 X 1.49 X .06 Thk HDN

$3.45

$

In Stock, Qty 20+

0

16

Cub Cadet 703-1428

Housing, Clutch

$

$

Not available

Cub Cadet 779-3417

Label, Clutch Dust

$

$

Not available

17

Cub Cadet 711-3225

Spacer, .385 X .88 X .25 Lg

$

$

Not available

18

Cub Cadet 710-3174

Bolt, Ribbed Neck, 3/8-24 X 1.5 Lg GR5

$

$

Not available

Cub Cadet 736-0300

Washer, Flat, .385 X .87 X .06 Thk
(Superseded to 936-0300)

$3.63

$

In Stock, Qty 20+

0

Cub Cadet 712-3054

Nut, Hex Top Lock, 3/8-24 GR5

$3.56

$

In Stock, Qty 20+

0
