433 (190-433-100) - Cub Cadet Rear PTO Kit PTO Kit Parts Diagram

Rear PTO Kit

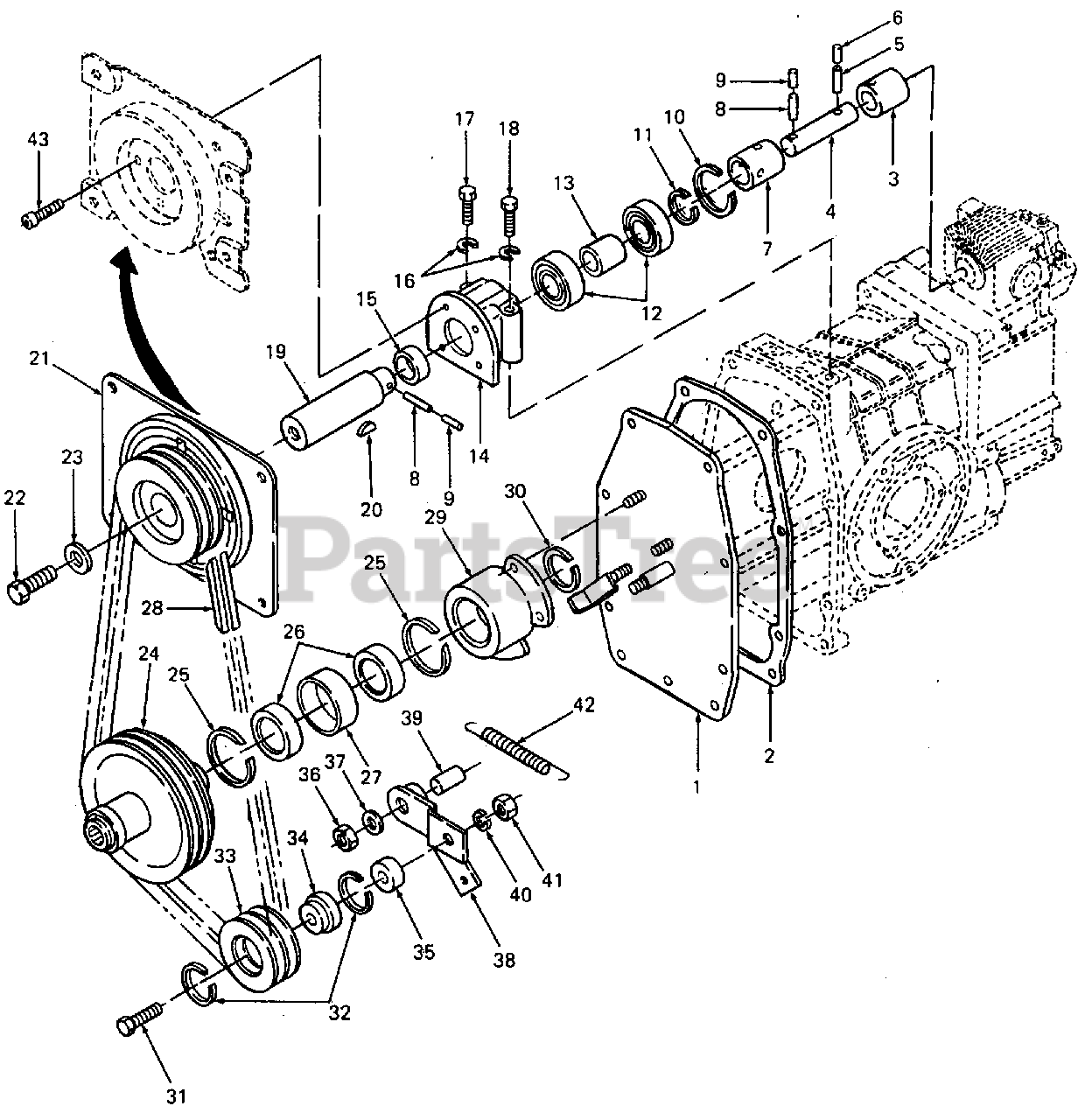

PTO Kit Parts Diagram

  • Title

1

Cub Cadet 703-0913

Plate Assy, Rear Cover

$

$

Not available

2

Cub Cadet 721-3015

Gasket, Rear Cover Plate
(Superseded to 921-3015)

$15.99

$

In Stock, Qty 17

0

3

Cub Cadet 717-3023

Coupling, Spline

$

$

Not available

4

Cub Cadet 738-3024

Shaft, PTO Intermediate

$

$

Not available

5

Cub Cadet 715-3022

Pin, Slotted Spring, 3/8 Dia X 1.5 Lg

$

$

Not available

6

Cub Cadet 715-3024

Pin, Slotted Spring, 7/32 Dia X 1.5 Lg

$

$

Not available

7

Cub Cadet 711-3088

Coupling

$

$

Not available

8

Cub Cadet 715-3020

Pin, Slotted Spring, 3/8 Dia X 2.0 Lg

$

$

Not available

9

Cub Cadet 715-3023

Pin, Slotted Spring, 7/32 Dia X 2.0 Lg

$

$

Not available

10

Cub Cadet 716-3012

Ring, Internal Snap

$

$

Not available

11

Cub Cadet 716-3013

Ring, External Snap

$

$

Not available

12

Cub Cadet 741-0301

Bearing, Ball
(Superseded to 941-0301)

$49.99

$

In Stock, Qty 5

0

13

Cub Cadet 750-3011

Spacer, Shaft

$

$

Not available

14

Cub Cadet 719-3028

Housing, Rear Clutch Bearing

$

$

Not available

15

Cub Cadet 750-3012

Spacer, Rear PTO Shaft

$32.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3118

Bolt, Hex Patch, 3/8-16 X 1.0 Lg GR5

$5.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-3066

Screw, Hex Cap, 3/8-16 X 2.75 Lg GR5

$5.49

$

In Stock, Qty 9

0

19

Cub Cadet 738-3026

Shaft, Rear PTO Clutch

$

$

Not available

20

Cub Cadet 714-3013

Key, #15 Woodruff, 1/4 X 1.0

$

$

Not available

21

Cub Cadet 717-3024

Clutch Assy, PTO

$

$

Not available

22

Cub Cadet 710-3094

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR8
(Superseded to 710-3094A)

$3.99

$

In Stock, only 2 left!

0

23

Cub Cadet 736-3053

Washer, Flat, .406 ID X 1.5 OD X .094 Thk

$

$

Not available

24

Cub Cadet 756-3018

Hub Assy, Double Pulley

$

$

Not available

25

Cub Cadet 716-3009

Ring, Internal Snap

$

$

Not available

26

Cub Cadet 741-3014

Bearing, Ball

$

$

Not available

27

Cub Cadet 750-3013

Spacer, Pulley Housing

$

$

Not available

28

Cub Cadet 754-3012

V-Belt, Matched Set of 2
(Superseded to 954-3012)

$

$

Not available

29

Cub Cadet 719-3029

Housing, Rear Pulley

$

$

Not available

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 716-3010

Ring, External Snap

$

$

Not available

31

Cub Cadet 710-3071

Screw, Hex Cap, 1/2-13 X 2.0 Lg GR8

$

$

Not available

32

Cub Cadet 716-3011

Ring, Internal Snap

$

$

Not available

33

Cub Cadet 756-3019

Pulley, Idler

$

$

Not available

34

Cub Cadet 741-3015

Bearing

$

$

Not available

35

Cub Cadet 750-3014

Spacer, Pipe

$

$

Not available

36

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 736-3052

Washer, Flat, .406 ID X 1.0 OD X .105 Thk

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 703-0451

Bracket Assy, Idler Pulley

$

$

Not available

39

Cub Cadet 748-3005

Bushing, Idler Pulley

$

$

Not available

40

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 712-3040

Nut, Hex, 1/2-13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 732-3027

Spring, Rear PTO

$

$

Not available

43

Cub Cadet 710-3069

Screw, Hex Socket Hd, 1/4-20 X .50 Lg

$4.49

$

In Stock, Qty 13

0
