435 e - Husqvarna Chainsaw (2008-05) Cylinder 435/435e Parts Diagram

Chainsaw

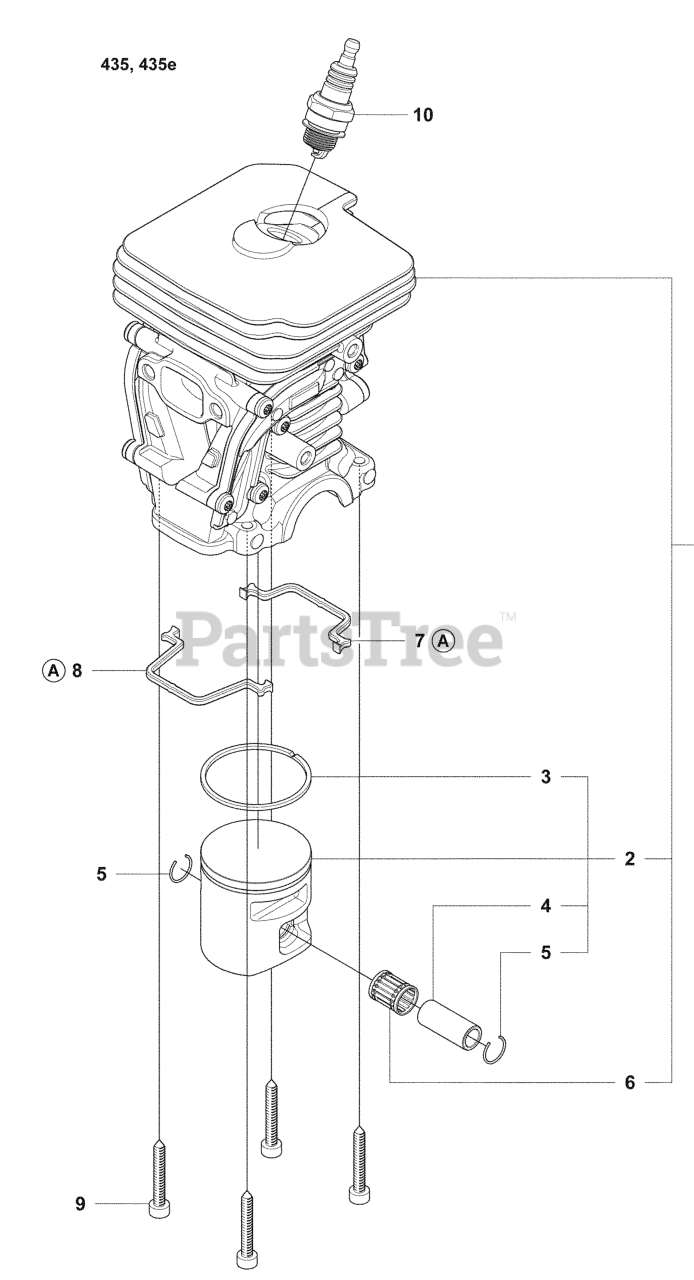

Cylinder 435/435e Parts Diagram

  • Title

1

Husqvarna 504735101

ASSY, CYLINDER 435 & 435E
(Superseded to 504735105)

Note: Cylinder assy

$125.99

$

Usually ships in 3-10 days

0

2

Husqvarna 502625001

PISTON ASSY 435 435E
(Superseded to 502625005)

Note: Piston assy

$26.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544405901

PISTON RING

Note: Piston ring

$11.99

$

In Stock, only 2 left!

0

4

Husqvarna 544406001

PISTON PIN

Note: Piston pin

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537399901

CIRCLIP
(Superseded to 737441000)

Note: Circlip

$3.49

$

In Stock, Qty 10

0

6

Husqvarna 503414101

SUPPORT BUSHING

Note: Needle bearing

$13.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544396001

GASKET

Note: Gasket, cylinder rear

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 544395901

GASKET

Note: Gasket, cylinder front

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 725533355

SCREW MC6S 5X25

Note: Screw

$3.49

$

In Stock, only 1 left!

0

10

Husqvarna 503235111

SPARK PLUG M14X1.25 NGK BPMR7A

Note: Spark plug

$3.99

$

In Stock, Qty 20+

0
