435 e - Husqvarna Chainsaw (SN: 20090400001 - 20102300000) CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

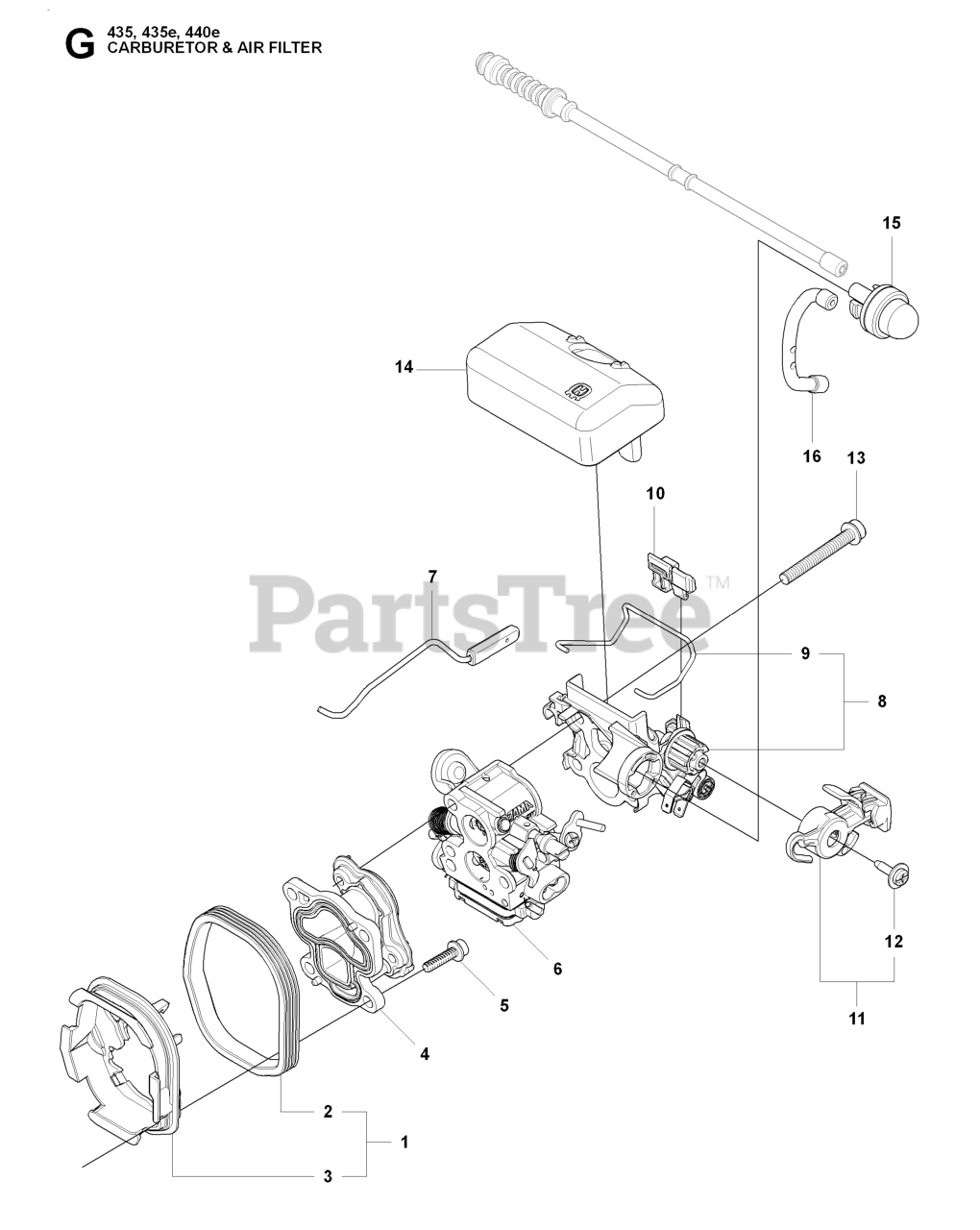

CARBURETOR & AIR FILTER Parts Diagram

  • Title

3

Husqvarna 504724401

INSULATION WALL
(Superseded to 504724701)

Note: Inulation wall plastic

$5.99

$

In Stock, Qty 12

0

2

Husqvarna 504724501

INSULATION WALL
(Superseded to 504724701)

Note: Insulation wall rubber

$5.99

$

In Stock, Qty 12

0

1

Husqvarna 504724701

INSULATION WALL

Note: Insulation wall assy

$5.99

$

In Stock, Qty 12

0

8

Husqvarna 544976401

FILTER HOLDER
(Superseded to 544976402)

Note: Filter holder assy

$9.49

$

Usually ships in 3-10 days

0

9

Husqvarna 544392601

SHACKLE

Note: Shackle

$5.99

$

In Stock, only 1 left!

0

12

Husqvarna 544976601

SCREW

Note: Screw

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 503200240

SCREW

Note: Screw

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 504712501

GUIDE

Note: Guide sliding shoe

$4.99

$

In Stock, Qty 9

0

4

Husqvarna 504201201

INLET PIPE
(Superseded to 504201202)

Note: Inlet pipe

$56.99

$

In Stock, Qty 13

0

14

Husqvarna 544805402

AIR FILTER
(Superseded to 599729401)

Note: Air filter assy (44 micron)

$10.99

$

In Stock, only 3 left!

0

5

Husqvarna 503200216

SCREW

Note: Screw

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 503936601

AIR PURGE BUBBLE

Note: Air purge

$24.99

$

In Stock, Qty 20+

0

11

Husqvarna 544844302

CONTROL

Note: Control assy

$7.99

$

In Stock, Qty 10

0

14

Husqvarna 544805403

AIR FILTER
(Superseded to 599729402)

Note: Air filter assy (felt)

$

$

Not available

16

Husqvarna 544401901

HOSE

Note: Hose, airpurge suction

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 506450501

CARBURETOR
(Superseded to 531215501)

Note: Carburettor

$51.99

$

In Stock, Qty 10

0

7

Husqvarna 544284401

THROTTLE ROD ASSY

Note: Throttle rod assy

$4.99

$

In Stock, only 2 left!

0
