435 e - Husqvarna Chainsaw (SN: 20090400001 - 20102300000) HANDLE & CONTROLS Parts Diagram

Chainsaw

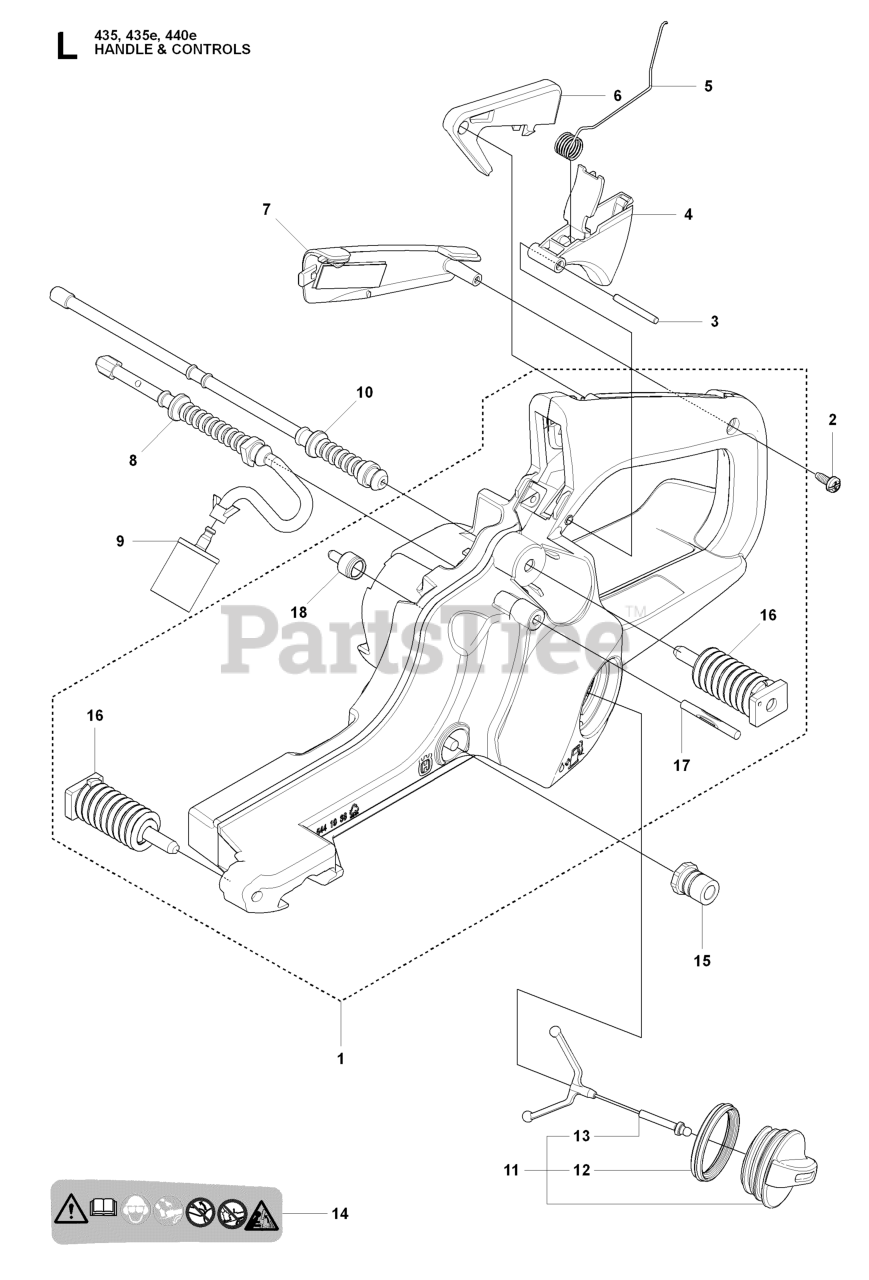

HANDLE & CONTROLS Parts Diagram

  • Title

5

Husqvarna 544099901

SPRING

Note: Spring

$7.49

$

In Stock, only 3 left!

0

14

Husqvarna 544375001

LABEL

Note: Decal warning

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 544193801

FUEL TANK
(Superseded to 544193813)

Note: Fuel tank assy

$59.99

$

In Stock, Qty 10

0

17

Husqvarna 721126339

GROOVED PIN

Note: Grooved pin

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 503578901

TANK LOCK

Note: Holder

$7.49

$

In Stock, Qty 5

0

11

Husqvarna 544111201

TANK CAP ASSY
(Superseded to 544111203)

Note: Tank cap assy

$8.49

$

In Stock, Qty 8

0

6

Husqvarna 544284101

THROTTLE LOCKOUT
(Superseded to 579239401)

Note: Throttle lockout

$4.99

$

In Stock, Qty 5

0

7

Husqvarna 544284901

HANDLE INSERT

Note: Handle insert

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 544128601

FUEL HOSE
(Superseded to 544128604)

Note: Fuel hose

$14.99

$

In Stock, Qty 7

0

10

Husqvarna 544129701

RP RETURN HOSE
(Superseded to 577535101)

Note: Return hose

$20.99

$

In Stock, only 2 left!

0

9

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

Note: Filter mix

$10.99

$

In Stock, Qty 20+

0

15

Husqvarna 501007601

LATERAL SUPPORT

Note: Lateral support

$3.49

$

In Stock, only 2 left!

0

2

Husqvarna 503212810

SCREW

Note: Screw

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 504795601

ANTIVIBRATION ELEMENT

Note: Antivibration element

$9.99

$

Usually ships in 3-10 days

0

3

Husqvarna 720182520

PIN

Note: Pin

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 537215001

SEALING
(Superseded to 589241101)

Note: Sealing

$7.49

$

In Stock, only 4 left!

0

4

Husqvarna 544968501

THROTTLE CONTROL

Note: Throttle control

$9.99

$

In Stock, Qty 12

0

18

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

Note: Fuel tank vent

$23.99

$

In Stock, Qty 13

0
