435 e - Husqvarna Chainsaw (SN: 20090400001 - 20102300000) STARTER Parts Diagram

Chainsaw

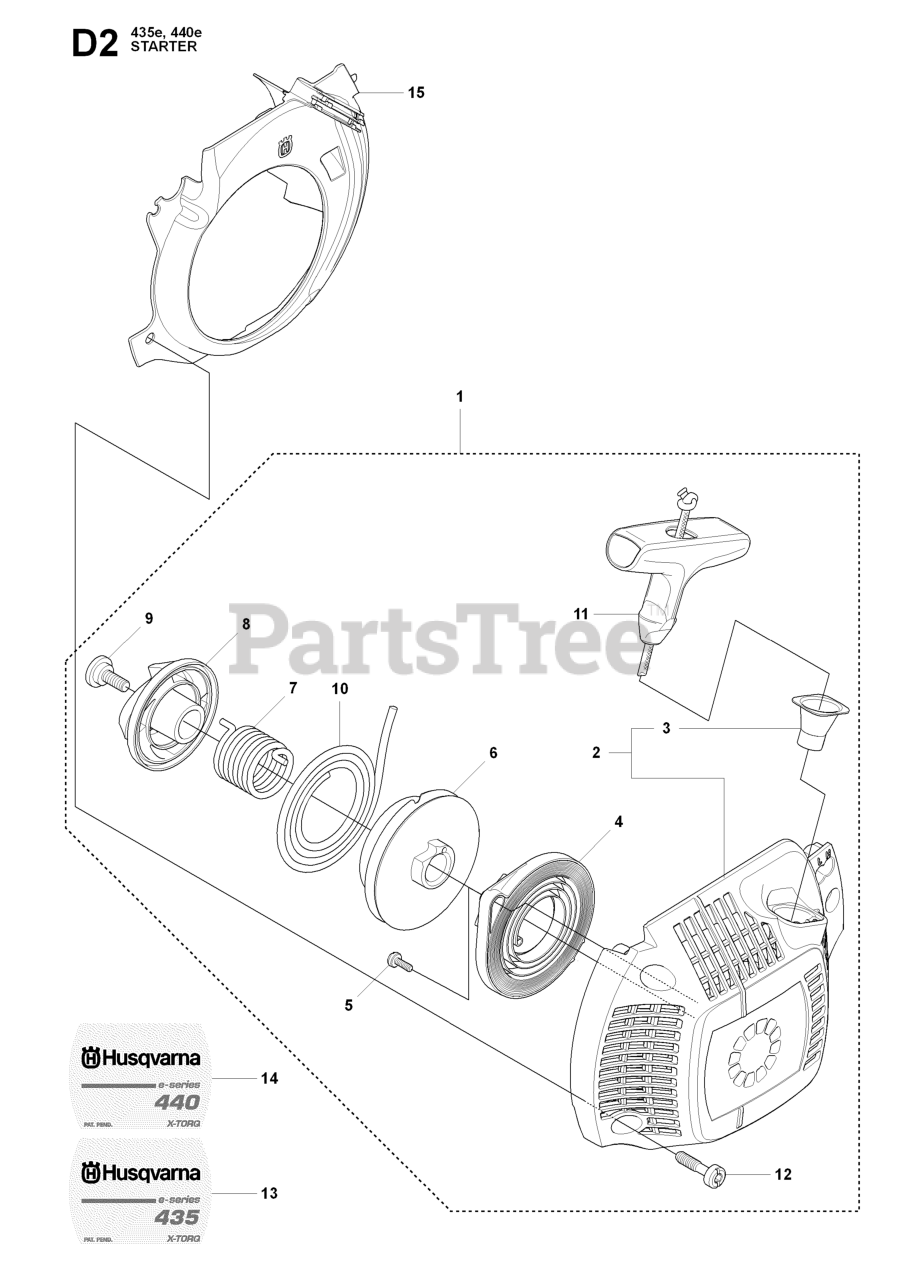

STARTER Parts Diagram

  • Title

11

Husqvarna 537232501

HANDLE

Note: Starthandtag

$13.99

$

In Stock, only 3 left!

0

5

Husqvarna 503212810

SCREW

Note: Screw CCRPANT

$3.49

$

In Stock, Qty 11

0

15

Husqvarna 544197101

%COOLING AIR CONDUCTOR
(Superseded to 544197102)

Note: Cooling air conductor

$6.99

$

In Stock, only 2 left!

0

4

Husqvarna 540057501

SPRING CASSETTE ASSY
(Superseded to 540057502)

Note: Spring casette assy

$13.99

$

In Stock, only 1 left!

0

2

Husqvarna 544286901

STARTER HOUSING

Note: Starter housing

$22.99

$

In Stock, only 1 left!

0

3

Husqvarna 537283201

SLEEVE

Note: Reinforcement sleeve

$7.99

$

In Stock, only 2 left!

0

7

Husqvarna 505647301

SPRING

Note: Spring

$5.99

$

In Stock, only 2 left!

0

9

Husqvarna 537426601

SCREW

Note: Screw

$3.49

$

In Stock, Qty 12

0

14

Husqvarna 544463601

LABEL 440 STARTER

Note: Label, Starter

$3.49

$

In Stock, Qty 6

0

1

Husqvarna 544287002

STARTER ASSY

$31.99

$

Usually ships in 3-10 days

0

10

Husqvarna 505305125

STARTER ROPE

Note: Starter cord

$9.49

$

In Stock, Qty 18

0

12

Husqvarna 503217321

SCREW

Note: Screw CIHSCTO

$1.49

$

In Stock, Qty 20+

0

6

Husqvarna 537423201

STARTER PULLEY

Note: Starter pulley

$13.99

$

In Stock, only 1 left!

0

13

Husqvarna 544463602

LABEL 435 STARTER

Note: Label, Starter

$3.49

$

In Stock, Qty 5

0

8

Husqvarna 537423301

DRIVER

Note: Driver

$13.99

$

In Stock, Qty 13

0
