435 - Husqvarna Chainsaw (SN: 20090400001 - 20102300000) IGNITION SYSTEM Parts Diagram

Chainsaw

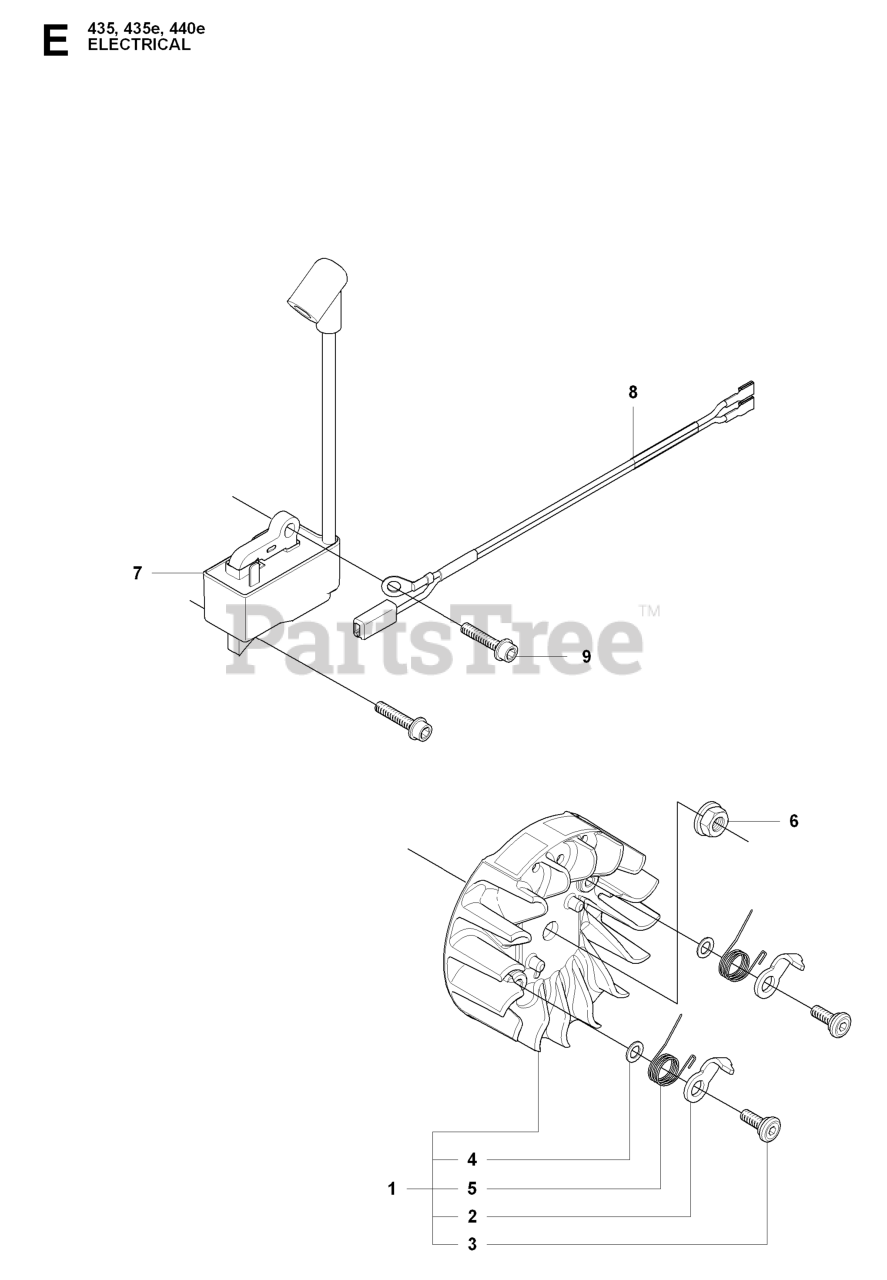

IGNITION SYSTEM Parts Diagram

  • Title

7

Husqvarna 504571401

IGNITION MODULE
(Superseded to 573935702)

Note: Ignition module

$77.99

$

In Stock, Qty 19

0

6

Husqvarna 503220401

NUT W/ WASHER

Note: Nut

$5.49

$

In Stock, Qty 11

0

2

Husqvarna 537245601

PAWL

Note: Starter pawl

$5.99

$

In Stock, only 2 left!

0

9

Husqvarna 503200220

SCREW

Note: Screw IHSCFM

$5.49

$

In Stock, Qty 8

0

8

Husqvarna 510101401

WIRING ASSY

Note: Wiring assy

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501819903

SCREW

Note: Screw

$7.49

$

In Stock, only 2 left!

0

1

Husqvarna 544874201

%FLYWHEEL ASSY
(Superseded to 544874204)

Note: Flywheel assy

$53.99

$

In Stock, only 3 left!

0

4

Husqvarna 503230042

WASHER

Note: Washer steel

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 503783201

%SPRING, STARTER CATCH
(Superseded to 529271101)

Note: Spring

$3.49

$

In Stock, only 1 left!

0
