435 - Husqvarna Chainsaw CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

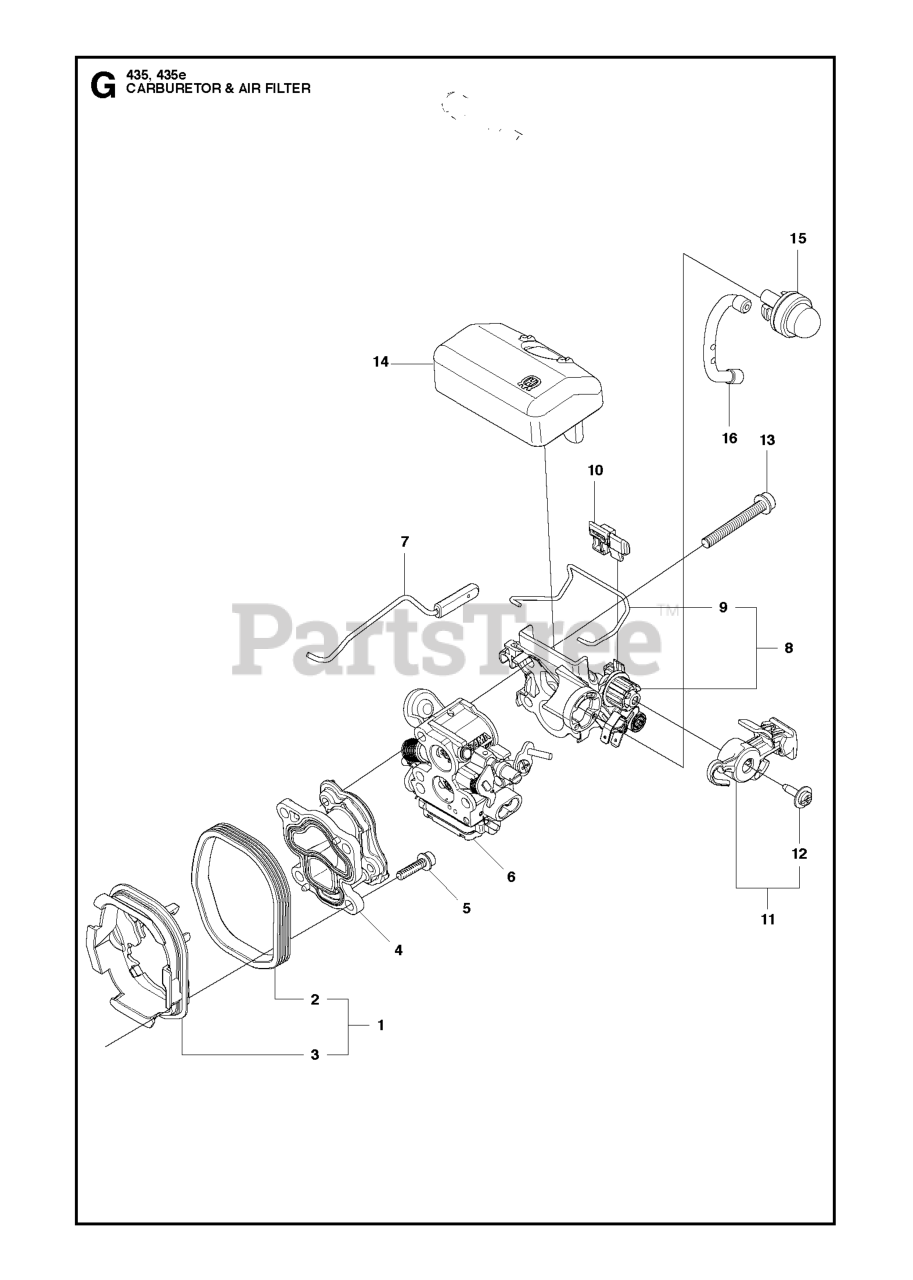

CARBURETOR & AIR FILTER Parts Diagram

  • Title

1

Husqvarna 504724701

INSULATION WALL

$

$

Not available

2

Husqvarna 504724501

INSULATION WALL
(Superseded to 504724701)

$

$

Not available

15

Husqvarna 503936601

AIR PURGE BUBBLE

$25.99

$

In Stock, Qty 20+

0

4

Husqvarna 504201201

INLET PIPE
(Superseded to 504201202)

$47.99

$

In Stock, Qty 9

0

12

Husqvarna 544976601

SCREW

$3.99

$

In Stock, only 1 left!

0

11

Husqvarna 544844302

CONTROL

$8.49

$

In Stock, Qty 6

0

13

Husqvarna 503200240

SCREW

$3.99

$

In Stock, only 2 left!

0

14

Husqvarna 544805402

AIR FILTER
(Superseded to 599729401)

Note: 44 MICRON

$

$

Not available

6

Husqvarna 506450501

CARBURETOR
(Superseded to 531215501)

$59.99

$

In Stock, Qty 20+

0

14

Husqvarna 544805403

AIR FILTER
(Superseded to 599729402)

Note: FELT

$

$

Not available

8

Husqvarna 544976402

ASSY FILTER HOLDER

$

$

Not available

7

Husqvarna 544284401

THROTTLE ROD ASSY

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 504712501

GUIDE

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 544401901

HOSE

$4.99

$

In Stock, Qty 12

0

5

Husqvarna 503200216

SCREW

$3.99

$

In Stock, Qty 11

0

3

Husqvarna 504724401

INSULATION WALL
(Superseded to 504724701)

$

$

Not available

9

Husqvarna 544392601

SHACKLE

$5.99

$

In Stock, only 1 left!

0
