435 X AWD - Husqvarna Automower Robotic Lawn Mower (2020) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

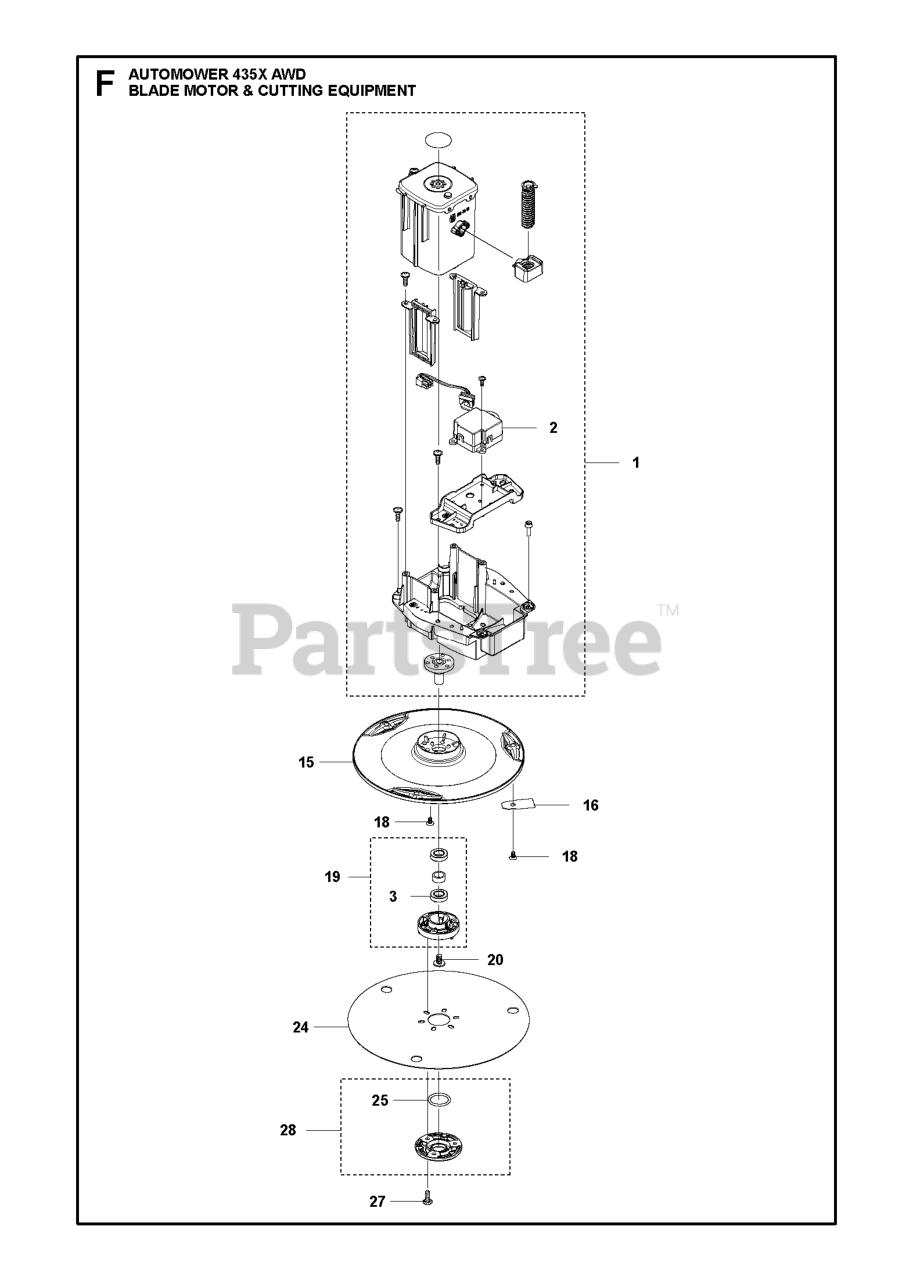

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

16

Husqvarna 577606604

HUS BLADE SET 300 PCS
(Superseded to 596287302)

Note: Long Life Safety Blade, 300 pcs

$

$

Not available

16

Husqvarna 595084401

NEEDS DESCRIPTION
(Superseded to 595084411)

Note: Endurance Blade, 6 pcs

$30.99

$

Usually ships in 3-10 days

0

28

Husqvarna 587449601

COVER KIT BEARING

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 535075703

BALL BEARING 2 RS,TIGHT CLEAR

$6.99

$

In Stock, only 1 left!

0

16

Husqvarna 577864603

HUS BLADE SET 9 PCS
(Superseded to 596287201)

Note: Long Life Safety Blade, Blister Pack 9 pcs

$28.99

$

Usually ships in 3-10 days

0

20

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 17

0

19

Husqvarna 588421702

BEARING HOUSING ASSY

$28.99

$

In Stock, only 4 left!

0

24

Husqvarna 597449901

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 595084403

NEEDS DESCRIPTION
(Superseded to 595084413)

Note: Endurance Blade, 300 pcs

$730.99

$

Usually ships in 3-10 days

0

27

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 595084402

NEEDS DESCRIPTION
(Superseded to 595084412)

Note: Endurance Blade, 45 pcs

$159.99

$

Usually ships in 3-10 days

0

1

Husqvarna 592733701

Cutter

$205.99

$

Usually ships in 3-10 days

0

16

Husqvarna 577606505

HUS BLADE SET 45 PCS
(Superseded to 596287301)

Note: Long Life Safety Blade, 45 pcs

$

$

Not available

15

Husqvarna 597422201

GUARDS
(Superseded to 531177401)

$31.99

$

In Stock, only 1 left!

0

3

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$341.99

$

Usually ships in 3-10 days

0

2

Husqvarna 592735801

Motor

$193.99

$

Usually ships in 3-10 days

0

25

Husqvarna 585297501

O-RING 20X2,5 MM

$4.99

$

In Stock, Qty 10

0

18

Husqvarna 590508701

SCREW HEXAGON SOCKET BUTTON HE

$3.99

$

In Stock, only 3 left!

0
