436 Li - Husqvarna Chainsaw CHAIN BRAKE Parts Diagram

Chainsaw

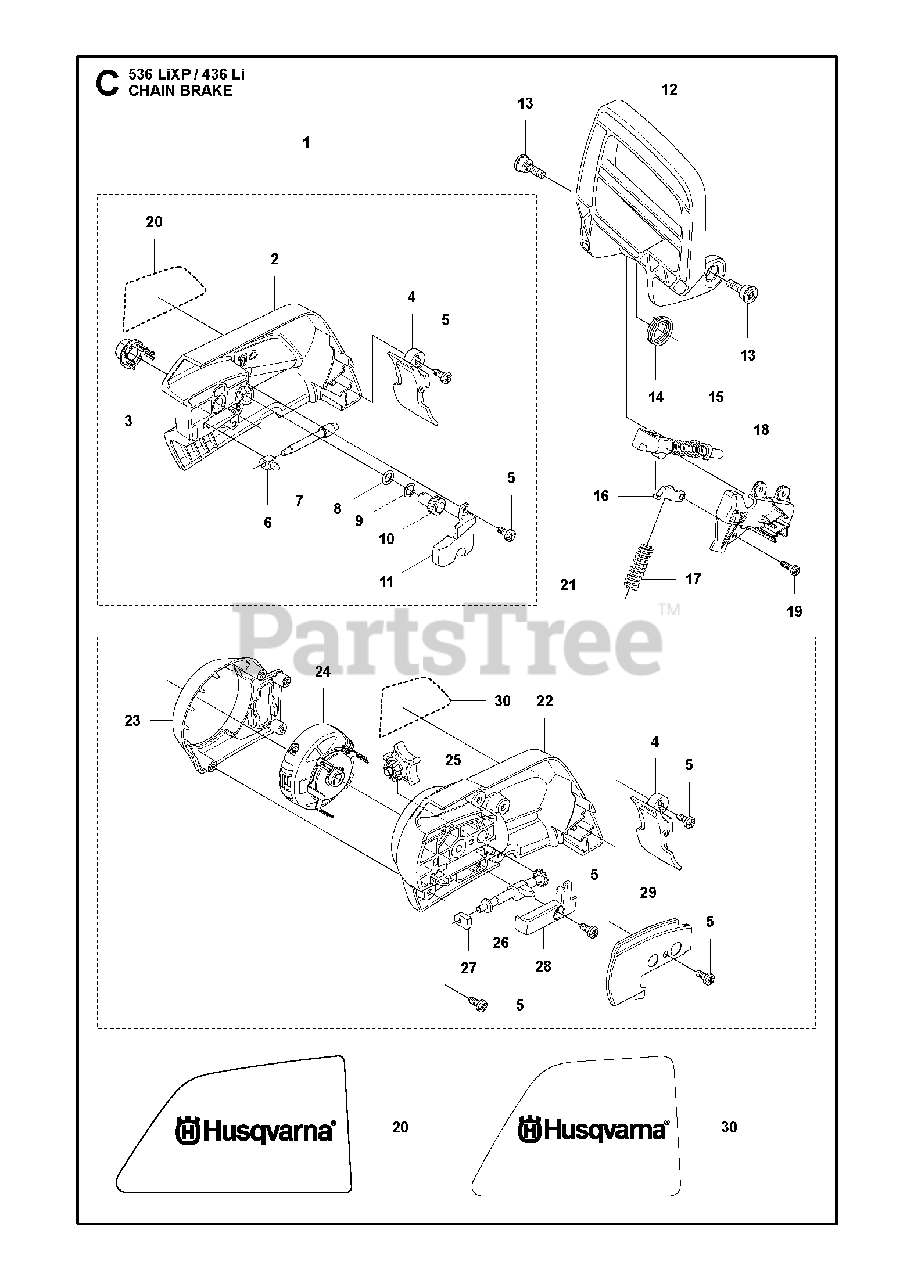

CHAIN BRAKE Parts Diagram

  • Title

1

Husqvarna 576905601

CLUTCH COVER ASSY

Note: 536 LiXP

$52.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576905701

CLUTCH COVER

Note: . 1

$28.99

$

In Stock, only 1 left!

0

3

Husqvarna 505197301

NUT RETAINER ASSY

Note: . 1

$7.49

$

In Stock, Qty 8

0

4

Husqvarna 577722101

CHIP GUARD

Note: . 1 21

$9.49

$

Usually ships in 3-10 days

0

5

Husqvarna 503217072

SCREW

Note: . 1 21

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 501454102

PAWL
(Superseded to 588850301)

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 537397001

SCREW

Note: . 1

$18.99

$

In Stock, Qty 7

0

8

Husqvarna 740480702

O-RING

Note: . 1

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 503230063

WASHER

Note: . 1

$6.49

$

In Stock, Qty 7

0

10

Husqvarna 537079402

WORM WHEEL

Note: . 1

$13.99

$

In Stock, Qty 7

0

11

Husqvarna 505214501

COVER LID

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 576903901

HAND GUARD

$28.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503893001

SCREW

$6.99

$

In Stock, Qty 15

0

14

Husqvarna 577649801

TORSION SPRING

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 577549501

SHAFT ASSY

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 577272001

CATCH

$

$

Not available

17

Husqvarna 576904601

SPRING

$5.99

$

In Stock, only 1 left!

0

18

Husqvarna 577365601

BRACKET

$

$

Not available

19

Husqvarna 503212813

SCREW

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 578228901

DECAL

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 578914201

CLUTCH COVER ASSY LI

Note: 436 Li

$

$

Not available

22

Husqvarna 578790601

CLUTCH COVER

Note: . 21

$

$

Not available

23

Husqvarna 578779401

COVER

Note: . 21

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 537347803

KNOB UNLOSEABLE

Note: . 21

$23.99

$

In Stock, only 2 left!

0

25

Husqvarna 578776501

CHAIN TENSIONER

Note: . 21

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 537392902

CHAIN TENSION SCREW COMPL.

Note: . 21

$7.99

$

Usually ships in 3-10 days

0

27

Husqvarna 525354301

BEARING SLEEVE

Note: . 21

$10.99

$

In Stock, only 1 left!

0

28

Husqvarna 504542801

COVER

Note: . 21

$6.99

$

In Stock, Qty 9

0

29

Husqvarna 578778201

WEAR PLATE

Note: . 21

$9.49

$

Usually ships in 3-10 days

0

30

Husqvarna 578915801

DECAL

Note: . 21

$

$

Not available
