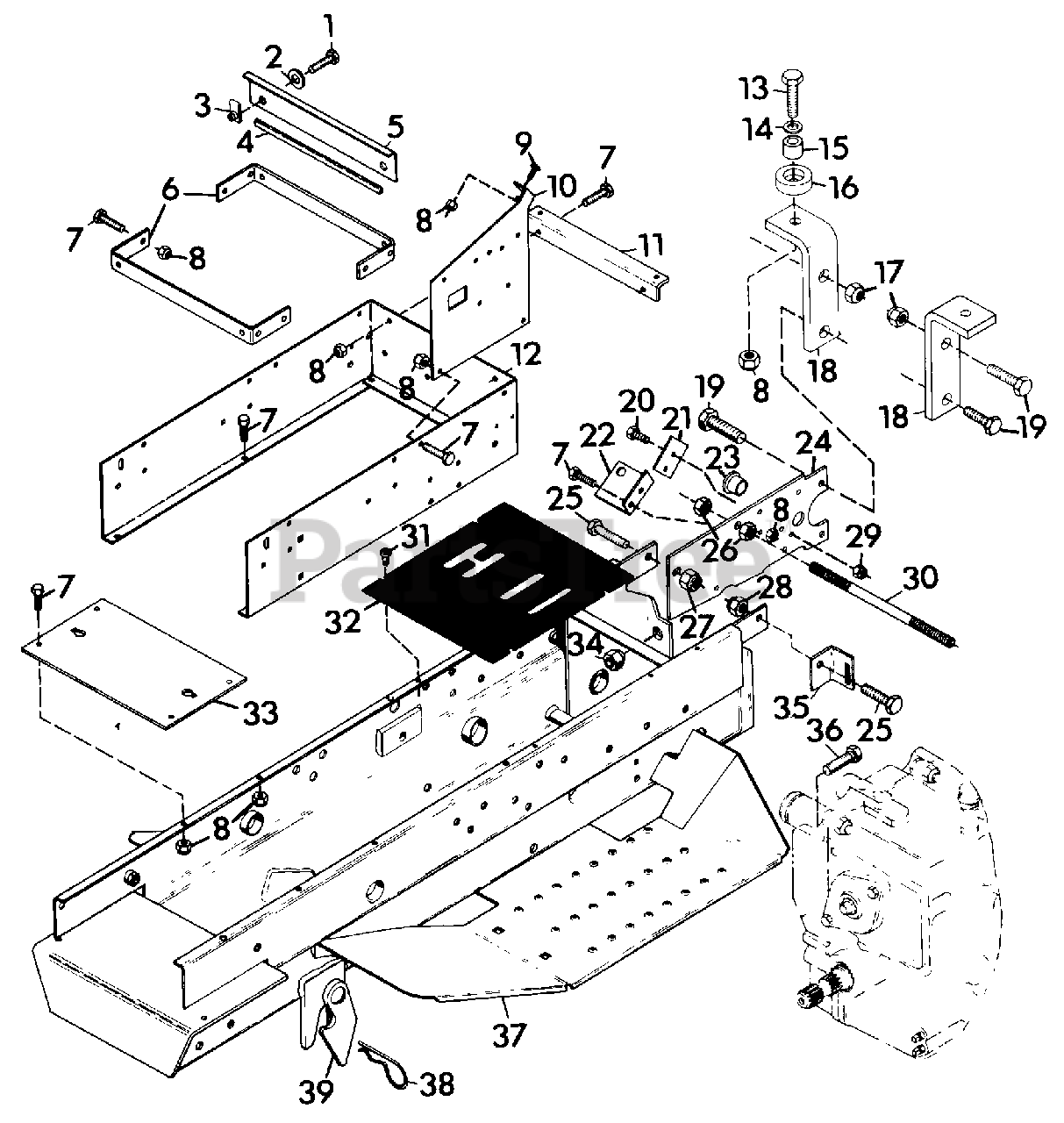

43780 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift FRAME Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

FRAME Parts Diagram

  • Title

1

Gravely 180021

BLT-HEX .25-20X.875
(Superseded to 05934000)

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 032369

NUT-RTNR .25-20X.56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 014897

MOULDING
(Superseded to 08658300)

$

$

Not available

5

Gravely 022421

BRKT,FORWARD TANK
(Superseded to 08724600)

$

$

Not available

6

Gravely 040141

BRKT,FUEL TANK
(Superseded to 08746600)

$

$

Not available

7

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

8

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

9

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 040449

BR,INSTRUMENT PANEL L.H.
(Superseded to 08748200)

$

$

Not available

10

Gravely 040450

BR,INSTRUMENT PANEL R.H.
(Superseded to 08748300)

$

$

Not available

11

Gravely 040548

BRKT,INSTRUMENT PANEL
(Superseded to 08749300)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 041240

SPRT,INSTRUMENT
(Superseded to 08754000)

$

$

Not available

13

Gravely 180024

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

14

Gravely 120386

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 034723

BSHG-SLV .265X.375X.250 ST
(Superseded to 08708300)

$13.99

$

Usually ships in 4-12 days

0

16

Gravely 024357

BMPR,SEAT
(Superseded to 07521800)

$

$

Not available

17

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 024358

BRKT,REAR HITCH
(Superseded to 21173300)

$

$

Not available

19

Gravely 180177

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

20

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 040822

BRKT,BUSHING LOCK
(Superseded to 08752000)

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 040184

BRKT,INTERLOCK SWITCH
(Superseded to 08778400)

$

$

Not available

23

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

24

Gravely 040183

PLT,FWD-REV MTG.
(Superseded to 08793253)

$9.49

$

Usually ships in 4-12 days

0

25

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 120378

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

27

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

29

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

30

Gravely 040207

ROD,FRAME EXT BRACE
(Superseded to 08655000)

$

$

Not available

31

Gravely 167260

SCR-TAP .250-20X.625 P/HD
(Superseded to 07410400)

$2.49

$

In Stock, only 2 left!

0

32

Gravely 040140

CONTROL PANEL W/ DECAL (MAN)
(Superseded to 58700900)

$

$

Not available

32

Gravely 039872

KIT, PNL BRAKE LOCK W/DECAL
(Superseded to 58702400)

$

$

Not available

33

Gravely 039839

TRAY,BATTERY
(Superseded to 21250300)

$

$

Not available

34

Gravely 011058

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 018362

BRKT,FENDER HOLD-UP
(Superseded to 08778500)

$11.99

$

Usually ships in 4-12 days

0

36

Gravely 181700

BLT-HEX .50-20X1.50 YWZC
(Superseded to 05968600)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 040918

WLDMT,FRAME
(Superseded to 08766000)

$

$

Not available

38

Gravely 010405

PIN-HAIR-INT .15X2.937 YWZC
(Superseded to 06714000)

$3.49

$

In Stock, only 1 left!

0

39

Gravely 021087

WLDMT,MOWER BRACKET R.H.
(Superseded to 08722200)

$

$

Not available

39

Gravely 021088

WLDMT,MOWER BRACKET L.H.
(Superseded to 08722300)

$

$

Not available
