43780 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift Hydraulic SYSTEM Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

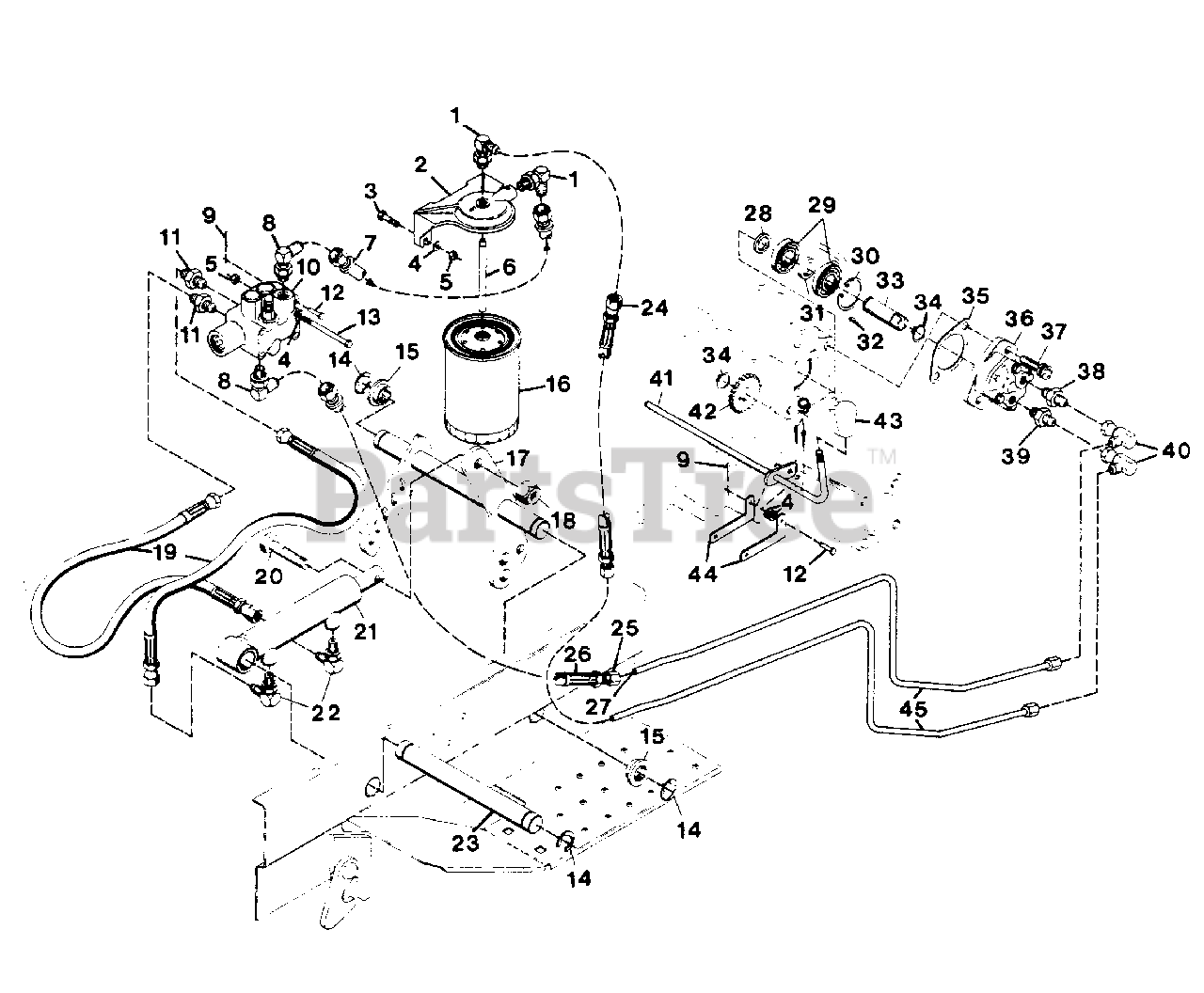

Hydraulic SYSTEM Parts Diagram

  • Title

1

Gravely 040723

ADPT 2503-4-6 OR 6801-6-4
(Superseded to 08936400)

$

$

Not available

2

Gravely 040259

BRKT,OIL FILTER
(Superseded to 21252800)

$

$

Not available

3

Gravely 180022

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

4

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

6

Gravely 040260

TUBE,0IL PICKUP
(Superseded to 08934500)

$

$

Not available

7

Gravely 039847

HOSE,HYD VALVE TO TANK
(Superseded to 08811300)

$40.99

$

Usually ships in 4-12 days

0

8

Gravely 018828

FTG, 90 9/16 MOR X 9/16 MJIC
(Superseded to 00313270)

Note: (P-H #2503-6-6)

$9.99

$

Usually ships in 4-12 days

0

9

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

10

Gravely 018825

VLV,HYDRAULIC
(Superseded to 08901100)

$

$

Not available

11

Gravely 021286

ADPT 0503-4-4
(Superseded to 08801500)

Note: (P-H #0503-4-4)

$6.49

$

Usually ships in 4-12 days

0

12

Gravely 040970

PIN-CLEV .189X1.0
(Superseded to 06810100)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 180050

BLT-HEX .25-20X2.75 GR5 YWZC
(Superseded to 05969900)

$

$

Not available

14

Gravely 011112

RG-RTNG-EXT .835X.056
(Superseded to 05716000)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

16

Gravely 040172

FILTER,SPIN-ON
(Superseded to 08933300)

$

$

Not available

17

Gravely 018822

WLDMT,LIFT LVR SHFT
(Superseded to 08708700)

$

$

Not available

18

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

19

Gravely 018845

HOSE,HYD 14.5 LG
(Superseded to 08709000)

$35.99

$

Usually ships in 4-12 days

0

20

Gravely 180181

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 1 left!

0

21

Gravely 031284

CYL,HYD.
(Superseded to 08727500)

$

$

Not available

22

Gravely 018826

ADPT 2503-4-4
(Superseded to 08800700)

Note: (P-H #2503-4-4)

$25.99

$

Usually ships in 4-12 days

0

23

Gravely 018830

SHFT,HYD. CYL.
(Superseded to 08708900)

$

$

Not available

24

Gravely 039849

HOSE,HYD
(Superseded to 21250600)

$

$

Not available

25

Gravely 040823

NUT,FEMALE FLARELESS
(Superseded to 20679900)

$

$

Not available

26

Gravely 039848

HOSE,HYD PUMP TO VALVE
(Superseded to 21250500)

$

$

Not available

27

Gravely 040824

SLEEVE,FEMALE FLARELESS
(Superseded to 20680000)

$

$

Not available

28

Gravely 018807

BUSH.,S.620X.750X.276 ST
(Superseded to 08730600)

$

$

Not available

29

Gravely 012626

BRG-BALL .590X1.38X.433
(Superseded to 05429000)

$

$

Not available

30

Gravely 018799

RG-RTNG-INT 1.375X.050
(Superseded to 05705500)

$

$

Not available

31

Gravely 018798

BUSH.,S.620X.750X.364 ST
(Superseded to 08729000)

$

$

Not available

32

Gravely 271089

KEY-WDRF .13X.38 HRD
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

33

Gravely 018797

SHFT,HYD PUMP
(Superseded to 08787300)

$

$

Not available

34

Gravely 018809

RG-RTNG-EXT .550X.035
(Superseded to 05712800)

$

$

Not available

35

Gravely 018422

GSKT,COVER PLATE
(Superseded to 08702700)

$16.99

$

In Stock, only 1 left!

0

36

Gravely 018813

PUMP,HYDRAULIC
(Superseded to 08900900)

$

$

Not available

37

Gravely 426370

SCR-CAP .38-16 HEX S/HD
(Superseded to 05933300)

$

$

Not available

38

Gravely 023206

FTG-ADPTR (0503-8-6)
(Superseded to 07021400)

$28.99

$

Usually ships in 4-12 days

0

39

Gravely 018817

ADPT 0503-10-6
(Superseded to 21121800)

Note: (P-H #0503-10-6)

$23.99

$

Usually ships in 4-12 days

0

40

Gravely 018818

ADPT 3903-6-6
(Superseded to 08901000)

Note: (P-H #3903-6-6)

$21.99

$

Usually ships in 4-12 days

0

41

Gravely 041239

WLDMT,HYD CONTROL ROD
(Superseded to 08753900)

$

$

Not available

42

Gravely 018808

GR,HYD PUMP
(Superseded to 08708500)

$

$

Not available

43

Gravely 032659

KNOB,PTO
(Superseded to 07522900)

$22.99

$

Usually ships in 4-12 days

0

44

Gravely 041237

LIFT LINK
(Superseded to 09065000)

$8.49

$

Usually ships in 4-12 days

0

45

Gravely 039838

LINE,HYD IN
(Superseded to 20663500)

$

$

Not available
