43780 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift NUMBER EIGHT SHAFT - DIFFERENTIAL ASSEMBLY Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

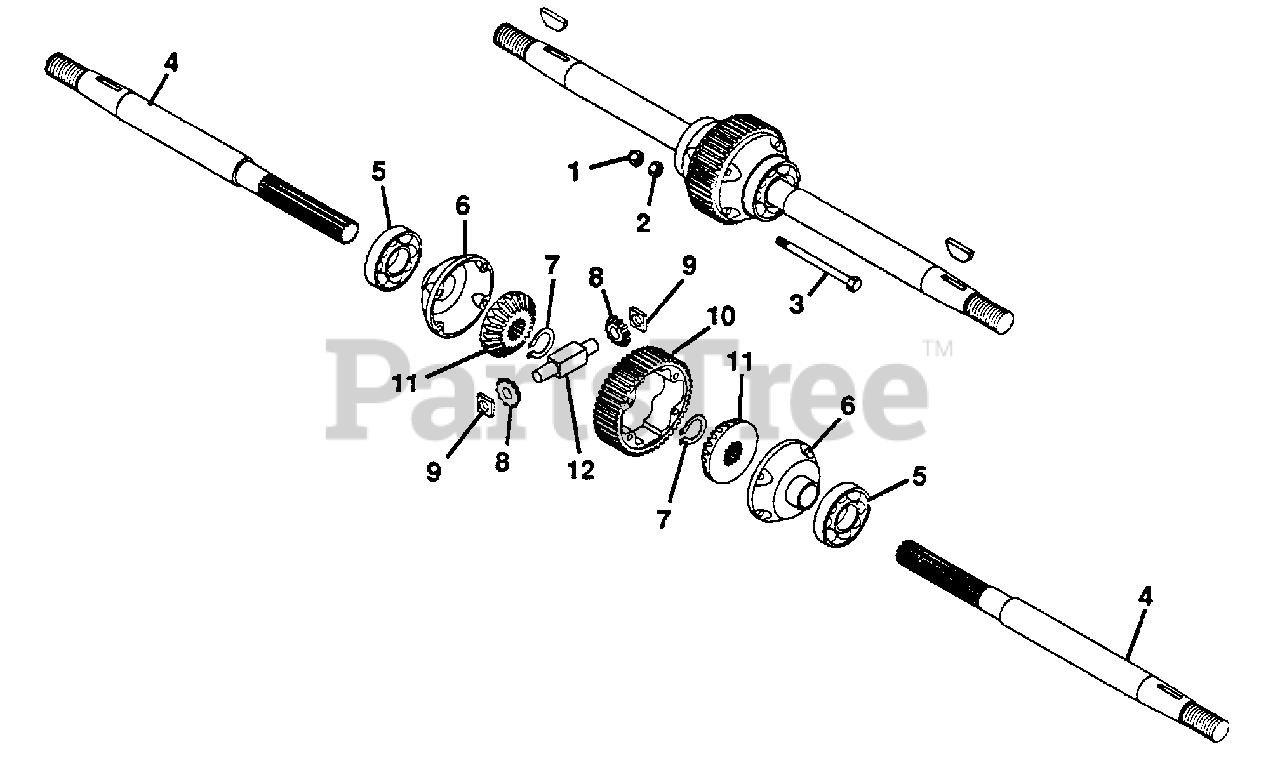

NUMBER EIGHT SHAFT - DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title

1

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

2

Gravely 020514

NUT-HEX .312-18 GR8
(Superseded to 06521400)

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 023712

BLT-HEX .31-18X2.75 GR8
(Superseded to 05941700)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 040300

AXLE,BEVEL GEAR DIFF
(Superseded to 21253300)

$

$

Not available

5

Gravely 017984

BRG-BALL 1.38X2.83X.67
(Superseded to 05420800)

$

$

Not available

6

Gravely 019956

CAP,DIFF. END
(Superseded to 21129000)

$

$

Not available

7

Gravely 017980

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 9

0

8

Gravely 019952

PIN.BEVEL
(Superseded to 08717100)

$

$

Not available

9

Gravely 012667

BLOCK,DRIVE
(Superseded to 08779000)

$10.99

$

Usually ships in 4-12 days

0

10

Gravely 023531

GR,FINAL DRIVE
(Superseded to 08725400)

$

$

Not available

11

Gravely 019953

GR,BEVEL
(Superseded to 21128900)

$

$

Not available

12

Gravely 019954

PIN,SPIDER PINION
(Superseded to 08717200)

$5.99

$

Usually ships in 4-12 days

0
