43780 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift NUMBER THIRTEEN - TRANSMISSION COVER ASSEMBLY Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

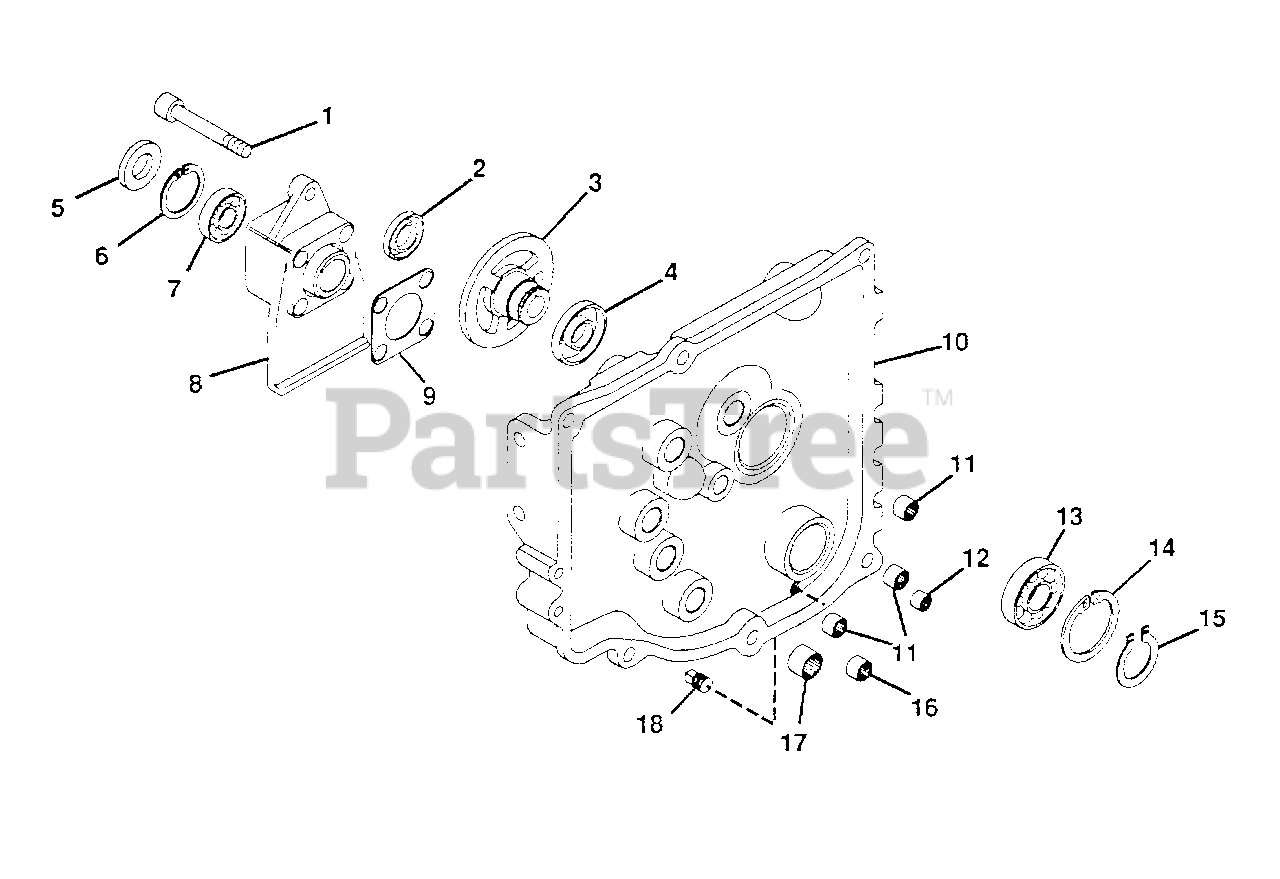

NUMBER THIRTEEN - TRANSMISSION COVER ASSEMBLY Parts Diagram

  • Title

1

Gravely 180191

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 20+

0

2

Gravely 018035

SEAL .750X1.625X.250
(Superseded to 05614600)

$13.99

$

In Stock, only 2 left!

0

3

Gravely 018024

HUB,CLUTCH
(Superseded to 08790700)

$479.99

$

Usually ships in 4-12 days

0

4

Gravely 017917

SEAL 2.250X3.002X.375
(Superseded to 05614000)

$22.99

$

In Stock, only 2 left!

0

5

Gravely 018031

SEAL 1.250X2.250X.500
(Superseded to 05618200)

$22.99

$

In Stock, only 4 left!

0

6

Gravely 018812

RG-RTNG-INT 2.490X.078
(Superseded to 05712900)

$6.49

$

Usually ships in 4-12 days

0

7

Gravely 018029

BRG-BALL 1.25X2.25X.50
(Superseded to 05426600)

$41.99

$

Usually ships in 4-12 days

0

8

Gravely 046061

AXLE BRG RTNR
(Superseded to 08775300)

$

$

Not available

9

Gravely 018030

GSKT,
(Superseded to 08701800)

$7.99

$

In Stock, Qty 7

0

10

Gravely 018022

TRANS,COVER ASSY
(Superseded to 21112300)

$

$

Not available

11

Gravely 017913

BRG-NEEDLE .750X1.0X.75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0

12

Gravely 017914

BRG-NEEDLE .625X.812X.75
(Superseded to 05420200)

$9.99

$

Usually ships in 4-12 days

0

13

Gravely 017915

BRG-BALL 1.97X3.14X.63
(Superseded to 05420300)

$68.99

$

Usually ships in 4-12 days

0

14

Gravely 018872

RG-RTNG-INT 3.520X.109
(Superseded to 05713000)

$14.99

$

Usually ships in 4-12 days

0

15

Gravely 017919

RG-RTNG-EXT 1.819X.062
(Superseded to 05712100)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 011063

BRG-NEEDLE .750X1.0X.75
(Superseded to 05427500)

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 017912

BRG-NEEDLE 1.0X1.25X.75
(Superseded to 05420000)

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 103879

PLUG,PIPE .38SQ HD UNFIN STL
(Superseded to 07023800)

$

$

Not available
