43780 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift NUMBER TWELVE - TRANSMISSION CASE ASSEMBLY Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

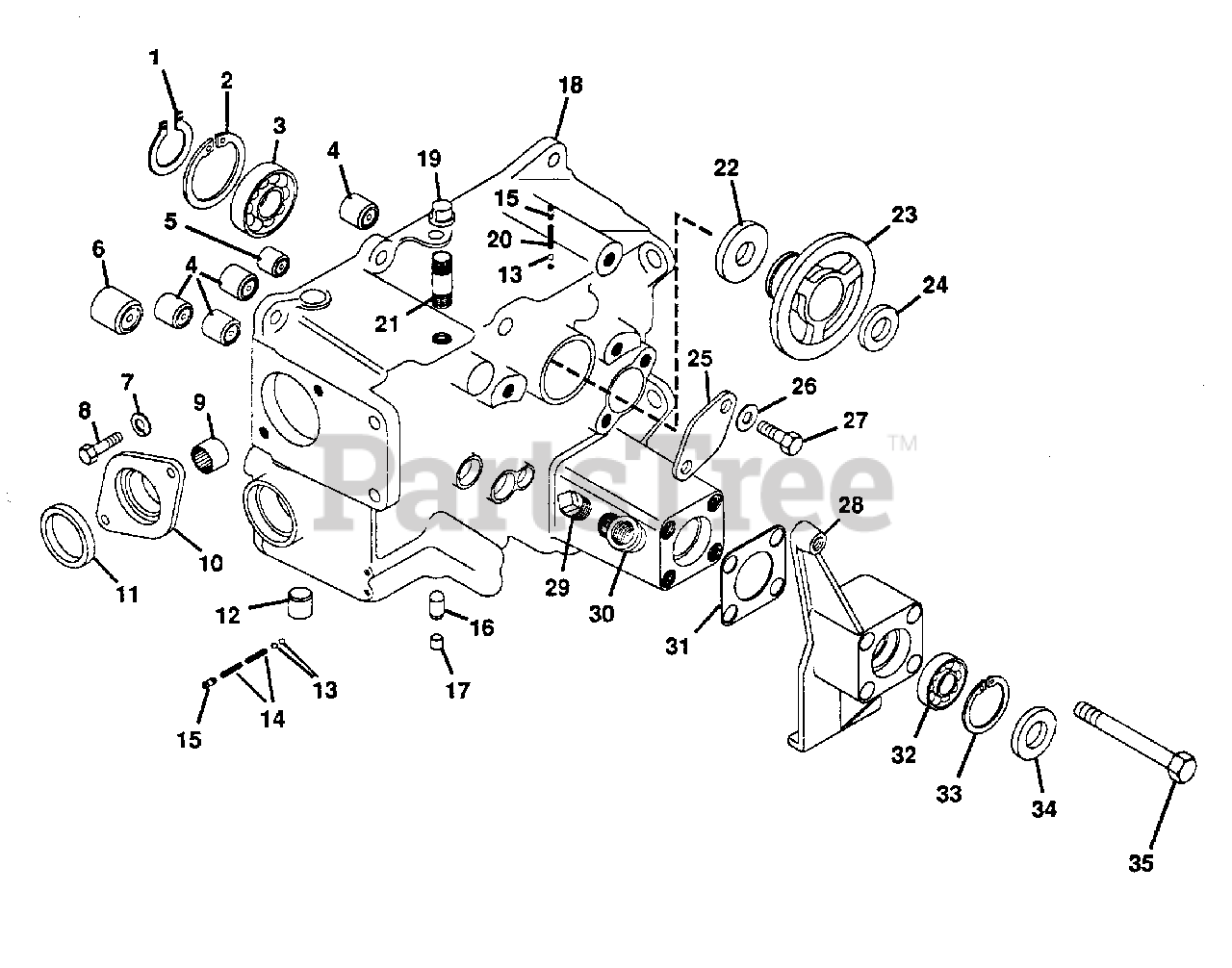

NUMBER TWELVE - TRANSMISSION CASE ASSEMBLY Parts Diagram

  • Title

1

Gravely 017919

RG-RTNG-EXT 1.819X.062
(Superseded to 05712100)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 018872

RG-RTNG-INT 3.520X.109
(Superseded to 05713000)

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 017915

BRG-BALL 1.97X3.14X.63
(Superseded to 05420300)

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 017913

BRG-NEEDLE .750X1.0X.75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 017914

BRG-NEEDLE .625X.812X.75
(Superseded to 05420200)

$9.99

$

Usually ships in 4-12 days

0

6

Gravely 017912

BRG-NEEDLE 1.0X1.25X.75
(Superseded to 05420000)

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 009660

BRG-NEEDLE .750X1.000X.50
(Superseded to 05427100)

$

$

Not available

10

Gravely 018859

CAP,FRONT PTO
(Superseded to 21122300)

$

$

Not available

11

Gravely 015137

SEAL .750X1.250X.136
(Superseded to 05613800)

$14.99

$

In Stock, only 2 left!

0

12

Gravely 017946

PLUG,CUP .500
(Superseded to 07704100)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 274301

BALL,.312 GRD 2000,CBN STL,GM#
(Superseded to 05429900)

$

$

Not available

14

Gravely 017936

SG-COMP .045X.30X1.50 WLD26
(Superseded to 08327700)

$

$

Not available

15

Gravely 103877

PLUG,PIPE .12 SQ HD UNFIN STL
(Superseded to 07023700)

$

$

Not available

16

Gravely 018200

PIN,INTERLOCK
(Superseded to 08706400)

$

$

Not available

17

Gravely 421743

PLUG,CUP; 3/8
(Superseded to 07702700)

$

$

Not available

18

Gravely 017910

ASM,TRANSMISSION CASE
(Superseded to 21111700)

$

$

Not available

19

Gravely 019472

PIPE CAP 1/2 NPT
(Superseded to 08715400)

$9.49

$

Usually ships in 4-12 days

0

20

Gravely 024772

SG-COMP .045X.300X.938
(Superseded to 08330400)

$

$

Not available

21

Gravely 121664

NPL,PIPE .50X2.50 UNFIN STL
(Superseded to 07024300)

$

$

Not available

22

Gravely 017917

SEAL 2.250X3.002X.375
(Superseded to 05614000)

$22.99

$

In Stock, only 2 left!

0

23

Gravely 018024

HUB,CLUTCH
(Superseded to 08790700)

$479.99

$

Usually ships in 4-12 days

0

24

Gravely 018035

SEAL .750X1.625X.250
(Superseded to 05614600)

$13.99

$

In Stock, only 2 left!

0

25

Gravely 018421

PLT,COVER
(Superseded to 08707500)

$11.99

$

Usually ships in 4-12 days

0

26

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 180120

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

28

Gravely 042976

RTNR,AXLE BEARING
(Superseded to 08760200)

$

$

Not available

29

Gravely 103880

PLUG,PIPE .50 SQ HD UNFIN STL
(Superseded to 07023900)

$3.49

$

Usually ships in 4-12 days

0

30

Gravely 108686

ELBOW .50X90 STRT UNFIN MAL IR
(Superseded to 07024000)

$

$

Not available

31

Gravely 018030

GSKT,
(Superseded to 08701800)

$7.99

$

In Stock, Qty 7

0

32

Gravely 018029

BRG-BALL 1.25X2.25X.50
(Superseded to 05426600)

$41.99

$

Usually ships in 4-12 days

0

33

Gravely 018812

RG-RTNG-INT 2.490X.078
(Superseded to 05712900)

$6.49

$

Usually ships in 4-12 days

0

34

Gravely 018031

SEAL 1.250X2.250X.500
(Superseded to 05618200)

$22.99

$

In Stock, only 4 left!

0

35

Gravely 180191

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 20+

0
