438 C (190-438C-100) - Cub Cadet Broadcast Spreader Broadcast Spreader Parts Diagram

Broadcast Spreader

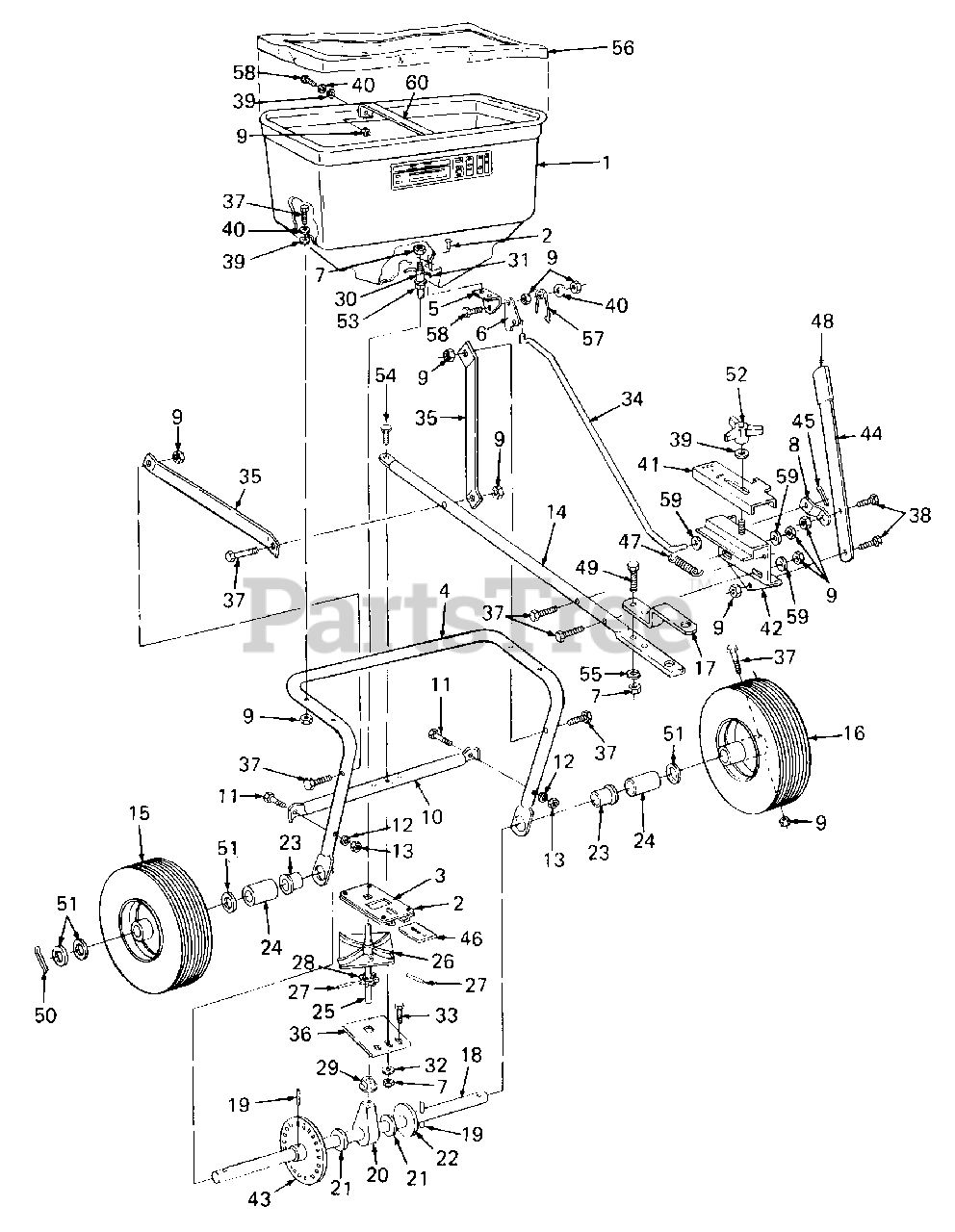

Broadcast Spreader Parts Diagram

  • Title

1

Cub Cadet AF-44480

Hopper

$142.99

$

Usually ships in 3-6 days

0

2

Cub Cadet AF-43882

Rivet

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet AF-62482

Closure Assy, Guide

$

$

Not available

4

Cub Cadet AF-44462

Support Tube, Hopper/Axle

$48.99

$

Usually ships in 3-6 days

0

5

Cub Cadet AF-23753

Angle Bracket, Slide Gate

$1.49

$

Usually ships in 3-6 days

0

6

Cub Cadet AF-23758

Bracket, Slide Gate

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 12

0

8

Cub Cadet AF-23756

Link, Flow Control

$

$

Not available

9

Cub Cadet 712-0107

Nut, Hex Center Lock, 1/4-20
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet AF-43808

Tube-Crossover

$33.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0380

Screw, Hex Cap, 5/16-18 x 1.75 Lg
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet AF-44487

Tube, Hitch

$

$

Not available

15

Cub Cadet AF-44458

Wheel Assy, RH, 16 x 4

$

$

Not available

16

Cub Cadet AF-44459

Wheel Assy, LH w/Hole, 16 x 4

$

$

Not available

17

Cub Cadet AF-23687

Bracket, Hitch

$26.99

$

Usually ships in 3-6 days

0

18

Cub Cadet AF-23522

Shaft, Axle

$

$

Currently unavailable

19

Cub Cadet 715-0246

Pin, Roll, 3/6 Dia x 1.25 Lg
(Superseded to 915-0246)

$6.49

$

In Stock, Qty 9

0

20

Cub Cadet AF-43871

Bushing, Axle/Shaft

$26.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 1540-032

Washer, Flat, .781 x 1.59 x .06 Thk

$

$

Not available

22

Cub Cadet 736-0305

Washer, Flat, .81 x 2.0 x .150 Thk
(Superseded to 736-0306)

$

$

Not available

23

Cub Cadet AF-44798

Bearing, Flange

$

$

Not available

24

Cub Cadet AF-44474

Spacer

$

$

Not available

25

Cub Cadet AF-23524

Shaft, Sprocket

$

$

Not available

26

Cub Cadet AF-04367

Plate, Spreader
(Superseded to 04367)

$71.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 715-0152

Pin, Spirol Spring, 1/8 Dia x .62 Lg

$

$

Not available

28

Cub Cadet AF-44468

Sprocket, 6T

$16.99

$

Usually ships in 3-6 days

0

29

Cub Cadet AF-43852

Bushing, Nylon, .375 ID
(Superseded to AF-44285)

$19.99

$

Usually ships in 3-6 days

0

30

Cub Cadet AF-23766

Sleeve, Agitator

$

$

Not available

31

Cub Cadet AF-43878

Wire, Agitator
(Superseded to AF-43878P)

$

$

Not available

32

Cub Cadet AF-43070

Washer, Flat, 3/8 ID

$7.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 x 1.75 Lg GR5
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet AF-44469

Rod, Flow Control

$

$

Not available

35

Cub Cadet AF-23525

Brace, Hitch

$

$

Not available

36

Cub Cadet AF-23762

Support, Shaft

$4.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-0136

Screw, Hex Cap, 1/4-20 x 1.75 Lg

$3.99

$

In Stock, only 2 left!

0

38

Cub Cadet 710-0751

Screw, Hex Cap 1/4-20 x .62 Lg

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 1543-069

Washer, Nylon

$

$

Currently unavailable

40

Cub Cadet 736-0173

Washer, Flat, .281 x .73 x .063 Thk

$3.99

$

In Stock, Qty 10

0

41

Cub Cadet AF-23755

Gage, Flow Control

$

$

Not available

42

Cub Cadet AF-62732

Mount Assy, Flow Control

$

$

Not available

43

Cub Cadet AF-62474

Gear Assy

$107.99

$

Usually ships in 3-6 days

0

44

Cub Cadet AF-23757

Arm, Flow Control

$

$

Not available

45

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia x .75 Lg

$4.49

$

In Stock, only 4 left!

0

46

Cub Cadet AF-23533

Plate, Closure

$17.99

$

Usually ships in 3-6 days

0

47

Cub Cadet AF-43000

Spring, Extension

$4.99

$

Usually ships in 3-6 days

0

48

Cub Cadet AF-43848

Grip, Flow Control Arm

$2.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Lg

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 714-3001

Pin, Cotter, 1/8 Dia x 1.50 Lg
(Superseded to 914-3001)

$3.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 736-0316

Washer, Flat, .781 x 1.59 x .065 Thk

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet AF-43849

Knob, Plastic, 1/4-20

$

$

Not available

53

Cub Cadet AF-44285

Bushing, Delrin, .375 ID

$19.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-3144

Screw, Hex Cap, 3/8-16 x 2.00 Lg GR5

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

56

Cub Cadet AF-43962

Cover, Vinyl Hopper

$

$

Not available

57

Cub Cadet AF-44566

Spring, Torsion

$1.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-0252

Screw, Hex Cap, 1/4-20 x .75 Lg GR5
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet AF-R19111116

Washer, Flat

$

$

Currently unavailable

60

Cub Cadet AF-23697

Strap, Hopper

$

$

Not available
