43902 - Gravely Rotary Plow for 2-Wheel Tractor ROTARY PLOW Parts Diagram

Rotary Plow for 2-Wheel Tractor

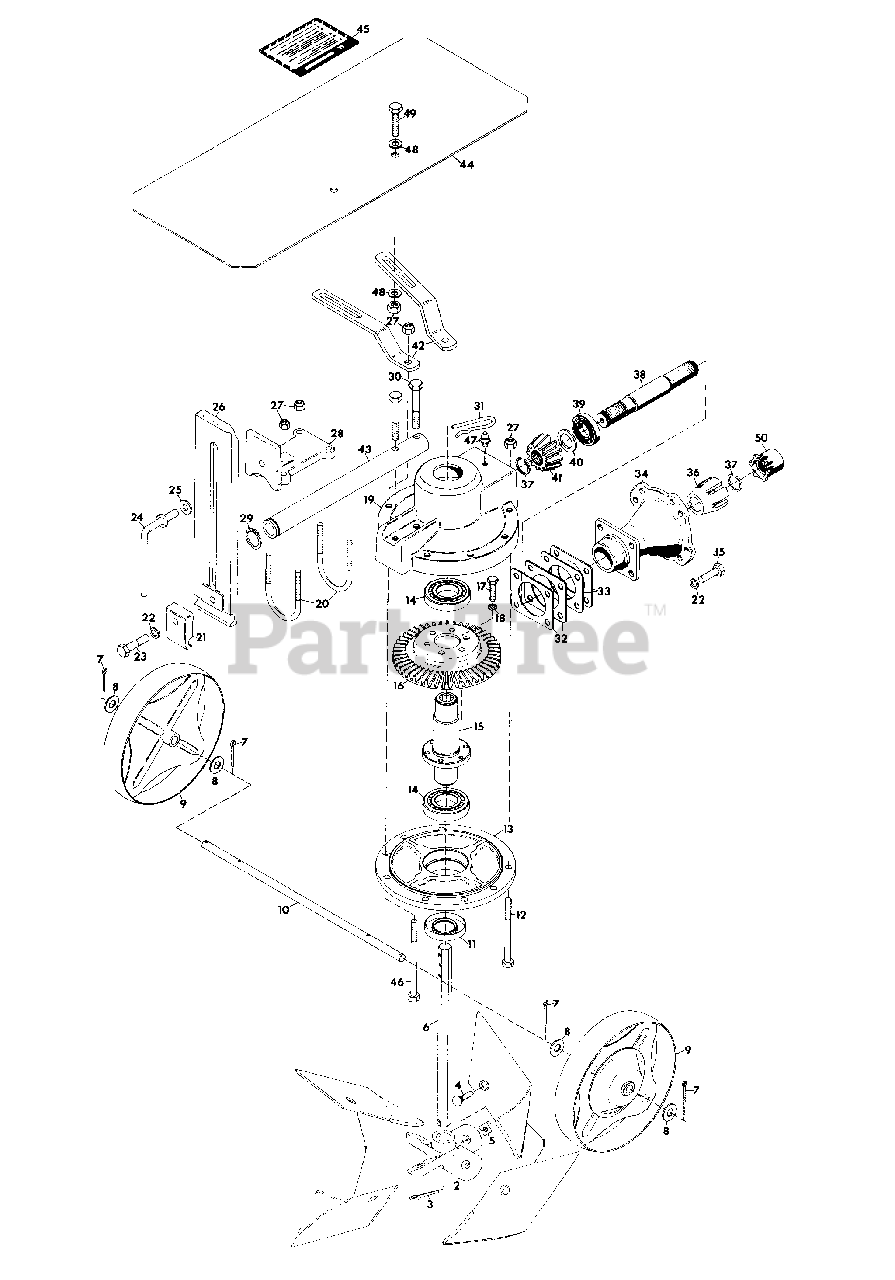

ROTARY PLOW Parts Diagram

  • Title

1

Gravely 013468

BLADE, RIGHT SPADE
(Superseded to 08572200)

$

$

Not available

2

Gravely 013467

HUB, ROTOR
(Superseded to 08500100)

$

$

Not available

3

Gravely 103422

PIN, COTTER; .250 X 2.000
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 011709

BOLT, PLOW; 1/2-13 X 1-1/2
(Superseded to 07013300)

$

$

Not available

5

Gravely 125536

NUT, SQUARE; 1/2-13
(Superseded to 06524100)

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 005310

AXLE, ROTOR
(Superseded to 08577000)

$51.99

$

Usually ships in 4-12 days

0

7

Gravely 137253

PIN, COTTER; 3/16 X 1-5/8
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 131017

WASHER, FLAT; .812 X 1.469 X .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 17

0

9

Gravely 005327

WHEEL, DEPTH
(Superseded to 08577300)

$

$

Not available

10

Gravely 005311

AXLE, DEPTH WHEEL
(Superseded to 08577100)

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 022223

SEAL, OIL; 2.165 X 3.250 X .375
(Superseded to 05616100)

$35.99

$

Usually ships in 4-12 days

0

12

Gravely 180132

BOLT, HEX; 3/8-16 X 2-1/4
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 022222

PLATE, GEAR HOUSING
(Superseded to 08521753)

$

$

Not available

14

Gravely 022241

BEARING, BALL; 2.155 X 3.543 X .709
(Superseded to 05422900)

$

$

Not available

15

Gravely 022219

HUB, BEVEL GEAR
(Superseded to 08521500)

$68.99

$

Usually ships in 4-12 days

0

16

Gravely 043904

GEAR, BEVEL
(Superseded to 08553500)

$

$

Not available

17

Gravely 180121

BOLT, HEX; 3/8-16 X 7/8
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

18

Gravely 120382

WASHER, LOCK; 3/8 SP
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

19

Gravely 022221

HOUSING, GEAR
(Superseded to 08521653)

$517.99

$

Usually ships in 4-12 days

0

20

Gravely 022235

U-BOLT; 3/8-16
(Superseded to 07021300)

$

$

Not available

21

Gravely 005304

CLAMP, AXLE
(Superseded to 08576900)

$

$

Not available

22

Gravely 120384

WASHER, LOCK; 1/2 SP
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

23

Gravely 180177

BOLT, HEX; 1/2-13 X 1-1/2
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

24

Gravely 005325

SCREW, WHEEL BRACKET CLAMP
(Superseded to 07016100)

$21.99

$

Usually ships in 4-12 days

0

25

Gravely 120390

WASHER, FLAT; 9/16 X 1-3/8 X .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 17

0

26

Gravely 022236

BRACKET, WHEEL
(Superseded to 08522200)

$

$

Not available

27

Gravely 413534

NUT, LOCK; 3/8-16 TYPE N HEX
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 022234

SWIVEL, WHEEL BRACKET
(Superseded to 08522100)

$

$

Not available

29

Gravely 022233

RING, SNAP TRUARC 5160-193
(Superseded to 05714000)

$

$

Not available

30

Gravely 180188

BOLT, HEX; 1/2-13 X 2-3/4
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

31

Gravely 013466

PIN, DEPTH ADJUSTING
(Superseded to 06706800)

$

$

Not available

32

Gravely 022230

SHIM, .005
(Superseded to 08546000)

$

$

Not available

33

Gravely 022231

SHIM, .020
(Superseded to 08545900)

$

$

Not available

34

Gravely 022228

HOUSING, DRIVE SHAFT
(Superseded to 08521900)

$216.99

$

Usually ships in 4-12 days

0

35

Gravely 180175

BOLT, HEX; 1/2-13 X 1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

36

Gravely 022240

CLUTCH, DOG
(Superseded to 08522400)

$

$

Not available

37

Gravely 022242

RING, RETAINING; .937 SHAFT
(Superseded to 05714100)

$

$

Not available

38

Gravely 022225

SHAFT, DRIVE
(Superseded to 08521800)

$11.99

$

Usually ships in 4-12 days

0

39

Gravely 021929

BEARING, BALL; .984 X 2.0472 X .590
(Superseded to 05422200)

$15.99

$

In Stock, only 1 left!

0

40

Gravely 022226

RACE, THRUST; 1.002 X 1.552 X .155
(Superseded to 06433300)

$

$

Not available

41

Gravely 022227

PINION, BEVEL ROTARY PLOW
(Superseded to 08903700)

$

$

Not available

42

Gravely 022238

SUPPORT, SHIELD
(Superseded to 08522300)

$

$

Not available

43

Gravely 022232

SUPPORT, TUBE
(Superseded to 08522000)

$9.49

$

Usually ships in 4-12 days

0

44

Gravely 005324

SHIELD, DIRT
(Superseded to 08577200)

$

$

Not available

45

Gravely 019479

DECAL, CAUTION
(Superseded to 05200700)

$

$

Not available

46

Gravely 180134

BOLT, HEX; 3/8-16 X 2-1/2
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

47

Gravely 411027

FITTING, LUBE; 1/4-28
(Superseded to 07012600)

$

$

Not available

48

Gravely 120394

WASHER, FLAT; .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

49

Gravely 180120

BOLT, HEX; 3/8-16 X .750
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

50

Gravely 021343

DOG, ATTACHMENT
(Superseded to 08516400)

$249.99

$

Usually ships in 4-12 days

0
