440 (214-440-100) - Cub Cadet Rear-Tine Tiller (1994) Rear Tine Tiller - Part II Parts Diagram

Rear-Tine Tiller

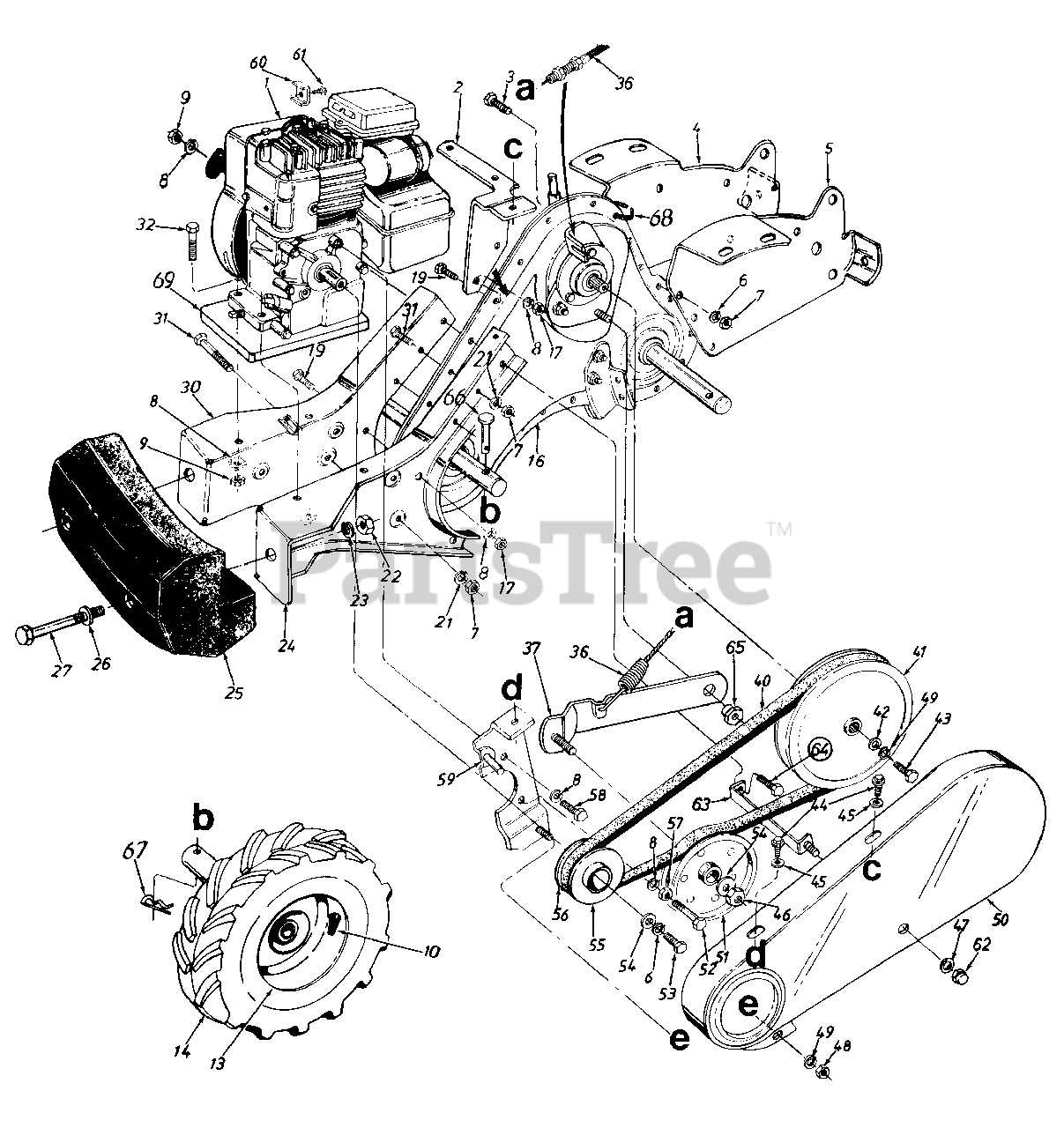

Rear Tine Tiller - Part II Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 786-0123

Shift Cover Mounting Brkt.

Variations

Cub Cadet 786-0123-0637

SHIFT COVER MOUNTING BRKT. - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$3.46

$

In Stock, Qty 20+

0

4

Cub Cadet 784-0178

Tine Shield Mtg. Brkt.--R.H.

Variations

Cub Cadet 784-0178-0483

USE 784-0178-0637 BRACKET-MTG - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0178-0637

BRACKET-MTG-RH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0178-0638

USE 784-0178-0637 BRACKET-MTG - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0178-0665

USE 784-0178-0637 BRACKET-MTG - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

Cub Cadet 784-0177

Tine Shield Mtg. Brkt.--L.H.

Variations

Cub Cadet 784-0177-0483

MOUNTING BRACKET(LH) - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0177-0637

MOUNTING BRACKET(LH) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0177-0638

MOUNTING BRACKET(LH) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0177-0665

MOUNTING BRACKET(LH) - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

Cub Cadet 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)

$3.04

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.52

$

In Stock, Qty 8

0

8

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$3.92

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0267

Hex Nut 5/16-18" Thd.
(Superseded to 912-3010)

$3.58

$

In Stock, Qty 20+

0

10

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$3.50

$

In Stock, Qty 20+

0

13

Cub Cadet 634-0108

Wheel Rim Ass'y. Only

Variations

Cub Cadet 634-0108-0499

RIM - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 634-0108-0674

RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

14

Cub Cadet 634-0107

L.H. Wheel Ass'y. Comp.

Variations

Cub Cadet 634-0107-0931

WHEEL ASSEMBLY (16 x 4) (LH) - Carlisle Beige (0931)

$

$

Not available

Cub Cadet 634-0107-0911

WHEEL ASSEMBLY (16 x 4) (LH) - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 634-0107-0912

WHEEL ASSEMBLY (16 x 4) (LH) - Dico Gray (0912)

$

$

Not available

Cub Cadet 634-0107-0941

WHEEL ASSEMBLY (16 x 4) (LH) - Carlisle Yellow (0941)

$

$

Not available

Cub Cadet 634-0107-0942

WHEEL ASSEMBLY (16 x 4) (LH) - Dico Yellow (0942)

$

$

Not available

$

$

Cub Cadet 634-0106

R.H. Wheel Ass'y. Comp.

Variations

Cub Cadet 634-0106-0931

WHEEL ASSEMBLY (16 x 4) (RH) - Carlisle Beige (0931)

$

$

Not available

Cub Cadet 634-0106-0911

WHEEL ASSEMBLY (16 x 4) (RH) - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 634-0106-0912

WHEEL ASSEMBLY (16 x 4) (RH) - Dico Gray (0912)

$

$

Not available

Cub Cadet 634-0106-0941

WHEEL ASSEMBLY (16 x 4) (RH) - Carlisle Yellow (0941)

$

$

Not available

Cub Cadet 634-0106-0942

WHEEL ASSEMBLY (16 x 4) (RH) - Dico Yellow (0942)

$

$

Not available

$

$

Cub Cadet 734-0808

Tire Only

Variations

Cub Cadet 734-0808-0901

Tire, 16.25 X 4.5-8 Tiller Ag - Carlisle (0901)

$100.31

$

Usually ships in 5-10 days

0

Cub Cadet 734-0808-0902

Tire, 16.25 X 4.5-8 Tiller Ag - Dico (0902)

$100.31

$

Usually ships in 5-10 days

0

Cub Cadet 734-0808-0905

Tire, 16.25 X 4.5-8 Tiller Ag - Duro (0905)

$100.31

$

Usually ships in 5-10 days

0

$

$

16

Cub Cadet 686-0058

Gear Case Ass'y. Comp.

$

$

Not available

17

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$3.58

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.43

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0217

L-Wash. 3/8" I.D.--H.D.
(Superseded to 936-0217)

$3.52

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0206

Hex Nut 1/2-13 Thd.
(Superseded to 912-0206)

$3.60

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0921

L-Wash. 1/2" I.D.

$3.60

$

In Stock, Qty 20+

0

24

Cub Cadet 784-0155

Engine Mounting Rail--R.H.

Variations

Cub Cadet 784-0155-0498

ENGINE MOUNTING RAIL (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0155-0637

ENGINE MOUNTING RAIL (RH) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0155-0665

ENGINE MOUNTING RAIL (RH) - YARDMAN GREEN (0665)

$

$

Not available

$

$

25

Cub Cadet 723-0381

#40 Counter Weight

$125.42

$

In Stock, only 1 left!

0

26

Cub Cadet 736-0326

Fl-Wash. .510" I.D. x 1.0"
(Superseded to 936-0326)

$

$

Not available

27

Cub Cadet 710-0382

Hex Bolt 1/2-13 x 5.00" Lg.

$9.73

$

In Stock, only 2 left!

0

30

Cub Cadet 784-0154

Engine Mounting Rail--L.H.

Variations

Cub Cadet 784-0154-0498

RAIL-ENGIN - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0154-0637

RAIL-ENGIN - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0154-0665

RAIL-ENGIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

31

Cub Cadet 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$3.59

$

In Stock, Qty 20+

0

32

Cub Cadet 710-0176

Hex Bolt 5/16-18 x 2.75"

$3.58

$

In Stock, Qty 10

0

36

Cub Cadet 746-0908

Clutch Control Cable 46" Lg.
(Superseded to 946-0908)

$60.73

$

In Stock, Qty 20+

0

37

Cub Cadet 686-0026

Idler Bracket Ass'y.

$

$

Not available

40

Cub Cadet 754-0267

"V"-Belt
(Superseded to 954-0267)

$52.21

$

Usually ships in 5-10 days

0

41

Cub Cadet 756-0634

Fl-Pulley 8" O.D.

$73.30

$

In Stock, only 2 left!

0

42

Cub Cadet 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.
(Superseded to 936-0176)

$3.65

$

In Stock, Qty 20+

0

43

Cub Cadet 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$4.57

$

In Stock, only 3 left!

0

44

Cub Cadet 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$3.52

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0463

Fl-Wash. .281" I.D. x .625"
(Superseded to 936-0463)

$3.60

$

In Stock, Qty 18

0

46

Cub Cadet 712-0262

Hex Cent. L-Nut 3/8-24 Thd.

$3.56

$

In Stock, Qty 20+

0

47

Cub Cadet 736-3020

Fl-Wash. .266" I.D. x .625" O.D.
(Superseded to 936-3020)

$

$

Not available

48

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$3.65

$

In Stock, Qty 10

0

49

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$3.60

$

In Stock, Qty 14

0

50

Cub Cadet 784-0158

Belt Cover

Variations

Cub Cadet 784-0158-0637

USE 784-0158B-0638 COVER-BELT - POWDER BLACK (0637)

$76.94

$

In Stock, only 1 left!

0

Cub Cadet 784-0158-0638

USE 784-0158B-0638 COVER-BELT - MTD/TROY-BILT RED (0638)

$76.94

$

In Stock, only 1 left!

0

Cub Cadet 784-0158-0498

Belt Cover, Yellow - OLD CUB YELLOW (0498)

$76.94

$

Usually ships in 5-10 days

0

Cub Cadet 784-0158-0483

USE 784-0158A COVER-BELT - CHARCOAL GRAY (0483)

$66.94

$

Usually ships in 5-10 days

0

Cub Cadet 784-0158-0662

USE 784-0158A-0662 COVER-BELT - OYSTER GRAY (0662)

$76.94

$

Usually ships in 5-10 days

0

Cub Cadet 784-0158-0665

USE 784-0158A-0665 COVER-BELT - YARDMAN GREEN (0665)

$76.94

$

Usually ships in 5-10 days

0

$

$

51

Cub Cadet 756-0405

Fl-Idler w/Flanges 3.75" O.D.

$61.01

$

Usually ships in 5-10 days

0

52

Cub Cadet 710-0409

Hex Bolt 5/16-24 x 1.75"

$3.71

$

Usually ships in 5-10 days

0

53

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$3.67

$

In Stock, Qty 10

0

54

Cub Cadet 736-0258

Fl-Wash. 3/8" I.D. x 1.00"

$3.63

$

In Stock, Qty 20+

0

55

Cub Cadet 756-0972

Outer Engine Pulley Half

$13.07

$

Usually ships in 5-10 days

0

56

Cub Cadet 756-0971

Inner Engine Pulley Half

$11.61

$

Usually ships in 5-10 days

0

57

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$5.48

$

In Stock, Qty 20+

0

58

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$3.63

$

In Stock, only 4 left!

0

59

Cub Cadet 686-0065

Belt Keeper Ass'y.

$

$

Not available

60

Cub Cadet 751-0360A

Casing Clamp
(Superseded to 751B221535)

$8.23

$

In Stock, Qty 20+

0

61

Cub Cadet 710-0899A

Hex Sems Scr. #10-32 x .62"

$5.44

$

Usually ships in 5-10 days

0

62

Cub Cadet 712-0392

Hex Cap Nut 1/4-28 Thd.

$5.53

$

In Stock, only 1 left!

0

63

Cub Cadet 686-0064

Belt Cover Brkt. Ass'y.

$

$

Currently unavailable

64

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

$3.34

$

In Stock, Qty 20+

0

65

Cub Cadet 738-0876

Shld. Nut
(Superseded to 738-0876A)

$8.79

$

In Stock, Qty 6

0

66

Cub Cadet 711-1017

Clevis Pin

$6.07

$

In Stock, Qty 5

0

67

Cub Cadet 714-0104

Hairpin Clip
(Superseded to 914-0104)

$3.56

$

In Stock, Qty 20+

0

68

Cub Cadet 725-0157

Cable Tie--Self Clinching

$3.15

$

In Stock, Qty 14

0

69

Cub Cadet 717-0522

Engine Spacer Block

$

$

Not available
