440 (214-440-100) - Cub Cadet Rear-Tine Tiller Engine (1994) B&S 5 HP Bushing Cylinder and Blower Housing Parts Diagram

Rear-Tine Tiller Engine

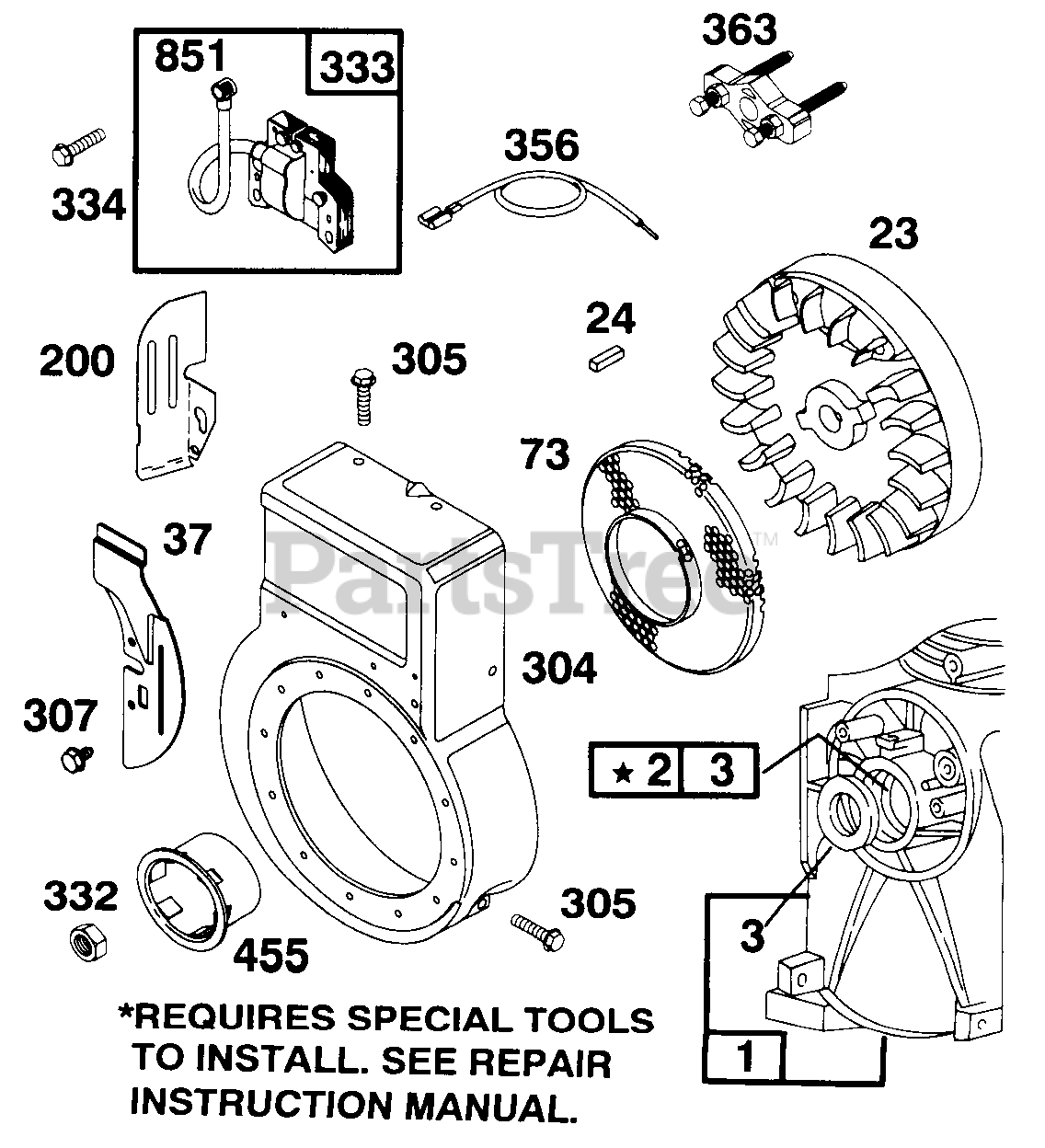

B&S 5 HP Bushing Cylinder and Blower Housing Parts Diagram

  • Title

1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-297565

Bushing--Cylinder

$21.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-299819

Seal--Oil
(Superseded to BS-299819S)

$5.99

$

In Stock, Qty 18

0

23

Cub Cadet BS-297229

Flywheel--Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key--Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 9

0

37

Cub Cadet BS-222443

Guard--Flywheel

$

$

Not available

73

Cub Cadet BS-224632

Screen--Rotating

$

$

Not available

200

Cub Cadet BS-223886

Guide Air

$

$

Not available

304

Cub Cadet BS-495759

Housing--Blower

$

$

Not available

305

Cub Cadet BS-94619

Screw--Blower Housing Mounting
(Superseded to BS-692198)

$6.49

$

In Stock, Qty 20+

0

307

Cub Cadet BS-94680

Screw--Sem
(Superseded to BS-691660)

$3.99

$

In Stock, only 4 left!

0

332

Cub Cadet 712-3056

Nut--Flywheel

$5.49

$

In Stock, Qty 8

0

333

Cub Cadet BS-397358

Armature Group

$56.99

$

In Stock, Qty 13

0

334

Cub Cadet BS-93414

Screw--Armature Mtg.

$

$

Not available

356

Cub Cadet BS-398808

Wire--Ground

$12.99

$

In Stock, Qty 6

0

363

Cub Cadet BS-19069

Flywheel Puller

$26.99

$

In Stock, only 1 left!

0

455

Cub Cadet BS-224250

Cup-Starter

$9.99

$

Usually ships in 2-12 days

0

851

Cub Cadet BS-221798

Cable Term.--Ignition
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0
