440 e - Husqvarna Chainsaw (2008-05) Crankcase / Chainbrake Handle Parts Diagram

Chainsaw

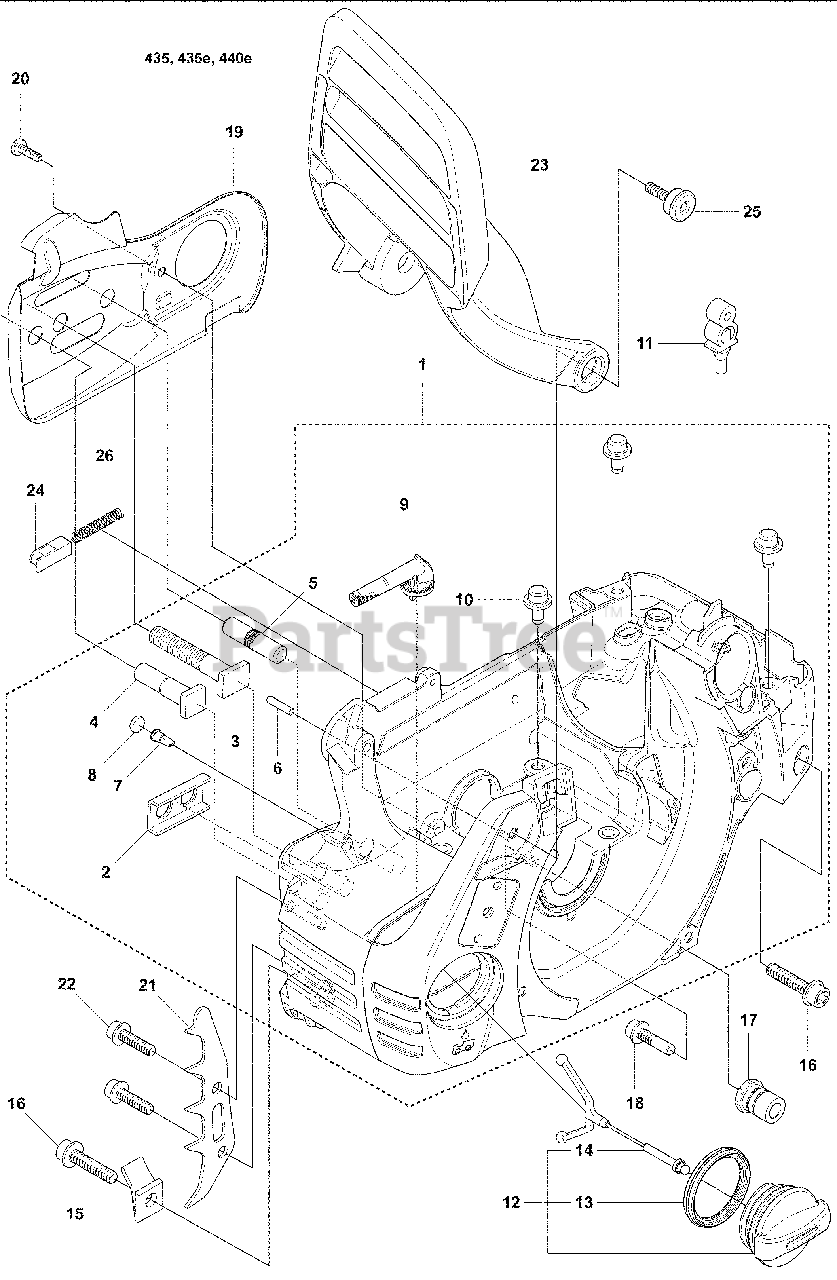

Crankcase / Chainbrake Handle Parts Diagram

  • Title

1

Husqvarna 544932501

Crankcase Assembly
(Superseded to 544932507)

Note: Crankcase assy

$74.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503875802

Stiffening Plate

Note: Stiffening plate

$6.99

$

In Stock, Qty 12

0

3

Husqvarna 503875402

Bar Bolt

Note: Bar bolt

$6.99

$

In Stock, Qty 14

0

4

Husqvarna 537334601

Bar Bolt, X2

Note: Bar bolt

$6.99

$

In Stock, Qty 7

0

5

Husqvarna 544036401

Bar Bolt

Note: Bar bolt

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 503240905

Pin

Note: Needle roller

$3.49

$

In Stock, Qty 10

0

7

Husqvarna 530026119

Valve Check, Duckbill

Note: Check valve

$5.99

$

In Stock, Qty 16

0

8

Husqvarna 537403501

Sintered Filter, Bronze
(Superseded to 537403502)

Note: Filter

$3.49

$

In Stock, Qty 6

0

9

Husqvarna 544083301

Oil Screen

Note: Oil screen

$5.99

$

In Stock, only 1 left!

0

10

Husqvarna 544331601

GUIDE PEN

Note: Guide pin

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503869301

Support
(Superseded to 597909701)

Note: Support

$6.99

$

In Stock, only 2 left!

0

12

Husqvarna 544111201

Fuel Tank Cap Assembly, Grey
(Superseded to 544111203)

Note: Tank cap assy

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 537215001

Sealing Gasket
(Superseded to 589241101)

Note: Sealing

$6.99

$

In Stock, only 3 left!

0

14

Husqvarna 503578901

Holder

Note: Holder

$5.99

$

In Stock, Qty 9

0

15

Husqvarna 503886301

Chain Catcher

Note: Chain catcher pin

$5.99

$

In Stock, only 4 left!

0

16

Husqvarna 544316201

Screw, 3 X 25 IHSCFT
(Superseded to 503218876)

Note: Screw

$5.99

$

In Stock, Qty 20+

0

17

Husqvarna 501007601

Lateral Support

Note: Lateral support

$3.49

$

In Stock, only 1 left!

0

18

Husqvarna 503215103

Screw, Ihscft

Note: Screw

$3.49

$

In Stock, only 2 left!

0

19

Husqvarna 544284601

Chain Guide Plate

Note: Chain guide plate

$6.99

$

In Stock, Qty 11

0

20

Husqvarna 503217010

Screw

Note: Screw

$3.49

$

In Stock, Qty 13

0

21

Husqvarna 544286501

Spike, Inner

Note: Spike inner

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 503217520

Screw

Note: Screw

$3.49

$

In Stock, Qty 14

0

23

Husqvarna 544251501

Hand Guard

Note: Hand guard

$13.99

$

Usually ships in 3-10 days

0

24

Husqvarna 503892401

Catch

Note: Catch

$6.99

$

In Stock, only 3 left!

0

25

Husqvarna 503893002

Screw
(Superseded to 503893001)

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 503436501

Lock Spring

Note: Lock spring

$3.49

$

In Stock, Qty 20+

0
