440 e - Husqvarna Chainsaw (2009-02) Chain Break & Clutch Cover Parts Diagram

Chainsaw

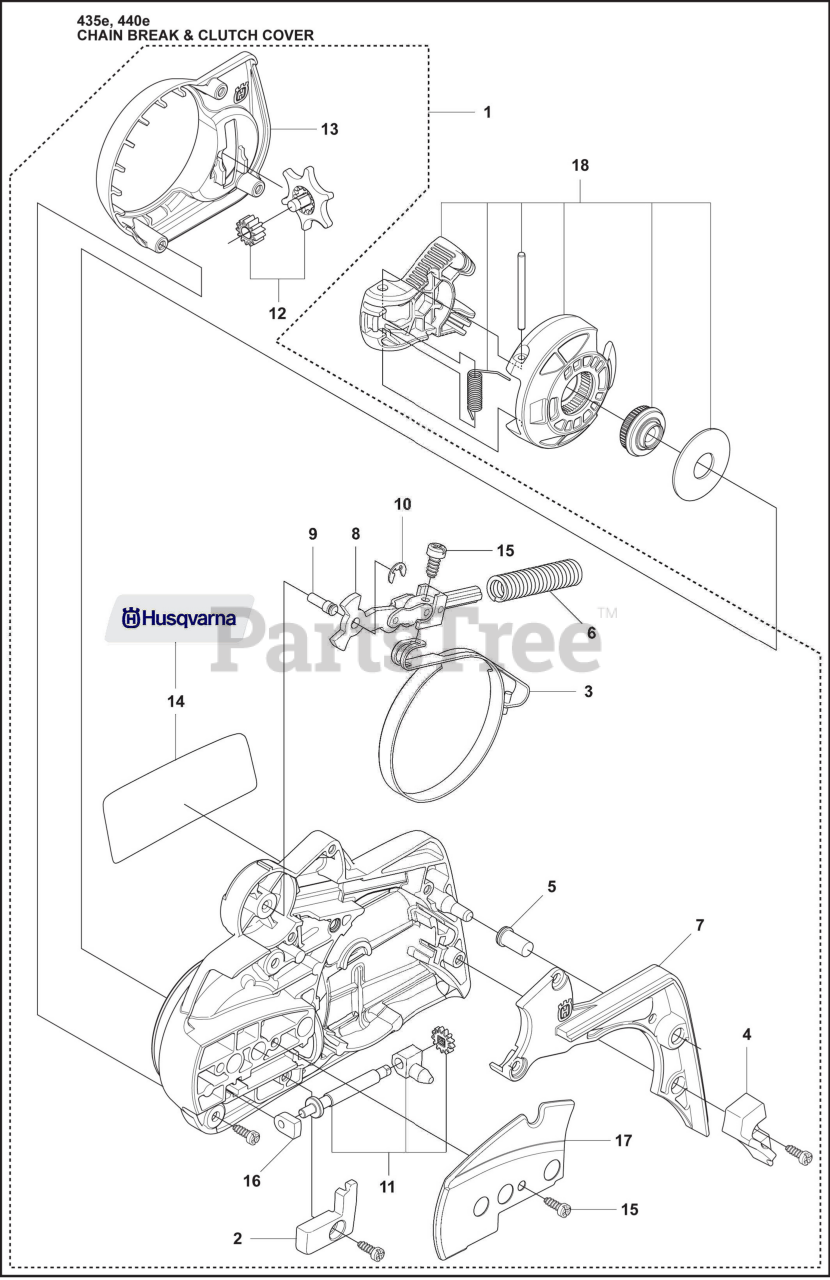

Chain Break & Clutch Cover Parts Diagram

  • Title

1

Husqvarna 544194901

Chain Brake Assembly, Husq Orange
(Superseded to 544194915)

Note: Clutch cover assy

$85.99

$

Usually ships in 3-10 days

0

2

Husqvarna 504542801

Cover

Note: Cover

$5.99

$

In Stock, only 2 left!

0

3

Husqvarna 544306001

Brake Band Assembly

Note: Brake band assy

$11.99

$

In Stock, Qty 16

0

4

Husqvarna 544253101

Wear Protection

Note: Wear protection

$5.99

$

In Stock, Qty 9

0

5

Husqvarna 503855201

Sleeve

Note: Guide bushing

$5.99

$

In Stock, Qty 15

0

6

Husqvarna 505892601

Brake Spring

Note: Brake spring

$4.99

$

In Stock, Qty 16

0

7

Husqvarna 544248501

Cover

Note: Cover lid

$7.99

$

In Stock, Qty 6

0

8

Husqvarna 503890802

Joint

Note: Knee joint

$26.99

$

In Stock, only 4 left!

0

9

Husqvarna 503892901

Pin

Note: Pin knee joint

$3.49

$

In Stock, only 3 left!

0

10

Husqvarna 735310820

Bar Retainer

Note: E-clip

$3.49

$

In Stock, Qty 11

0

11

Husqvarna 537392901

Chain Tensioner Screw, Comp

Note: Chain tension screw

$7.99

$

In Stock, only 3 left!

0

12

Husqvarna 537347201

Chain Tensioner Wheel

Note: Chain tensioner wheel

$7.99

$

In Stock, only 2 left!

0

13

Husqvarna 537392601

Heat Shield

Note: Heat protector

$9.49

$

In Stock, only 3 left!

0

14

Husqvarna 544357501

Clutch Housing Decal

Note: Label

$3.49

$

In Stock, only 1 left!

0

15

Husqvarna 503217010

Screw

Note: Screw

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 544845501

Sleeve Bearing
(Superseded to 525354301)

Note: Bearing sleeve

$7.49

$

In Stock, only 2 left!

0

17

Husqvarna 544250501

Plate

Note: Wear plate

$6.99

$

In Stock, only 1 left!

0

18

Husqvarna 537347801

Complete Knob

Note: Knob

$22.99

$

In Stock, only 1 left!

0
