440 - Husqvarna Automower Robotic Lawn Mower (2017-01) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

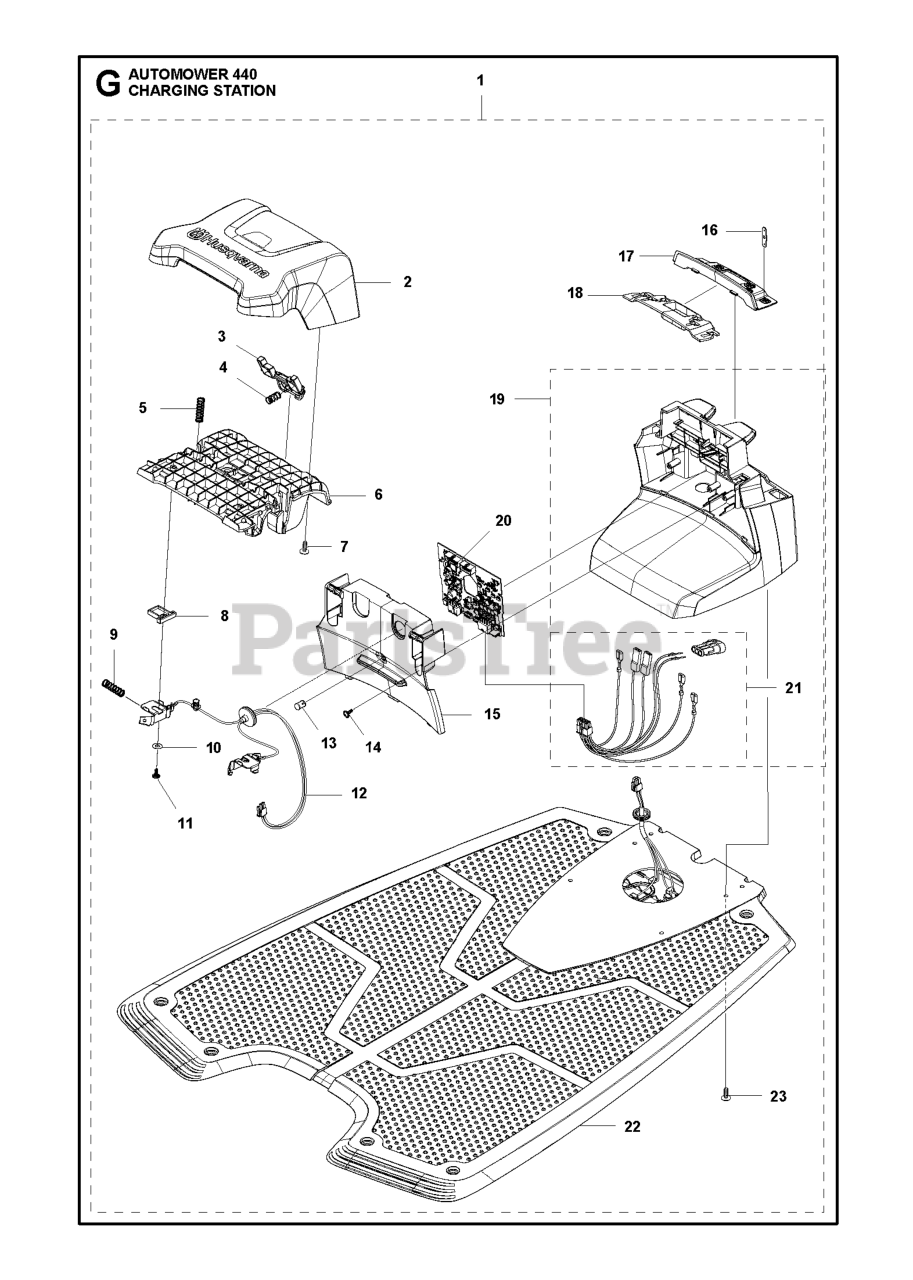

CHARGING STATION Parts Diagram

  • Title

18

Husqvarna 579459901

HOLDER CHARGING STATION

Note: Holder

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 579459802

PANEL CHARGING STATION 330, TW

Note: Panel

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 579459704

LID CHARGING STATION 320, ONE

Note: Lid

$28.99

$

Usually ships in 3-10 days

0

22

Husqvarna 575231602

CHARGING PLATE CHARGING PLATE
(Superseded to 590094001)

Note: Charging Plate

$227.99

$

Usually ships in 3-10 days

0

6

Husqvarna 579458004

FRAME CHARGING STATION

Note: Frame

$22.99

$

Usually ships in 3-10 days

0

21

Husqvarna 588478901

CABLE KIT GENERATOR BOARD

Note: Wiring CS

$

$

Not available

12

Husqvarna 585539502

CABLE ASSY CHARGING CONTACTS

Note: Loom Charging Contact

$54.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 579462402

BUTTON CHARGING STATION, RELEA

Note: Button

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 579448203

CAP CHARGING STATION

Note: Cap

$43.99

$

In Stock, only 1 left!

0

5

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 734113741

WASHER

Note: Washer

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 580765507

NEEDS DESCRIPTION

Note: Charging Station

$

$

Currently unavailable

8

Husqvarna 579460501

DISTANCE CHARGING STATION
(Superseded to 579460502)

Note: Distance

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 588188801

HOUSING ASSY CHARGING STATION

Note: Housing KIT

$

$

Not available

4

Husqvarna 574487001

SPRING STOP BUTTON

Note: Spring

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 535128702

LENS
(Superseded to 590217201)

Note: Lens

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 589507801

PRINTED CIRCUIT ASSY PCBA CS B
(Superseded to 589507802)

Note: PCBA Charging Station

$136.99

$

Usually ships in 3-10 days

0

7

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 580504101

TERMINAL TERMINAL CHARGING STA

Note: Terminal

$9.49

$

In Stock, only 4 left!

0
