4400 - Poulan Chainsaw CHAIN BRAKE ASSEMBLY - NEW STYLE Parts Diagram

Chainsaw

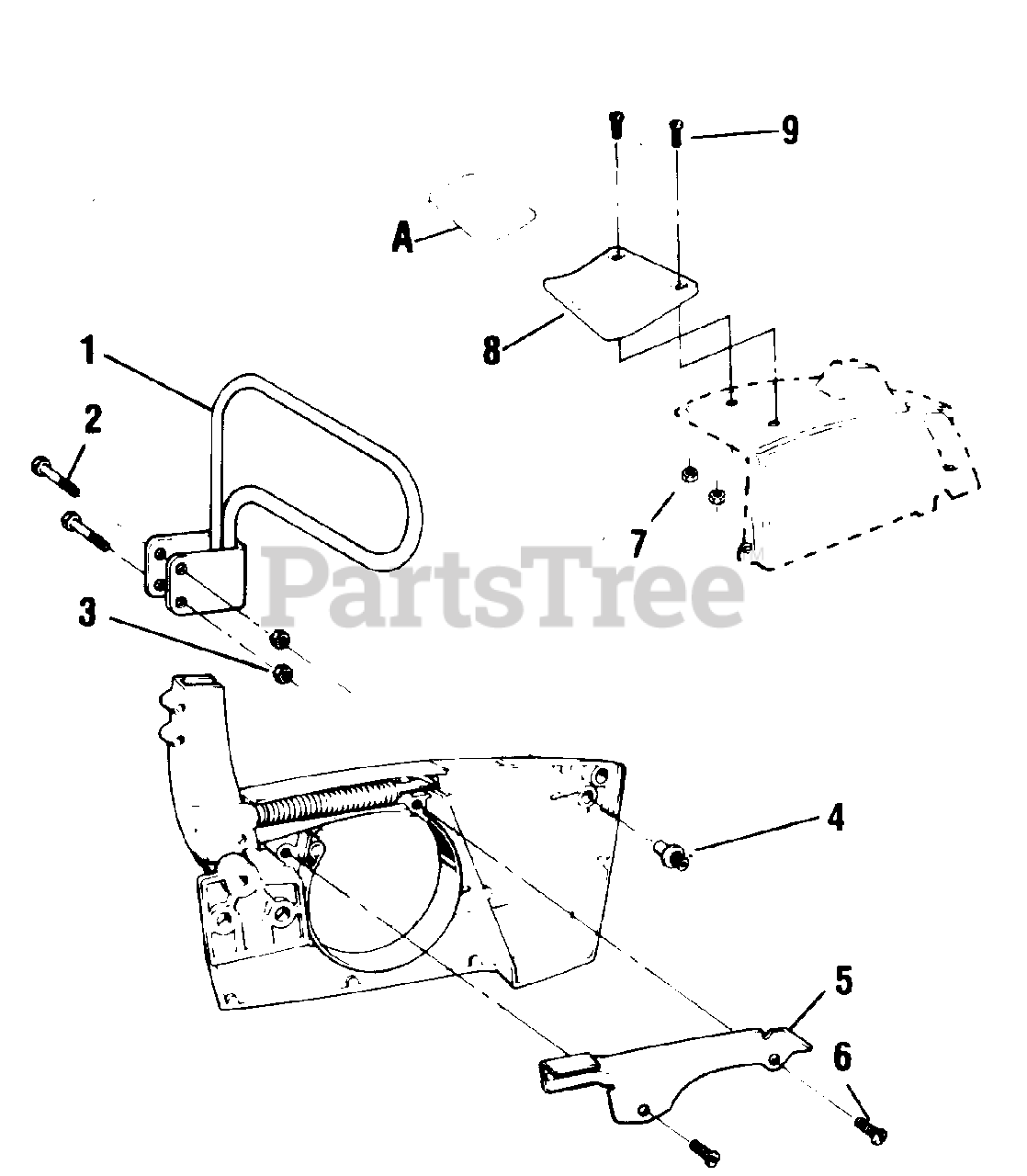

CHAIN BRAKE ASSEMBLY - NEW STYLE Parts Diagram

  • Title

1

Ass'y - Handguard

$

$

Not available

Poulan 530025993

Kit #69137

$

$

Not available

Poulan 530027281

Kit #69220

$

$

Not available

2

Poulan 530015169

Screw - 10 - 24 Hex Hd.

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 530015217

Locknut - 10 - 24
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530015284

Bar Clamp Guide Stud

$

$

Not available

5

Poulan 530025959

Bracket - Brake Band

$

$

Not available

6

Poulan 530015306

Screw - 10 - 24 x 7/16 Taptite Hex Hd.

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530015217

Nut - Heat Shield
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530025914

Shield - Heat

$

$

Not available

9

Poulan 530015406

Screw - Heat Shield 10 - 24 #1/2 Pan Hd.

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530023735

Bushing Guide

$

$

Not available

A

Poulan 530026341

Decal - Instructions

$

$

Not available

Poulan 530024222

Decal - Bar Clamp (Not Shown)

$

$

Not available
