44127 (1238-H) - Gravely 38" Lawn Tractor, 12hp Kawasaki, Hydro Drive ELECTRICAL Parts Diagram

38" Lawn Tractor, 12hp Kawasaki, Hydro Drive

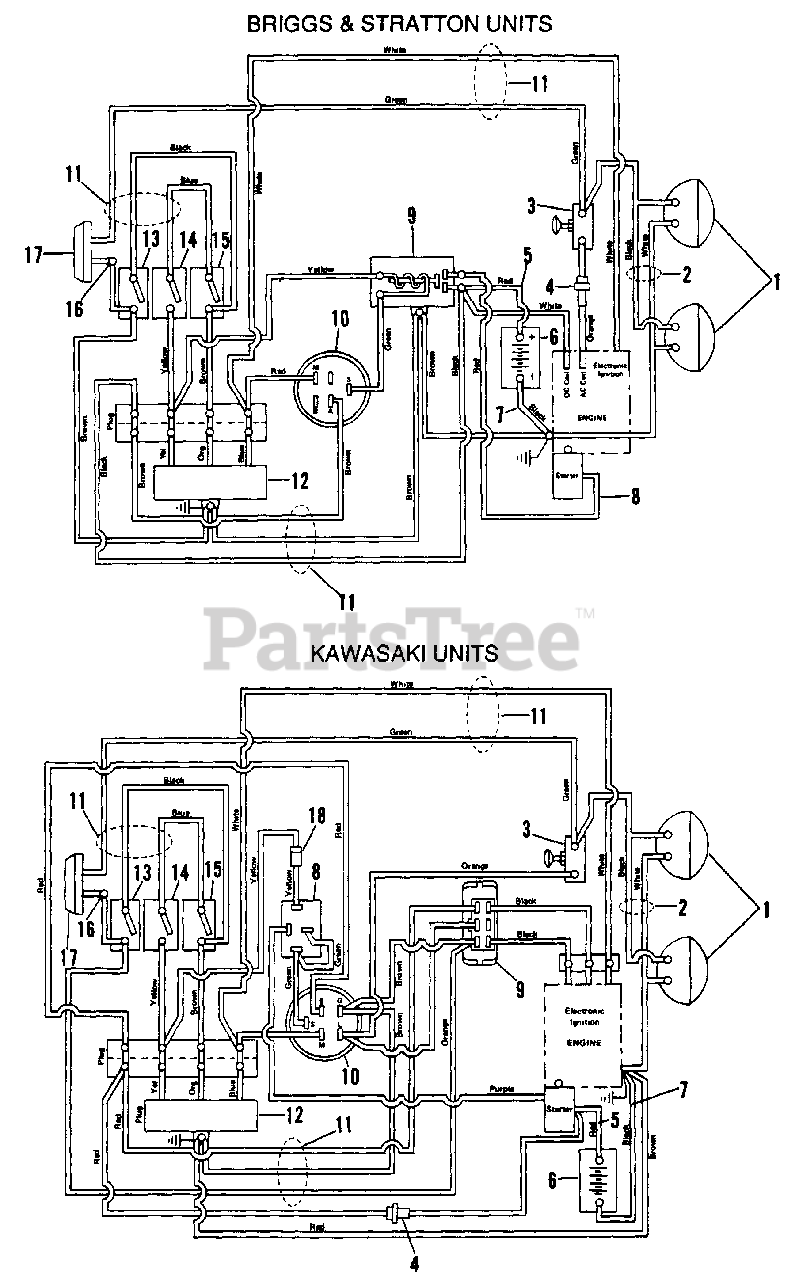

ELECTRICAL Parts Diagram

  • Title

1

Gravely 039069

HEADLIGHT
(Superseded to 03114900)

$21.99

$

In Stock, only 2 left!

0

2

Gravely 044761

HARNESS, HEADLIGHT WIRING
(Superseded to 03539800)

$

$

Not available

3

Gravely 036117

SWITCH, LIGHT
(Superseded to 51513800)

$

$

Not available

4

FUSE, 6 AMP

$

$

Not available

5

Gravely 044762

CABLE, 10" STARTER
(Superseded to 03561900)

$

$

Not available

Gravely 045395

CABLE
(Superseded to 03569500)

$

$

Not available

6

Gravely 044763

BATTERY
(Superseded to 09206000)

$

$

Not available

7

Gravely 044764

CABLE, 46" GROUND
(Superseded to 03562000)

$

$

Not available

8

Gravely 044765

CABLE, 43"
(Superseded to 03562100)

$

$

Not available

Gravely 045388

RELAY
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

9

Gravely 044766

SOLENOID
(Superseded to 03551000)

$43.99

$

In Stock, Qty 9

0

Gravely 045387

REGULATOR
(Superseded to 20817700)

$

$

Not available

10

Gravely 044767

ASSEMBLY, IGNITION SWITCH AND KEY
(Superseded to 53507600)

$64.99

$

Usually ships in 4-12 days

0

Gravely 045397

ASSEMBLY, SWITCH
(Superseded to 53507700)

$114.99

$

Usually ships in 4-12 days

0

11

Gravely 044768

HARNESS, WIRING
(Superseded to 03578100)

$

$

Not available

11

Gravely 045396

HARNESS, WIRING
(Superseded to 03568100)

$

$

Not available

12

Gravely 036108

MODULE(W/CONNECTOR)
(Superseded to 53510500)

Note: (W/CONNECTOR)

$

$

Not available

13

Gravely 036121

SWITCH, SEAT
(Superseded to 03171600)

$

$

Not available

14

Gravely 036107

SWITCH, INTERLOCK
(Superseded to 02707800)

$

$

Not available

15

Gravely 039493

SWITCH
(Superseded to 03110700)

$40.99

$

Usually ships in 4-12 days

0

16

Gravely 036126

CLIP, ADAPTOR
(Superseded to 03005000)

$

$

Not available

17

Gravely 039488

ASSEMBLY, TAILLIGHT
(Superseded to 53128400)

$124.99

$

Usually ships in 4-12 days

0

NS

Gravely 033847

BOOT, BATTERY CABLE
(Superseded to 03384700)

$

$

Not available
