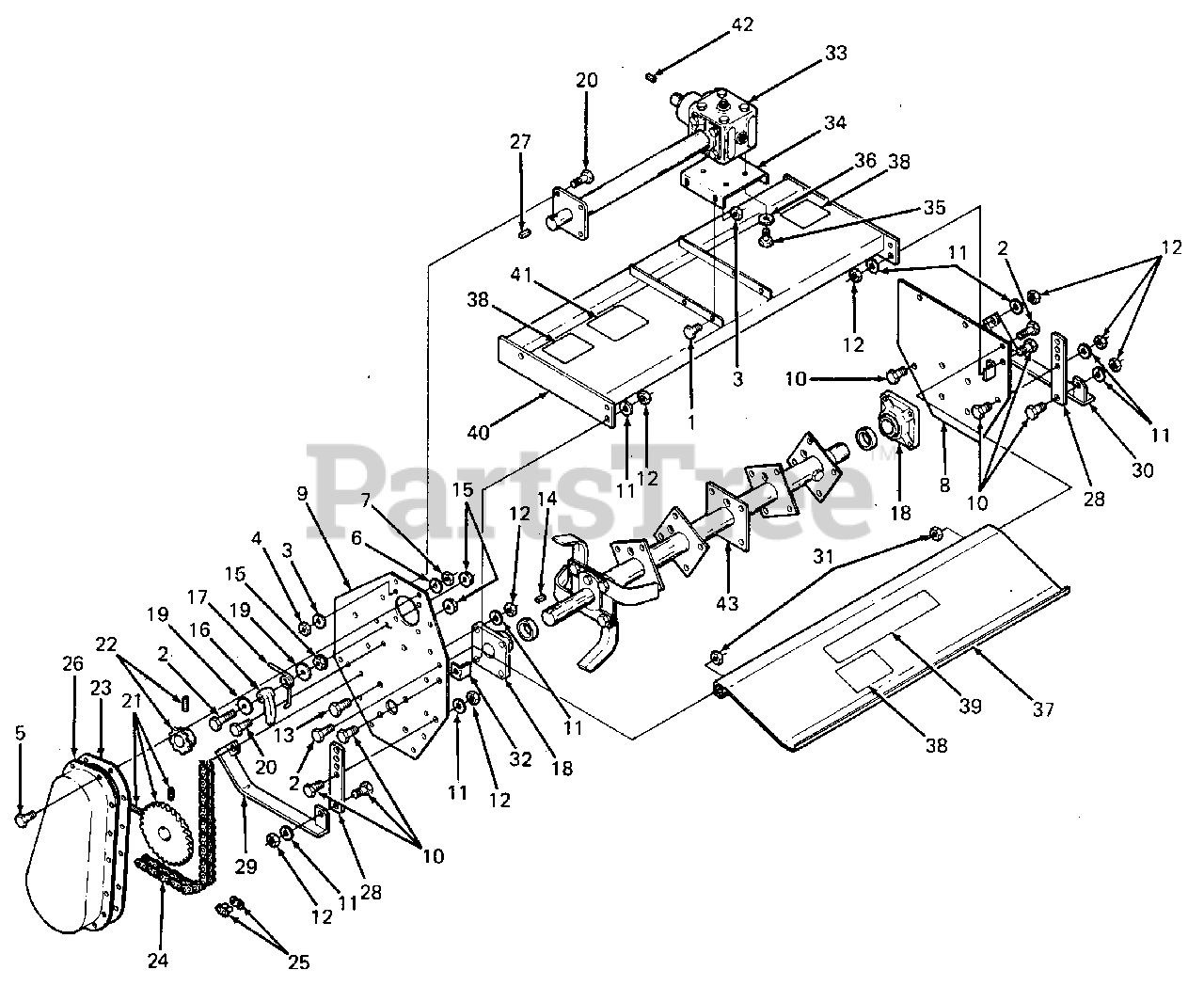

442 (190-442-100) - Cub Cadet 40" Rear PTO Tiller Base Frame & Related Parts Parts Diagram

40" Rear PTO Tiller

Base Frame & Related Parts Parts Diagram

  • Title

1

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X 3/4 Lg GR 5
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

2

Cub Cadet BU-20048

Screw, Hex Cap, 3/8-16 X 2-1/4 Lg GR 5

$

$

Currently unavailable

3

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR 5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0759

Screw, Hex Cap, 5/16-18 X 5/8 Lg GR 5

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR 5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet BU-80629

Plate, RH Side

$

$

Not available

9

Cub Cadet BU-80628

Plate, LH Side

$

$

Not available

10

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1-1/4 Lg GR 5

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3034

Nut, Hex, 1/2-13 GR 5
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3181

Screw, Hex Cap, 1/2-13 X 1-1/2 Lg GR 5

$6.49

$

In Stock, only 1 left!

0

14

Cub Cadet BU-19

Key

$

$

Not available

15

Cub Cadet BU-50006913

Nut, Whiz, 3/8-16

$

$

Currently unavailable

16

Cub Cadet BU-81145

Chain Tensioner

$

$

Not available

17

Cub Cadet BU-81786

Spring, Chain Tensioner

$

$

Currently unavailable

18

Cub Cadet BU-69513

Bearing Assy

$

$

Not available

19

Cub Cadet BU-15915

Washer, Flat, 3/8

$

$

Currently unavailable

20

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1-3/4 Lg GR 5
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet BU-80621

Sprocket 29 Tooth

$

$

Not available

22

Cub Cadet BU-80620

Sprocket 9 Tooth

$

$

Not available

23

Cub Cadet BU-81199

Gasket, Chain Cover

$

$

Not available

24

Cub Cadet BU-80638

Chain, Drive

$

$

Currently unavailable

25

Cub Cadet BU-80639

Link, Master

$

$

Currently unavailable

26

Cub Cadet BU-80625

Cover, Chain

$

$

Currently unavailable

27

Cub Cadet BU-19459

Key

$

$

Not available

28

Cub Cadet BU-80613

Bar, Depth Adjustment

$

$

Currently unavailable

29

Cub Cadet BU-80618

Skid Shoe LH

$

$

Currently unavailable

30

Cub Cadet BU-80617

Skid Shoe RH

$

$

Not available

31

Cub Cadet BU-20363

Nut, Lock, 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet BU-81318

Shield Stop

$

$

Currently unavailable

33

Cub Cadet BU-70606

Gearbox Assy

$

$

Currently unavailable

34

Cub Cadet BU-81099

Plate

$

$

Currently unavailable

35

Cub Cadet BU-44203

Screw, Hex Cap, M10 X 25 mm Lg GR 8.8

$

$

Currently unavailable

36

Cub Cadet BU-44198

Washer, Lock, M10

$

$

Currently unavailable

37

Cub Cadet BU-83110

Rear Shield w/Decals

Note: (Includes Ref. No. 38 & 39)

$

$

Currently unavailable

38

Cub Cadet BU-81067

Decal, Danger

$

$

Not available

39

Cub Cadet 779-3446

Decal, Cub Cadet Logo

$

$

Currently unavailable

40

Cub Cadet BU-83111

Frame w/Decals (Includes Ref. No. 38 [Qty 2] & 41)

$

$

Currently unavailable

41

Cub Cadet BU-78413

Decal, Warning

$

$

Not available

42

Cub Cadet BU-20335

Key

$

$

Currently unavailable

43

Cub Cadet BU-81409

Rotor Assy

$

$

Currently unavailable
