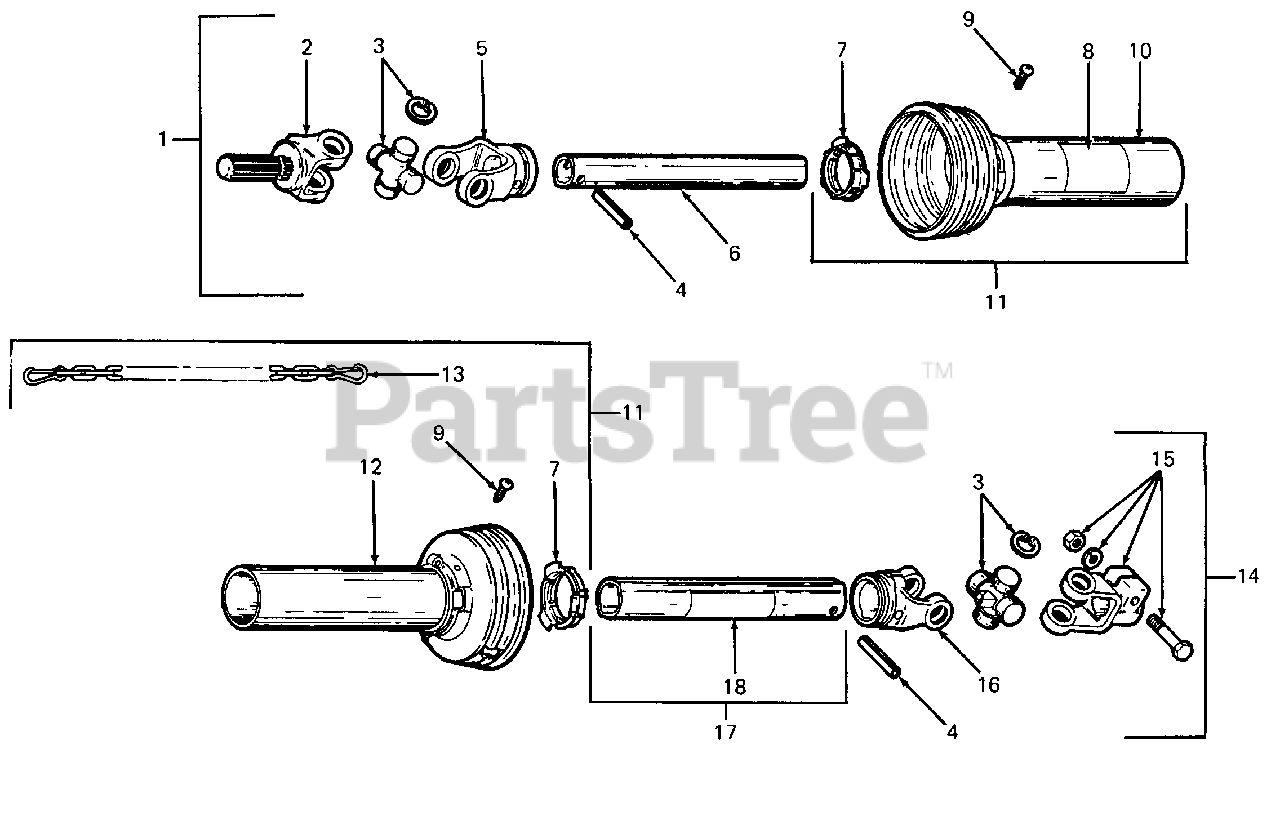

442 (190-442-100) - Cub Cadet 40" Rear PTO Tiller Driveshaft Assembly Parts Diagram

40" Rear PTO Tiller

Driveshaft Assembly Parts Diagram

  • Title

Cub Cadet BU-82986

Drive Shaft Assy Complete

$

$

Not available

1

Cub Cadet BU-83132

Outer Half Assy, Shielded

Note: (Includes Ref. No. 2, 3, 4, 5, 6, 7, 8, 9 & 10)

$

$

Not available

2

Cub Cadet BU-83015

Yoke, Spline, 1"-15

$

$

Not available

3

Cub Cadet BU-83016

Bearing Kit, Cross

$

$

Not available

4

Cub Cadet BU-83213

Pin, Spring

$

$

Not available

5

Cub Cadet BU-83212

Yoke, Inboard

$

$

Not available

6

Cub Cadet BU-83018

Inner Profile

$

$

Not available

7

Cub Cadet BU-83023

Bearing Ring

$

$

Not available

8

Cub Cadet BU-78608

Decal

$

$

Not available

9

Cub Cadet BU-83021

Screw

$

$

Not available

10

Shield, Outer

Note: (Order Shield Kit Ref. No. 11)

$

$

Not available

11

Cub Cadet BU-83314

Shield Kit (Includes Ref. No. 7 [Qty 2], 8, 9 [Qty 2], 10, 12 & 13)

$

$

Currently unavailable

12

Shield, Inner

Note: (Order Shield Kit Ref. No. 11)

$

$

Not available

13

Cub Cadet BU-83020

Chain, Safety

$

$

Currently unavailable

14

Cub Cadet BU-83133

Inner Half Assy, Shielded

Note: (Includes Ref. No. 3, 7, 9, 12, 15, 16, 17 & 18)

$

$

Not available

15

Cub Cadet BU-83022

Yoke

$

$

Not available

16

Cub Cadet BU-83209

Yoke, Inboard

$

$

Not available

17

Cub Cadet BU-83019

Outer Profile w/Decal

Note: (Includes Ref. No. 18)

$

$

Not available

18

Cub Cadet BU-78786

Decal

$

$

Not available
