44345 - Gravely 44 Gallon Grass Bagger for 4-Wheel Tractor 44 GALLON CAN GRASS CATCHER Parts Diagram

44 Gallon Grass Bagger for 4-Wheel Tractor

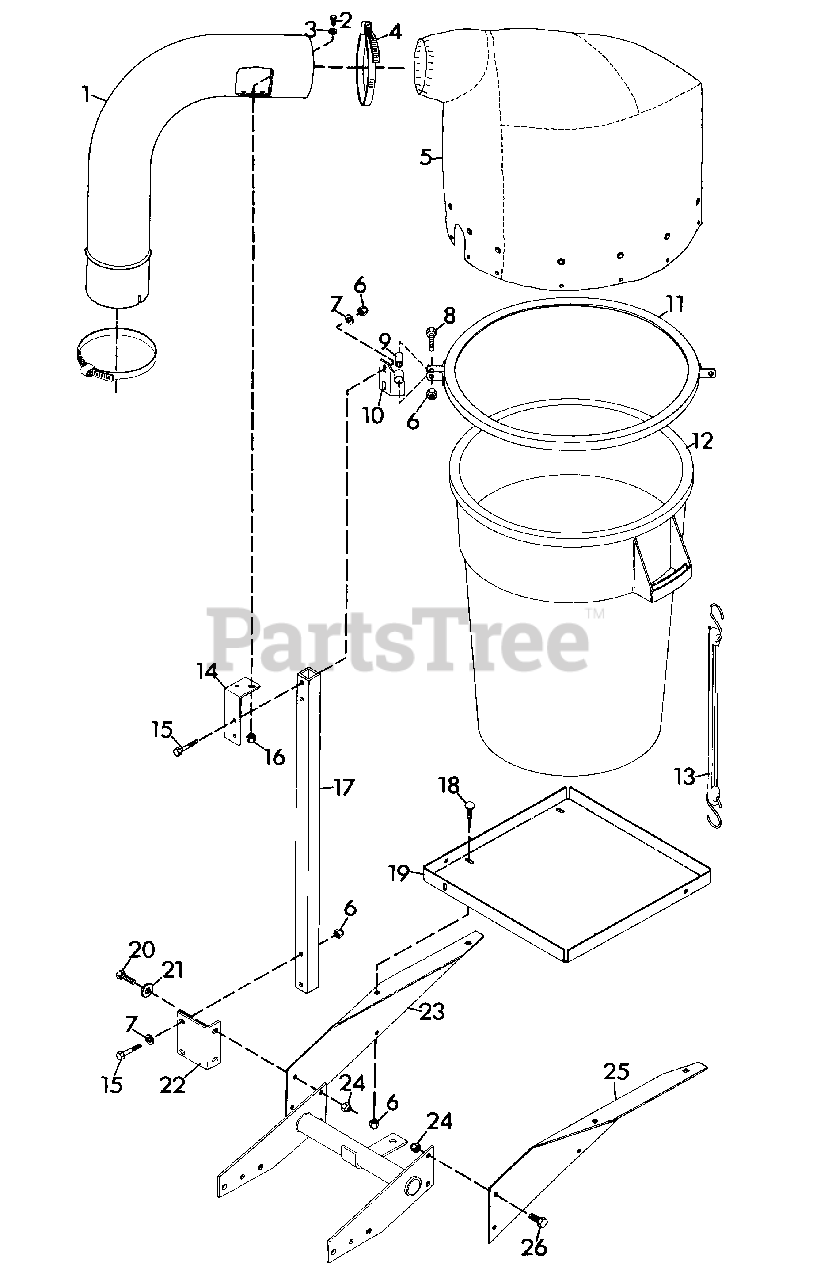

44 GALLON CAN GRASS CATCHER Parts Diagram

  • Title

1

Gravely 042298

TUBE, BLOWER TO CAN
(Superseded to 08658100)

$119.99

$

Usually ships in 4-12 days

0

2

Gravely 180075

BOLT, HEX 5/16-18X.625
(Superseded to 05901832)

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

4

Gravely 036996

CLAMP
(Superseded to 03022400)

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 043002

COVER, GRASS CATCHER
(Superseded to 08944900)

$

$

Not available

6

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

7

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 11

0

9

Gravely 019263

BUSHING, .385X.625X1.00
(Superseded to 08559600)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 042998

WELDMENT, PIVOT BRACKET
(Superseded to 08944600)

$

$

Not available

11

Gravely 042995

WELDMENT, RING
(Superseded to 08944300)

$

$

Not available

12

Gravely 038085

CAN, GRASS
(Superseded to 08707400)

$

$

Not available

13

Gravely 043001

STRAP, HOLD DOWN
(Superseded to 07528100)

$

$

Not available

14

Gravely 042232

BRACKET, TUBE
(Superseded to 08942700)

$

$

Not available

15

Gravely 180134

BOLT, HEX 3/8-16X2.50
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

17

Gravely 044330

TUBE, VAC HOSE
(Superseded to 08761800)

$

$

Not available

18

Gravely 120915

BOLT, 3/8-16X1 RD HD SQ NK

$

$

Not available

19

Gravely 038081

TRAY, SUPPORT
(Superseded to 08741900)

$

$

Not available

20

Gravely 180177

BOLT, HEX 1/2-13X1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

21

Gravely 120390

WASHER, FLAT .563X1.375X.109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

22

Gravely 044331

BRACKET, TUBE SUPPORT
(Superseded to 08761900)

$

$

Not available

23

Gravely 042303

RAIL, RIGHT SIDE
(Superseded to 08758800)

$

$

Not available

24

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 042302

RAIL, LEFT SIDE
(Superseded to 08758700)

$

$

Not available

26

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0
