44424 TE - Toro 122cm ProLine Walk-Behind Mower, Floating Deck (SN: 406500000 - 406610857) Operator Control Assembly Parts Diagram

122cm ProLine Walk-Behind Mower, Floating Deck

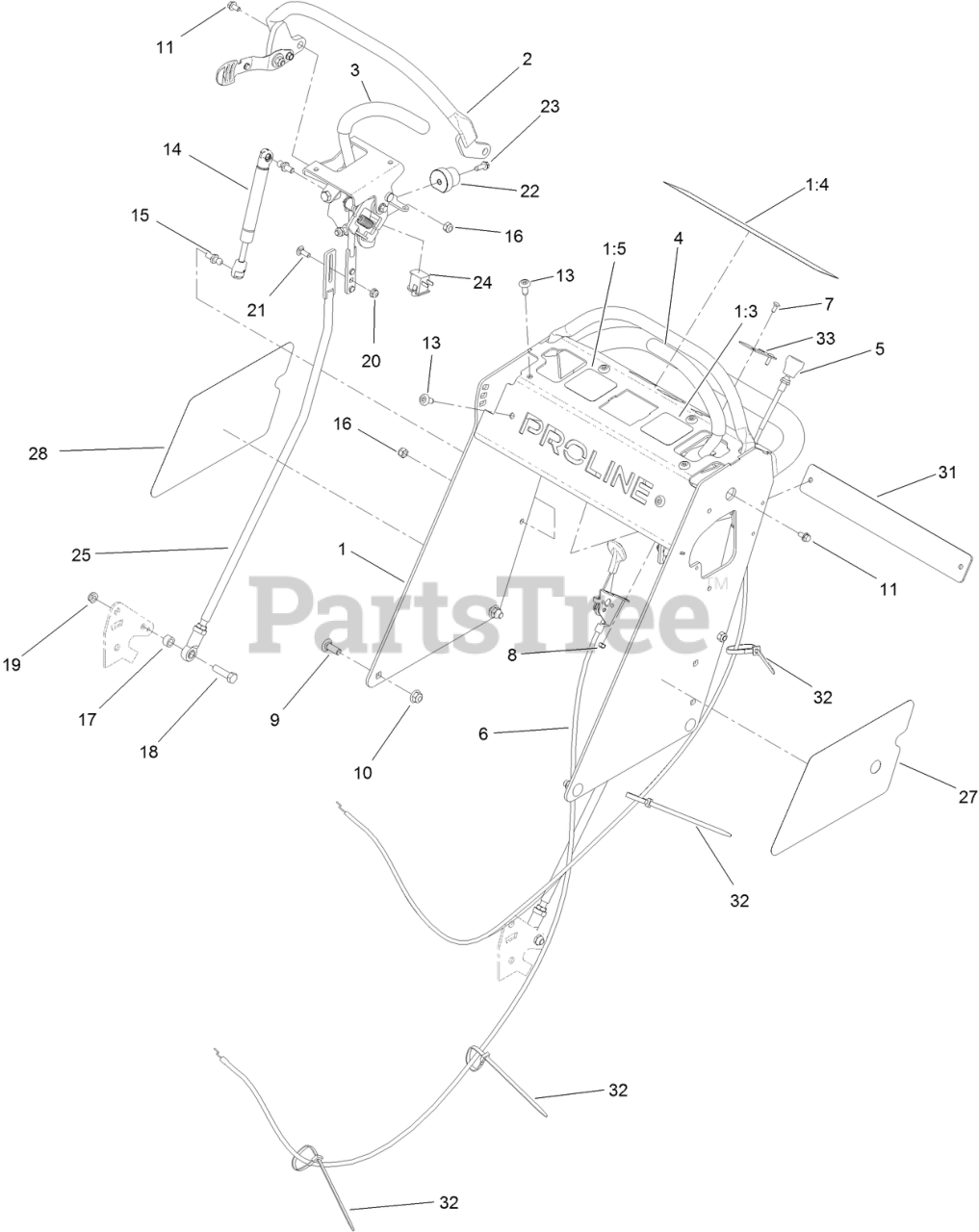

Operator Control Assembly Parts Diagram

  • Title

1

Toro 139-2850

TOWER ASM

$501.99

$

Usually ships in 3-6 days

0

1:3

Toro 138-8816

DECAL-OPC CONTROL, LEFT

$6.99

$

Usually ships in 3-6 days

0

1:4

Toro 138-8818

DECAL-WARNING, CONTROL

$11.99

$

Usually ships in 3-6 days

0

1:5

Toro 139-2874

DECAL-OPC CONTROL, RIGHT

$6.99

$

Usually ships in 3-6 days

0

2

Toro 139-1475

REFERENCE BAR ASSEMBLY

$

$

Currently unavailable

3

Toro 139-1532

CONTROL HANDLE ASM, RH

$289.99

$

Usually ships in 3-6 days

0

4

Toro 139-1487

CONTROL HANDLE ASM, LH

$289.99

$

Usually ships in 3-6 days

0

5

Toro 126-2107

CABLE, CHOKE

$46.99

$

In Stock, Qty 7

0

6

Toro 109-3958

CONTROL-THROTTLE

$42.99

$

In Stock, Qty 20+

0

7

Toro 3229-34

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

8

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 119-1065

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

13

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

14

Toro 139-1523

DAMPER

$49.99

$

Usually ships in 3-6 days

0

15

Toro 103-5752

STUD-BALL

$7.99

$

Usually ships in 3-6 days

0

16

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 121-2608

SPACER

$3.99

$

Usually ships in 3-6 days

0

18

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

19

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

20

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

22

Toro 126-1499

CAM

$7.99

$

Usually ships in 3-6 days

0

23

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

24

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

25

Toro 139-2913

CONTROL ROD ASM

$39.99

$

Usually ships in 3-6 days

0

27

Toro 140-4253

DECAL-PROLINE, LH

$15.99

$

Usually ships in 3-6 days

0

28

Toro 140-4254

DECAL-PROLINE, RH

$15.99

$

Usually ships in 3-6 days

0

31

Toro 140-4251-03

PLATE-COVER

$13.99

$

Usually ships in 3-6 days

0

32

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

33

Toro 140-5486-03

PLATE-SPEED LIMITER

$4.99

$

Usually ships in 3-6 days

0
