44427 - Toro 54" ProLine Walk-Behind Mower, Floating Deck (SN: 406959897 - 406959899) Transmission Assembly Parts Diagram

54" ProLine Walk-Behind Mower, Floating Deck

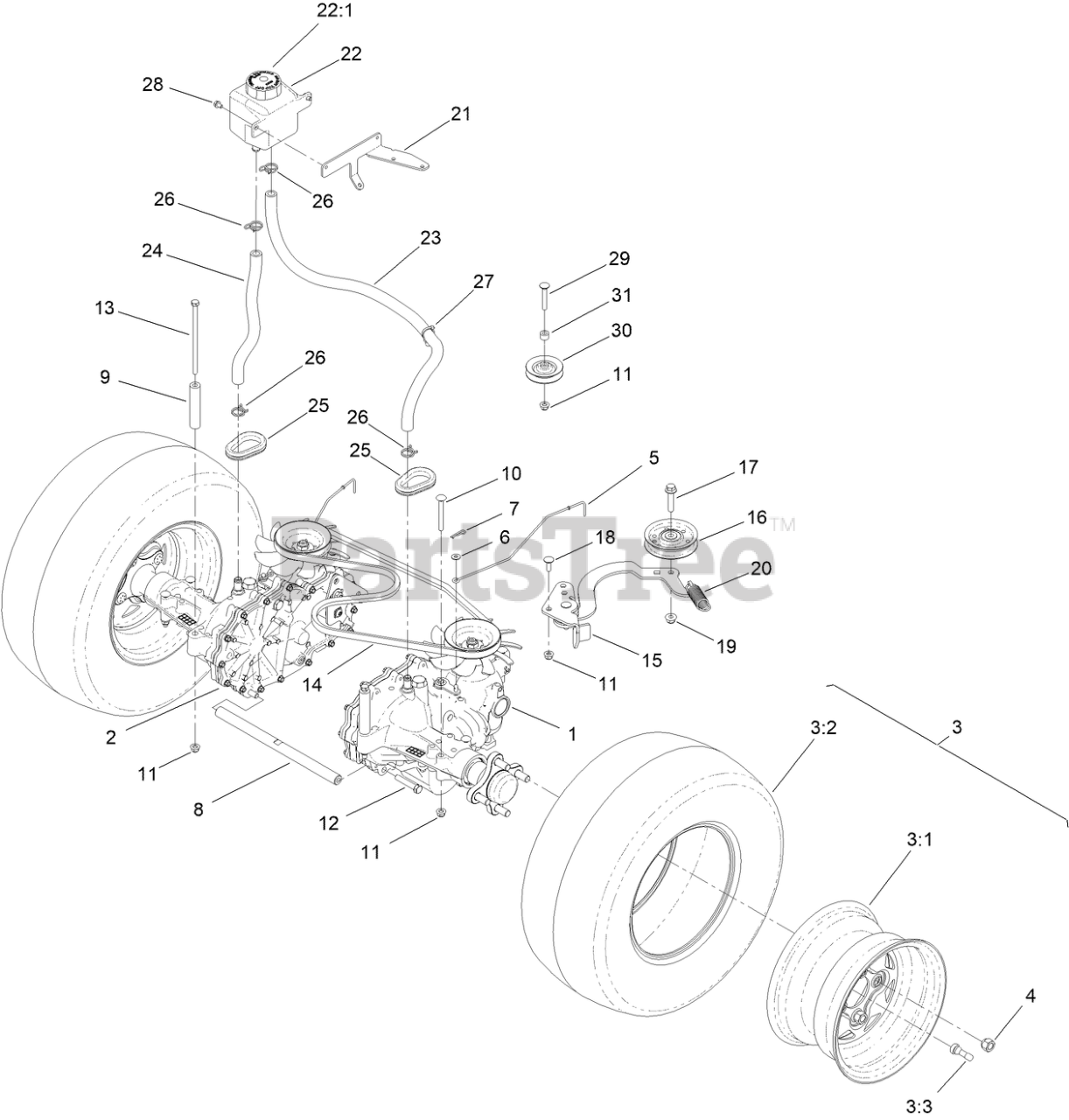

Transmission Assembly Parts Diagram

  • Title

1

Toro 140-7714

TRANSMISSION, ZT-2800 LH

$1509.99

$

Usually ships in 3-6 days

0

2

Toro 140-7715

TRANSMISSION, ZT-2800 RH

$1509.99

$

Usually ships in 3-6 days

0

3

Toro 139-5580

WHEEL AND TIRE ASM

$248.99

$

Usually ships in 3-6 days

0

3:1

Toro 139-5581

RIM-10"

$143.99

$

Usually ships in 3-6 days

0

3:2

Toro 139-5582

TIRE

$186.99

$

Usually ships in 3-6 days

0

3:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.99

$

In Stock, Qty 6

0

4

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

5

Toro 139-5592

ROD-BYPASS

$13.99

$

Usually ships in 3-6 days

0

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

7

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

8

Toro 117-8585

SHAFT-CROSS, HYDRO

$49.99

$

Usually ships in 3-6 days

0

9

Toro 138-5803

SPACER - TRANSMISSION

$20.99

$

Usually ships in 3-6 days

0

10

Toro 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 13

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 4 left!

0

12

Toro 94-7972

SCREW-HH W/LOCTITE

$5.49

$

In Stock, only 2 left!

0

13

Toro 1-800286

SCREW-HH

$

$

Not available

14

Toro 112-3799

BELT-V

$100.99

$

In Stock, only 1 left!

0

15

Toro 139-2899

IDLER ARM ASM

$72.99

$

Usually ships in 3-6 days

0

16

Toro 92-7101

PULLEY-IDLER, FLAT

$44.99

$

In Stock, only 1 left!

0

17

Toro 3234-19

SCREW-HHF

$3.49

$

In Stock, Qty 6

0

18

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

19

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 138-6814

SPRING-EXTENSION

$8.99

$

Usually ships in 3-6 days

0

21

Toro 139-7914-03

BRACKET - EXPANSION TANK

$31.99

$

Usually ships in 3-6 days

0

22

Toro 109-2250

TANK-HYD

$71.99

$

In Stock, only 2 left!

0

22:1

Toro 109-3320

CAP-RESERVOIR, HYD

$30.99

$

In Stock, only 2 left!

0

23

Toro 136-4182

HOSE-HYDRO

$28.99

$

Usually ships in 3-6 days

0

24

Toro 121-2952

HOSE-OVERFLOW

$5.99

$

In Stock, only 1 left!

0

25

Toro 240-12

GROMMET

$36.99

$

Usually ships in 3-6 days

0

26

Toro 117-1193

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

27

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 5

0

28

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

29

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 7

0

30

Toro 119-8822

PULLEY-IDLER

$26.99

$

In Stock, Qty 6

0

31

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0
