44444 - Gravely 72" Deck for Pro-Master 400 Mower MOWER DECK Parts Diagram

72" Deck for Pro-Master 400 Mower

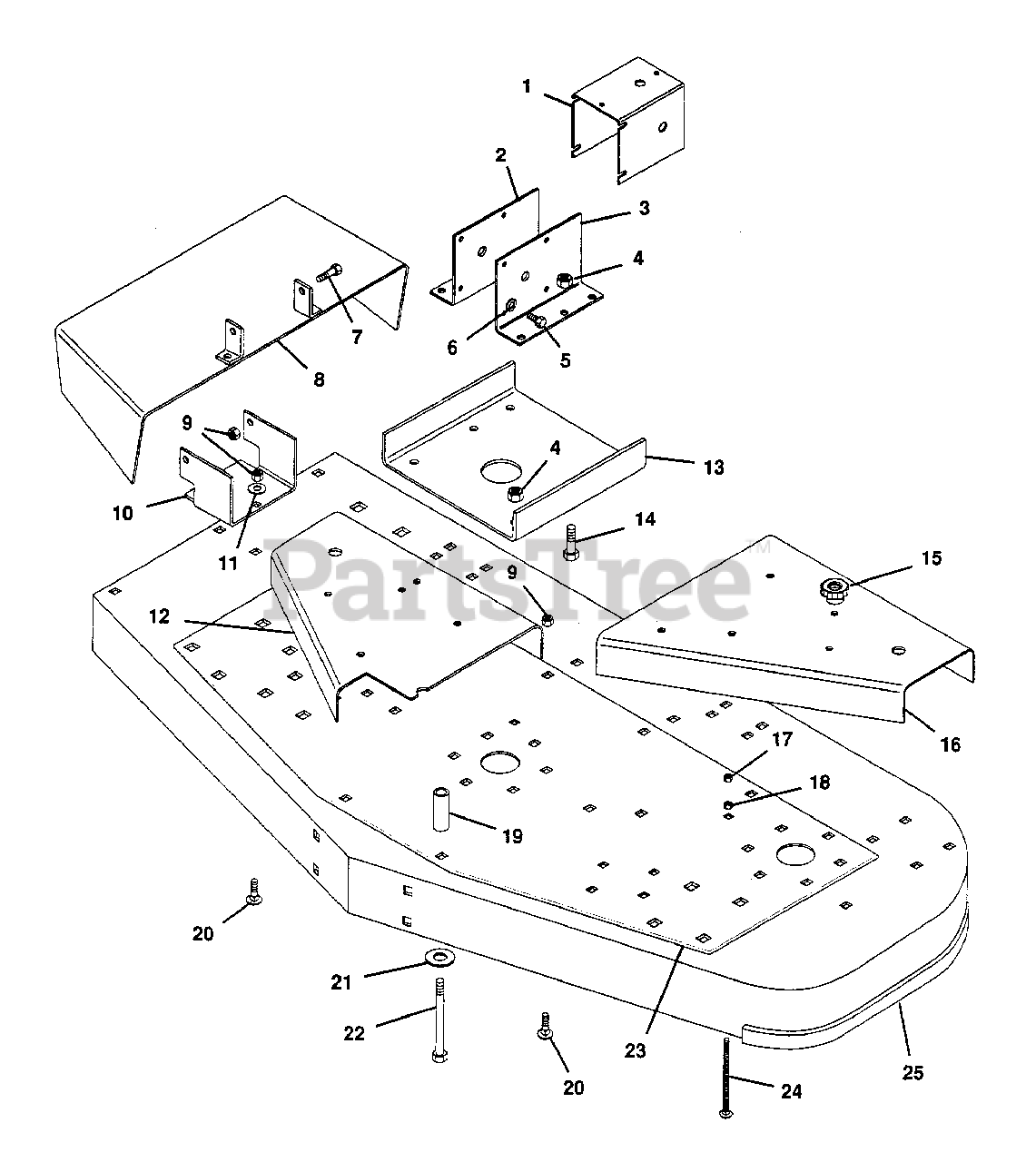

MOWER DECK Parts Diagram

  • Title
1

Gravely 047332

Shield, U-Joint
(Superseded to 08981900)

$6.65

$

Usually ships in 4-12 days

0

2

Gravely 048968

Bracket, Gearbox Mounting R.H.
(Superseded to 08986100)

$13.36

$

Usually ships in 4-12 days

0

3

Gravely 048969

Bracket, Gearbox Mounting L.H.
(Superseded to 08986200)

$13.36

$

Usually ships in 4-12 days

0

4

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.80

$

In Stock, Qty 16

0

5

Gravely 180121

Bolt, Hex 3/8-16x.875
(Superseded to 05932600)

$2.18

$

In Stock, only 1 left!

0

6

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$2.52

$

In Stock, Qty 20+

0

7

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$2.80

$

Usually ships in 4-12 days

0

8

Gravely 044906

Weldment, Discharge Chute
(Superseded to 08763200)

$

$

Not available

9

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.24

$

In Stock, Qty 17

0

10

Gravely 035667

Bracket, Discharge
(Superseded to 08738100)

$

$

Not available

11

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$2.52

$

In Stock, Qty 20+

0

12

Gravely 044786

Cover, Belt R.H.
(Superseded to 09090000)

$

$

Not available

13

Gravely 044783

Plate, Support
(Superseded to 08955300)

$

$

Not available

14

Gravely 180173

Bolt, Hex 1/2-13x1.00
(Superseded to 05901715)

$2.91

$

In Stock, Qty 8

0

15

Gravely 041674

Knob
(Superseded to 07534800)

$9.89

$

In Stock, Qty 5

0

16

Gravely 047337

Silkscreen, Belt Cover
(Superseded to 08955500)

$75.69

$

Usually ships in 4-12 days

0

17

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$2.24

$

In Stock, Qty 20+

0

18

Gravely 124824

Nut, Jam 5/16-18 Hex
(Superseded to 06500909)

$2.24

$

In Stock, Qty 19

0

19

Gravely 044905

Bush., St. .562x1.00x2.00 Stl.
(Superseded to 08981000)

$27.00

$

Usually ships in 4-12 days

0

20

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk
(Superseded to 06200235)

$2.80

$

In Stock, Qty 20+

0

21

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$2.52

$

In Stock, Qty 11

0

22

Gravely 180193

Bolt, Hex 1/2-13x3.75
(Superseded to 05901703)

$5.53

$

In Stock, only 3 left!

0

23

Gravely 044782

Plate, Deck Support
(Superseded to 08955200)

$

$

Not available

24

Gravely 040546

Bolt, 5/16-16x4.0 Rd Hd Sq Nk
(Superseded to 06222500)

$3.58

$

In Stock, only 4 left!

0

25

Gravely 050708

Weldment, 72" Deck
(Superseded to 09000100)

$

$

Not available

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.19

$

Usually ships in 4-12 days

0

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$25.49

$

Usually ships in 4-12 days

0

Gravely 033928

Decal, Warning Eye
(Superseded to 05350200)

$31.19

$

Usually ships in 4-12 days

0

Gravely 046263

Decal, Belt Diagram
(Superseded to 05212900)

$

$

Not available

Gravely 049720

Decal, Width of Cut
(Superseded to 07852100)

$9.34

$

In Stock, only 1 left!

0
