44454 - Toro 54" ProLine Walk-Behind Mower, Floating Deck (SN: 413000000 - 415299999) Engine Assembly Parts Diagram

54" ProLine Walk-Behind Mower, Floating Deck

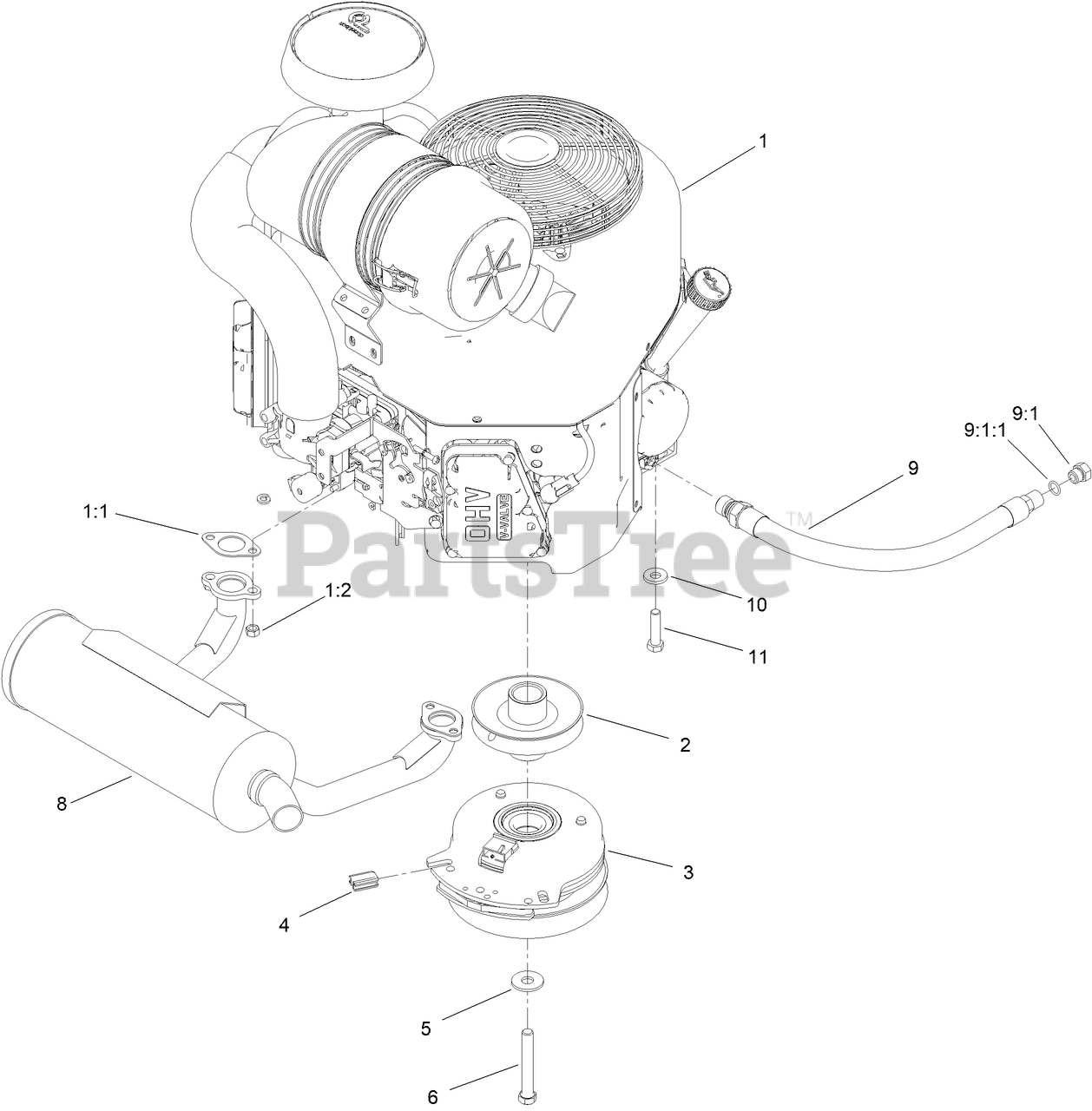

Engine Assembly Parts Diagram

  • Title

1

ENGINE KAWASAKI, FX691V

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1

ENGINE KAWASAKI, FX691V

Note: Not serviced separately

$

$

Not available

1:1

Toro 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

1:2

Toro 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

1:5

Toro 119-5945

ELEMENT-FILTER, AIR (INNER)

Note: Not illustrated

$56.99

$

In Stock, Qty 7

0

1:6

Toro 119-5944

ELEMENT-FILTER, AIR (OUTER)

Note: Not illustrated

$50.99

$

Usually ships in 3-6 days

0

1:7

Toro 95-9853

BOLT (5X18)

Note: Not illustrated

$1.49

$

Usually ships in 3-6 days

0

2

Toro 139-2887

PULLEY

$41.99

$

Usually ships in 3-6 days

0

3

Toro 139-2897

CLUTCH 5.695, 125FTLB, 1.125

$438.99

$

Usually ships in 3-6 days

0

4

Toro 120-2217

ISOLATOR-CLUTCH

$2.99

$

In Stock, Qty 15

0

5

Toro 94-2701

WASHER-HARDENED

$2.49

$

Usually ships in 3-6 days

0

6

Toro 126-7198

SCREW-HH W/LOCTITE

$20.99

$

In Stock, only 2 left!

0

8

Toro 116-3736

MUFFLER,HORIZONTAL

$332.99

$

Usually ships in 3-6 days

0

9

Toro 116-5052

Asm-Oil Drain Hose W/Plug

$55.99

$

Usually ships in 3-6 days

0

9:1

Toro 353-508

PLUG-HH

Note: Torque to 20-24 ft-lb

$8.99

$

In Stock, only 4 left!

0

9:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

10

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

11

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
