445 (445132) - Cub Cadet Rear-Engine Riding Mower (1982) Peerless Transmission Parts Diagram

Rear-Engine Riding Mower

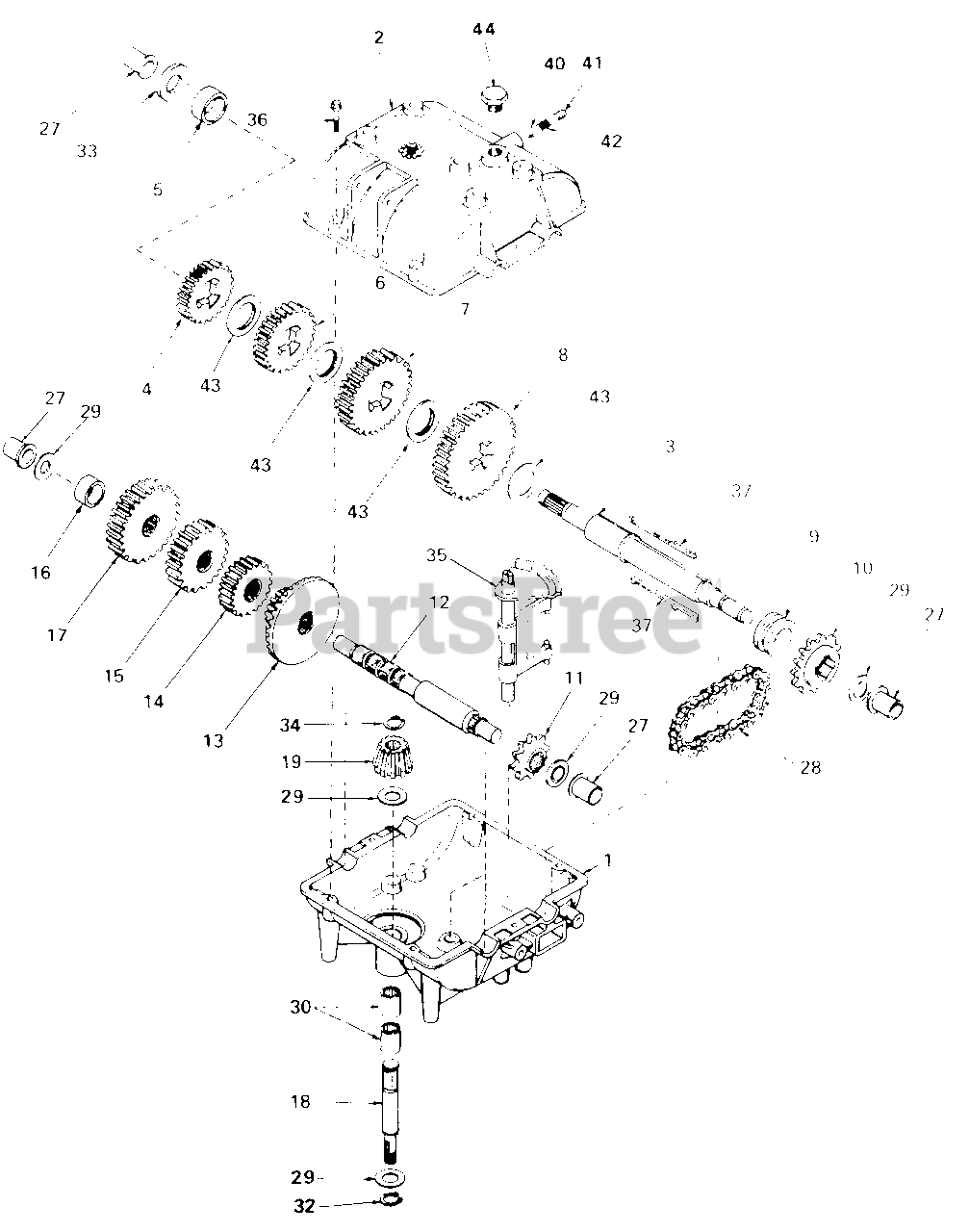

Peerless Transmission Parts Diagram

  • Title

1

Cub Cadet PE-770061

Case, Transmission
(Superseded to TC-799045)

$113.99

$

Usually ships in 3-12 days

0

2

Cub Cadet PE-772070

Cover, Transmission

$

$

Currently unavailable

3

Cub Cadet PE-776164

Shaft, Output & Brake

$

$

Not available

4

Cub Cadet PE-778121

Gear, Spur (20 teeth)
(Superseded to TC-778121A)

$46.99

$

Usually ships in 3-12 days

0

5

Cub Cadet PE-786072

Spacer

$

$

Not available

6

Cub Cadet PE-778123

Gear, Spur (25 teeth)
(Superseded to TC-778123A)

$48.99

$

Usually ships in 3-12 days

0

7

Cub Cadet PE-778124

Gear, Spur (30 teeth)

$

$

Currently unavailable

8

Cub Cadet PE-778125

Gear, Spur (35 teeth)
(Superseded to TC-778125)

$41.99

$

Usually ships in 3-12 days

0

9

Cub Cadet PE-784266

Collar, Shift
(Superseded to TC-784266)

$11.99

$

Usually ships in 3-12 days

0

10

Cub Cadet PE-786060

Sprocket (14 teeth)

$

$

Not available

11

Cub Cadet PE-786061

Sprocket (10 teeth)

$

$

Not available

12

Cub Cadet PE-776134

Shaft, Counter
(Superseded to TC-776134)

$98.99

$

In Stock, only 1 left!

0

13

Cub Cadet PE-778109

Gear, Bevel (42 tooth & 15 tooth spur gear)

$

$

Currently unavailable

14

Cub Cadet PE-778126

Gear, Spur (20 teeth)
(Superseded to TC-778126A)

$48.99

$

Usually ships in 3-12 days

0

15

Cub Cadet PE-778127

Gear, Spur (25 teeth)
(Superseded to TC-778127A)

$53.99

$

In Stock, only 3 left!

0

16

Cub Cadet PE-786071

Spacer

$

$

Not available

17

Cub Cadet PE-778129

Gear, Spur (30 teeth)

$

$

Not available

18

Cub Cadet PE-776140

Shaft, Input
(Superseded to TC-776140)

$29.99

$

Usually ships in 3-12 days

0

19

Cub Cadet PE-778113

Bevel Pinion, Input
(Superseded to TC-778113A)

$34.99

$

In Stock, only 1 left!

0

27

Cub Cadet PE-780105

Bushing, Flanged
(Superseded to TC-780105A)

$8.49

$

In Stock, Qty 11

0

28

Cub Cadet PE-786062

Chain, Roller (No. 41 chain, 22 links)

$

$

Not available

29

Cub Cadet PE-780072

Race, Thrust
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet PE-780106

Bearing, Needle
(Superseded to TC-780086)

$12.99

$

In Stock, Qty 20+

0

32

Cub Cadet PE-792035

Ring, Retaining
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 14

0

33

Cub Cadet PE-780109

Washer

$

$

Not available

34

Cub Cadet PE-788040

Ring, Retaining
(Superseded to TC-788040)

$4.49

$

In Stock, Qty 5

0

35

Cub Cadet PE-784271

Rod & Fork Ass'y., Shift

$

$

Not available

36

Cub Cadet PE-792073

Screw, Hex Hd. Taptite, 1/4-20 x 1 1/4
(Superseded to TC-792073A)

$1.99

$

In Stock, only 3 left!

0

37

Cub Cadet PE-792089A

Key
(Superseded to TC-792089B)

$35.99

$

In Stock, Qty 5

0

40

Cub Cadet PE-792077

Ball, Steel, 5/16"
(Superseded to TC-792077A)

$4.49

$

In Stock, Qty 6

0

41

Cub Cadet PE-792078

Screw, Set, 3/8-16 x 3/8
(Superseded to TC-792078)

$4.49

$

In Stock, only 1 left!

0

42

Cub Cadet PE-792079

Spring
(Superseded to TC-792079)

$4.49

$

In Stock, only 2 left!

0

43

Cub Cadet PE-780108

Washer, Thrust
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

44

Cub Cadet PE-792074

Plug

$

$

Not available
