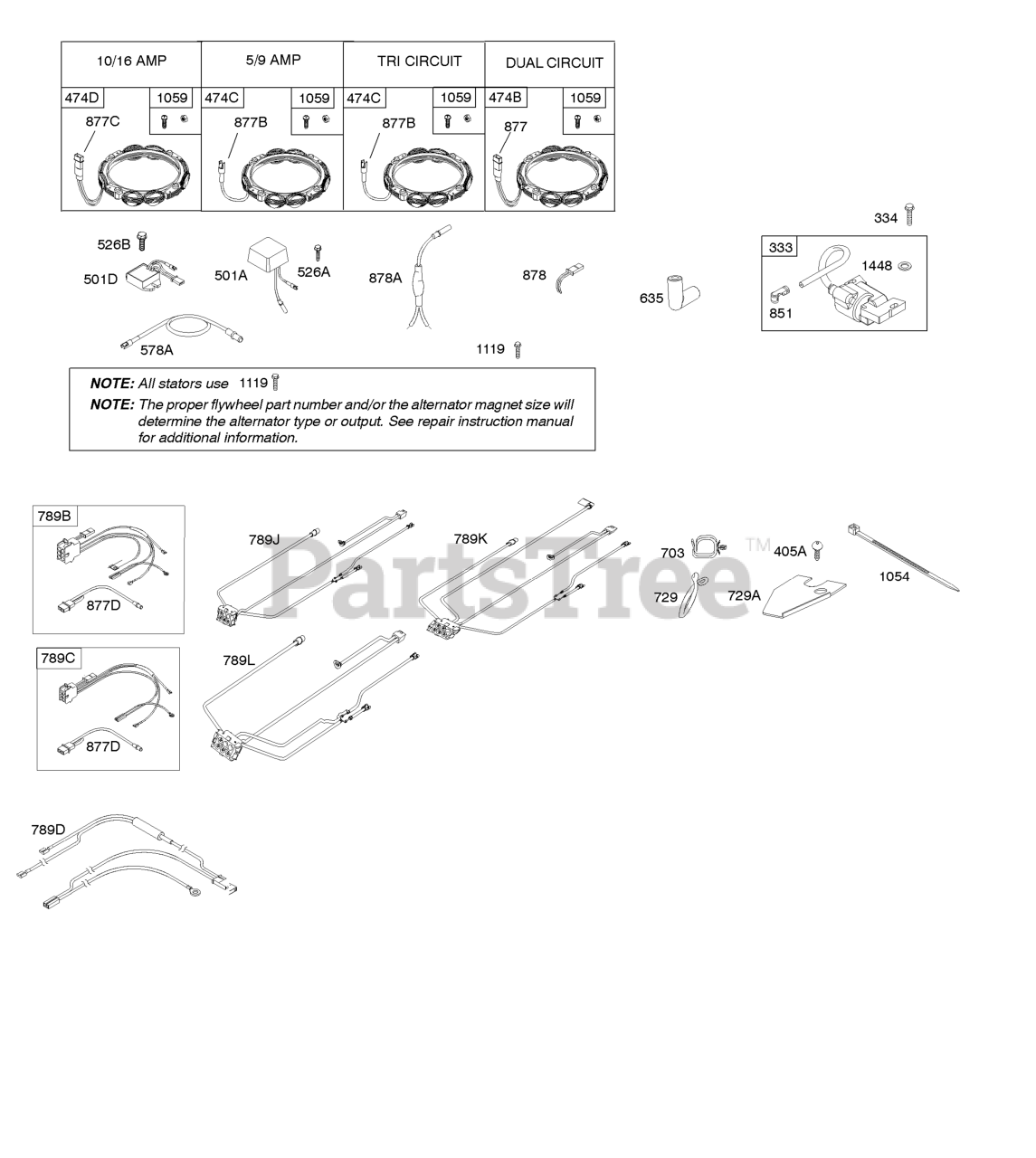

445877-0130-E2 - Briggs & Stratton Vertical Engine Alternator, Ignition Parts Diagram

Vertical Engine

Alternator, Ignition Parts Diagram

  • Title
333

Briggs & Stratton 691060

Armature-Magneto
(Superseded to 592846)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

405A

Briggs & Stratton 697820

SCREW

Note: (Back Plate) (Mounting)

$4.49

$

In Stock, only 3 left!

0

474B

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

Note: (Dual Circuit)

$101.99

$

In Stock, Qty 10

0

474C

Briggs & Stratton 696457

Alternator
(Superseded to 592829)

Note: (Tri Circuit Or 5/9 Amp. Regulated)

$102.99

$

Usually ships in 2-12 days

0

474D

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

Note: (10-16 Amp Regulated)

$101.99

$

In Stock, Qty 20+

0

501A

Briggs & Stratton 794360

REGULATOR

Note: (5/9 Amp.)

$64.99

$

In Stock, only 4 left!

0

501D

Briggs & Stratton 797375

Regulator
(Superseded to 845907)

Note: (10-16 AMP.)

$61.99

$

In Stock, Qty 20+

0

526A

Briggs & Stratton 691129

SCREW

Note: (Regulator)

$3.99

$

In Stock, Qty 6

0

526B

Briggs & Stratton 691108

SCREW

Note: (Regulator)

$3.49

$

In Stock, Qty 20+

0

578A

Briggs & Stratton 797463

Wire Assembly

Note: (14" Long-Used On Cylinder 1 Mounted Regulator)

$

$

Not available

578A

Briggs & Stratton 691208

Wire Assembly

Note: (18" Long-Used On Cylinder 2 Mounted Regulator)

$20.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

$6.99

$

Usually ships in 2-12 days

0

729

$4.49

$

Usually ships in 2-12 days

0

729A

Briggs & Stratton 797454

CLIP, Wire
(Superseded to 593826)

$5.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 698329

HARNESS, Wiring

Note: (6 Pin, #2 Side Regulator. Without EFM. Wire Assembly Includes Green OilPressure Switch Wire. Remove If Not Needed. Service Kit Includes RedRegulator To 2 Pin Jumper Wire.)

$36.99

$

In Stock, Qty 5

0

789J

Briggs & Stratton 797424

Harness-Wiring
(Superseded to 591392)

Note: (6 Pin, #1 Side Regulator. Without EFM. Without Oil Pressure Switch.) Used Before Code Date 12042300

$35.99

$

In Stock, only 1 left!

0

789K

Briggs & Stratton 797460

Harness-Wiring
(Superseded to 591393)

Note: (6 Pin, #1 Side Regulator. Without EFM. Without Oil Pressure Switch.Wire Assembly Includes Green Oil Pressure Switch Wire.) Used Before Code Date 12042300

$45.99

$

In Stock, only 1 left!

0

789L

Briggs & Stratton 797461

Harness-Wiring

Note: (6 Pin, #1 Side Regulator. Without EFM. Without Oil Pressure Switch.Wire Assembly Includes Blue Hour Meter/Oil Minder Wire.) Used Before Code Date 12042300

$57.99

$

Usually ships in 2-12 days

0

789D

Briggs & Stratton 591391

Harness-Wiring

Note: (2 Pin, #1 And #2 Side Regulator. Without EFM.) Used After Code Date 12042200

$45.99

$

In Stock, only 2 left!

0

789J

Briggs & Stratton 591392

HARNESS, Wiring

Note: (6 Pin, #1 Side Regulator. Without EFM. Without Oil Pressure Switch.) Used After Code Date 12042200

$35.99

$

In Stock, only 1 left!

0

789K

Briggs & Stratton 591393

HARNESS, Wiring

Note: (6 Pin, #1 Side Regulator. Without EFM. Without Oil Pressure Switch.Wire Assembly Includes Green Oil Pressure Switch Wire.) Used After Code Date 12042200

$45.99

$

In Stock, only 1 left!

0

789L

Briggs & Stratton 591394

HARNESS, Wiring

Note: (6 Pin, #1 Side Regulator. Without EFM. Without Oil Pressure Switch.Wire Assembly Includes Blue Hour Meter/Oil Minder Wire.) Used After Code Date 12042200

$45.99

$

Usually ships in 2-12 days

0

789D

Briggs & Stratton 691220

Harness-Wiring

Note: (2 Pin, #1 And #2 Side Regulator. Without EFM.) Used Before Code Date 12042300

$43.99

$

Usually ships in 2-12 days

0

789C

Briggs & Stratton 696576

Harness-Wiring

Note: (6 Pin, #2 Side Regulator. Without EFM. Without Oil Pressure Switch.Wire Assembly Includes Blue Hour Meter/Oil Minder Wire. Service KitIncludes Red Regulator To 2 Pin Jumper Wire.)

$40.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

877B

Briggs & Stratton 393537

Wire/Connector-Alternator

Note: (Tri Circuit)

$

$

Not available

877C

Briggs & Stratton 399916

Wire/Connector-Alternator

$12.99

$

Usually ships in 2-12 days

0

877D

Briggs & Stratton 790544

WIRE/CONNECTOR, Alternator

$43.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 398661

Harness-Alternator

$34.99

$

Usually ships in 2-12 days

0

878A

Briggs & Stratton 691955

Harness-Alternator

$69.99

$

In Stock, only 1 left!

0

1054

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1448

Briggs & Stratton 690260

Washer

Note: (Magneto Armature)

$8.99

$

In Stock, only 2 left!

0
