446 (190-446-100) - Cub Cadet 46" Mower Deck Deck & Attachments Parts Diagram

46" Mower Deck

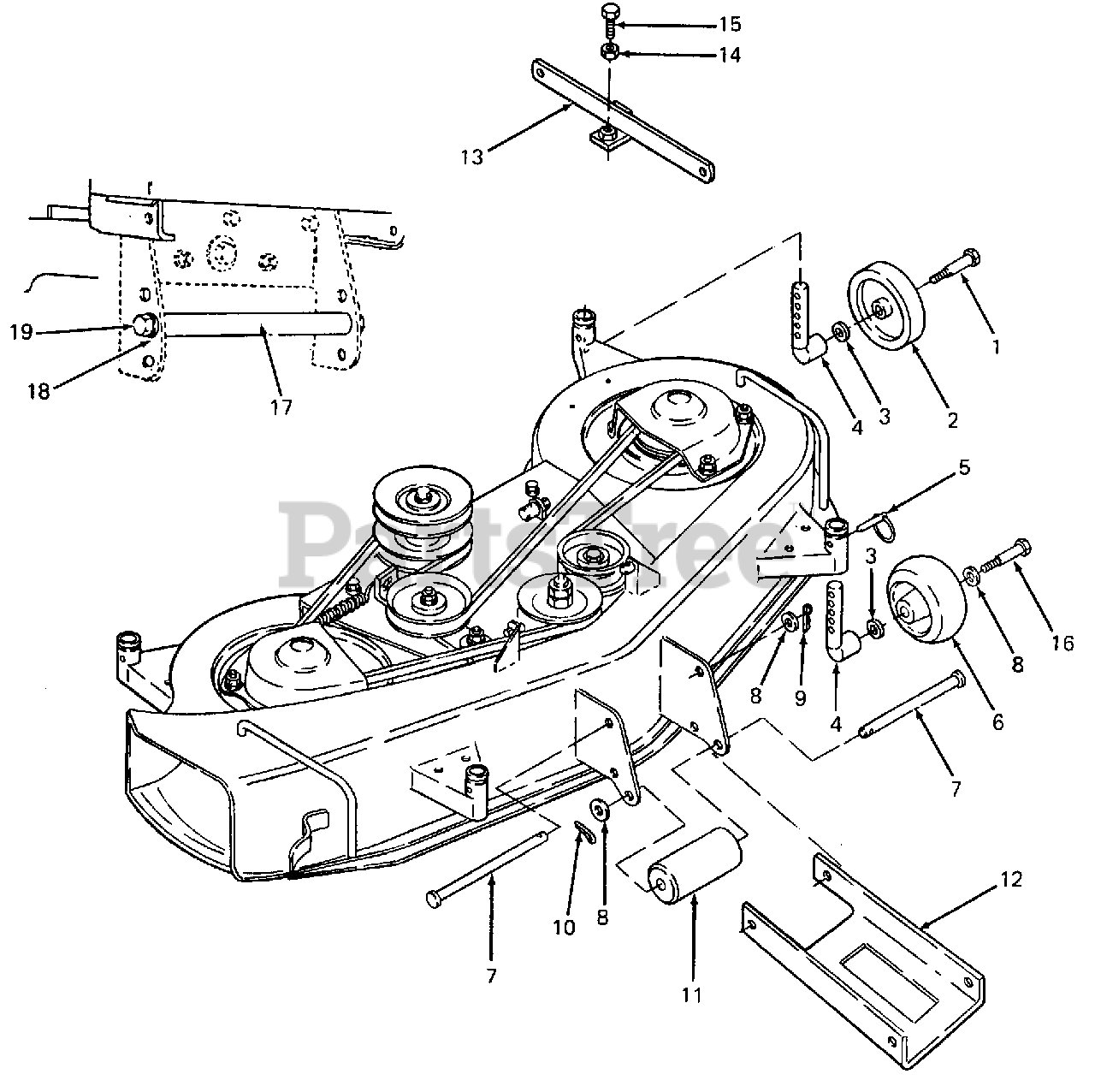

Deck & Attachments Parts Diagram

  • Title

1

Cub Cadet 738-0373

Screw, Shoulder
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

2

Cub Cadet 734-3062

Wheel, Gage, 5 in. Dia

$22.99

$

In Stock, only 2 left!

0

3

Cub Cadet 736-0105

Washer, Bell

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 711-3256

Axle, Deck

$81.99

$

In Stock, only 3 left!

0

5

Cub Cadet 711-3266

Pin, Clevis w/Detent Ball

$16.99

$

In Stock, Qty 20+

0

6

Cub Cadet 703-1890

Wheel, Ball w/Fitting, 5 in. Dia
(Superseded to 703-1890A)

$41.99

$

In Stock, Qty 20+

0

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 10

0

7

Cub Cadet 711-3068

Pin, Clevis, 1/2 X 7.68 Lg

$21.99

$

In Stock, only 1 left!

0

8

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .06

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 714-0149

Pin, Internal Cotter
(Superseded to 914-0149B)

$

$

Not available

10

Cub Cadet 714-3002

Pin, Cotter, 3/16 X 1.0 Lg

$3.99

$

In Stock, Qty 7

0

11

Cub Cadet 731-3005

Roller, Front

$30.99

$

In Stock, Qty 20+

0

12

Cub Cadet 703-1999

Bracket, Deck Front Support
(Superseded to 703-1999-0498)

Variations

703-1999-0498

Cub Cadet 703-1999-0498

Front Deck Support - OLD CUB YELLOW (0498)

$88.99

$

In Stock, only 1 left!

0

$88.99

$

In Stock, only 1 left!

0

13

Cub Cadet 703-1708

Stop, Lift

$

$

Not available

14

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 12

0

15

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 738-3056

Screw, Shoulder
(Superseded to 938-3056)

$9.99

$

In Stock, Qty 20+

0

17

Cub Cadet 711-3277

Rod, Reinforcement

$

$

Not available

18

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.99

$

In Stock, Qty 8

0

19

Cub Cadet 710-3043

Screw, Hex Cap, 1/2-13 X .75 Lg GR5

$

$

Not available
