446 s - Shindaiwa Chainsaw (EPA Version) Chain Brake, Clutch, Clutch Cover Parts Diagram

Chainsaw (EPA Version)

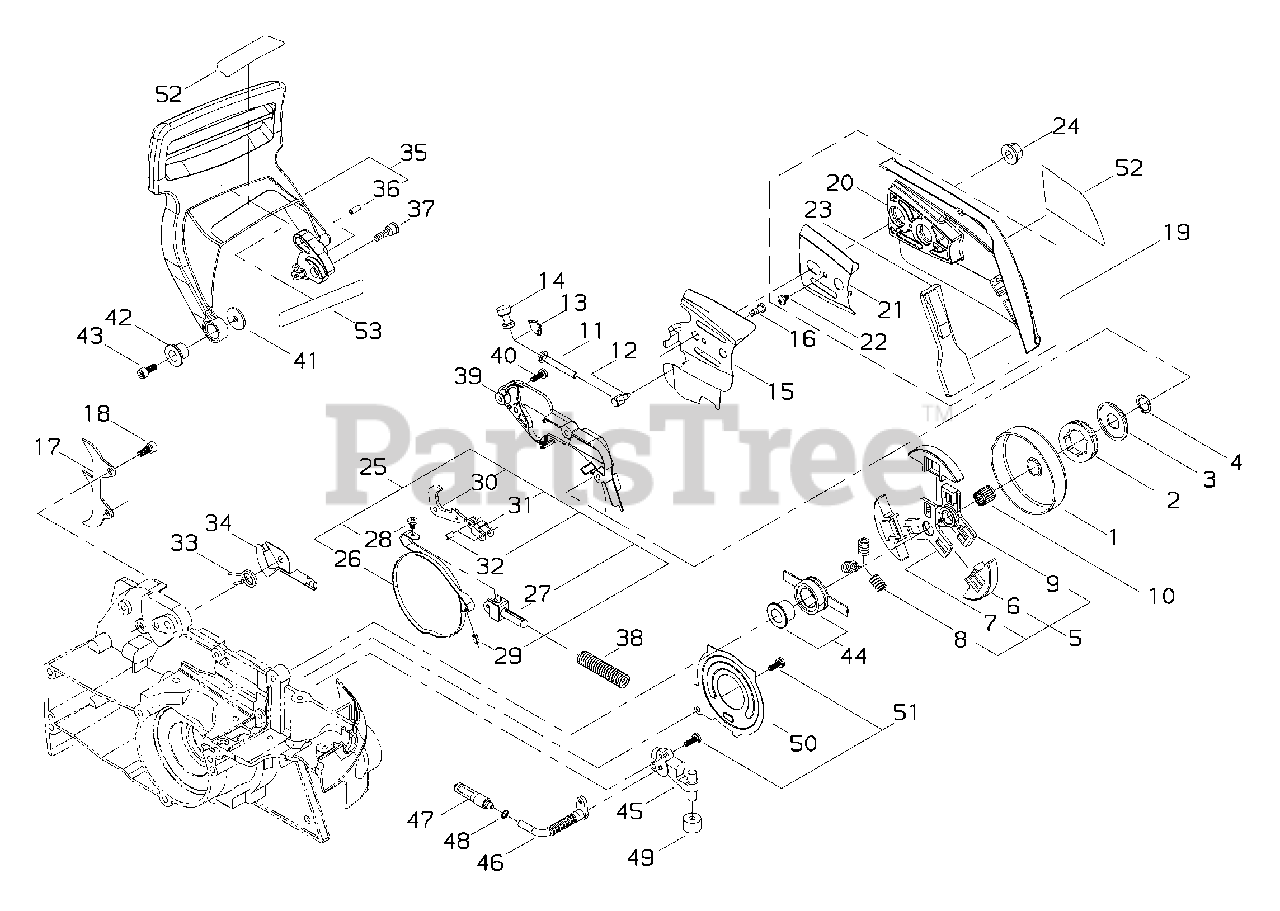

Chain Brake, Clutch, Clutch Cover Parts Diagram

  • Title

1

Echo 39311-51110

DRUM, CLUTCH
(Superseded to A556001120)

$57.99

$

In Stock, only 3 left!

0

2

Echo 22131-98120

SPROCKET, RIM
(Superseded to 17511412530)

$22.99

$

In Stock, Qty 6

0

3

Echo 39311-51320

COLLAR
(Superseded to V307000320)

$4.49

$

Usually ships in 2-4 days

0

4

Echo 02430-10100

RING, RETAINING - 10
(Superseded to 9242310000)

$1.49

$

Usually ships in 2-4 days

0

5

Echo 39311-51020

CLUTCH ASSY
(Superseded to A056000610)

Note: Includes ITEMS 5-9

$65.99

$

In Stock, only 2 left!

0

6

Echo 39311-51120

SHOE, CLUTCH
(Superseded to A555000210)

$9.49

$

In Stock, only 2 left!

0

7

Echo 39311-51130

HUB, CLUTCH - INNER
(Superseded to A552000230)

$13.99

$

In Stock, only 1 left!

0

8

Echo 22197-51230

SPRING, CLUTCH
(Superseded to V451000930)

$1.99

$

In Stock, Qty 7

0

9

Echo 22182-51241

HUB, CLUTCH - OUTER
(Superseded to A552000240)

$11.99

$

Usually ships in 2-4 days

0

10

Echo 22100-51310

BEARING, NEEDLE
(Superseded to V555000150)

$15.99

$

In Stock, Qty 10

0

11

Echo 22182-52620

SCREW
(Superseded to V253000610)

$7.49

$

In Stock, only 2 left!

0

12

Echo 22150-52440

TENSIONER, CHAIN
(Superseded to C309000110)

$2.99

$

In Stock, Qty 8

0

13

Echo 22182-52631

GUIDE
(Superseded to V152002430)

$1.99

$

In Stock, Qty 9

0

14

Echo 22182-52641

GEAR, TENSIONER
(Superseded to V651000790)

$10.99

$

In Stock, only 1 left!

0

15

Echo 39311-52130

PLATE, GUIDE - INNER
(Superseded to C305000250)

$20.99

$

Usually ships in 2-4 days

0

16

Echo 22173-56150

SCREW - 4X7
(Superseded to V252000470)

$1.49

$

In Stock, Qty 9

0

17

Echo 39311-52140

SPIKE
(Superseded to C304000130)

$23.99

$

Usually ships in 2-4 days

0

18

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, only 4 left!

0

19

Echo 39311-53010

CLUTCH COVER ASSY
(Superseded to P021026921)

Note: Includes ITEMS 19-23

$45.99

$

Usually ships in 2-4 days

0

20

Echo 39311-53110

COVER, CLUTCH
(Superseded to C300000681)

$13.99

$

Usually ships in 2-4 days

0

21

Echo 39311-53120

PLATE, GUIDE
(Superseded to 39311-53121)

$16.99

$

Usually ships in 2-4 days

0

22

Echo 01270-04062

SCREW - 4X6 -- TAPPING
(Superseded to 9137404006)

$1.49

$

Usually ships in 2-4 days

0

23

Echo 39311-53130

PROTECTOR
(Superseded to C302000030)

$2.99

$

In Stock, only 2 left!

0

24

Echo 22182-52411

NUT, GUIDE BAR
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

25

Echo 39311-54310

BRAKE BAND ASSY
(Superseded to C328000210)

Note: Includes ITEMS 25-32

$77.99

$

Usually ships in 2-4 days

0

26

Echo 39311-54110

BAND, BRAKE
(Superseded to C328000220)

$30.99

$

Usually ships in 2-4 days

0

27

Echo 39311-54320

HOLDER, BRAKE SPRING
(Superseded to C334000180)

$3.49

$

Usually ships in 2-4 days

0

28

Echo 01270-04103

SCREW - 4X10 -- TAPPING
(Superseded to 9138104010)

$1.49

$

Usually ships in 2-4 days

0

29

Echo 02427-40105

PIN - SPRING -- 4X8
(Superseded to 9304240100)

$1.49

$

Usually ships in 2-4 days

0

30

Echo 39311-54330

LEVER, BRAKE
(Superseded to C334000190)

$12.99

$

In Stock, only 1 left!

0

31

Echo 39311-54340

TIE, CABLE
(Superseded to C334000200)

$7.49

$

Usually ships in 2-4 days

0

32

Echo 12492-30110

TIE, CABLE - 3X11.8
(Superseded to V629000010)

$1.49

$

Usually ships in 2-4 days

0

33

Echo 17520-15400

SPRING
(Superseded to V452000860)

$5.49

$

Usually ships in 2-4 days

0

34

Echo 39311-54350

PLATE
(Superseded to C347000010)

$5.49

$

Usually ships in 2-4 days

0

35

Echo 39311-54361

BRAKE LEVER KIT
(Superseded to 39311-54364)

Note: Includes ITEMS 35-36

$31.99

$

In Stock, only 1 left!

0

36

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$1.49

$

In Stock, Qty 15

0

37

Echo 39311-54380

BOLT
(Superseded to 39311-54381)

$1.99

$

In Stock, only 2 left!

0

38

Echo 1750012300

SPRING, BRAKE
(Superseded to V450001160)

$5.49

$

In Stock, only 1 left!

0

39

Echo 39311-54130

COVER, BRAKE
(Superseded to C345000581)

$7.49

$

Usually ships in 2-4 days

0

40

Echo 11060-04141

SCREW - 4X14
(Superseded to V202000520)

$1.99

$

Usually ships in 2-4 days

0

41

Echo 22169-54670

WASHER
(Superseded to V303000320)

$1.49

$

In Stock, only 4 left!

0

42

Echo 15401-10119

COLLAR
(Superseded to V356000540)

$10.99

$

Usually ships in 2-4 days

0

43

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, only 4 left!

0

44

Echo 22197-55110

GEAR ASSY
(Superseded to P021023110)

$30.99

$

In Stock, only 3 left!

0

45

Echo 22197-55200

AUTO-OILER ASSY
(Superseded to 22197-55201)

$75.99

$

In Stock, Qty 5

0

46

Echo 22182-55311

PIPE - OIL
(Superseded to V470001510)

$7.99

$

Usually ships in 2-4 days

0

47

Echo 22182-55330

FILTER, OIL
(Superseded to C209000070)

$8.49

$

Usually ships in 2-4 days

0

48

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$1.49

$

In Stock, Qty 20+

0

49

Echo 22169-55430

FILTER, OIL
(Superseded to C211000010)

$1.99

$

Usually ships in 2-4 days

0

50

Echo 39311-55231

COVER, PUMP
(Superseded to C236000060)

$3.99

$

Usually ships in 2-4 days

0

51

Echo 11060-04141

SCREW - 4X14
(Superseded to V202000520)

$1.99

$

Usually ships in 2-4 days

0

52

Echo 69025-91332

LABEL - MODEL 446s
(Superseded to X504004170)

$3.49

$

Usually ships in 2-4 days

0

53

Echo 19422-00045

LABEL - CAUTION

$

$

Not available
