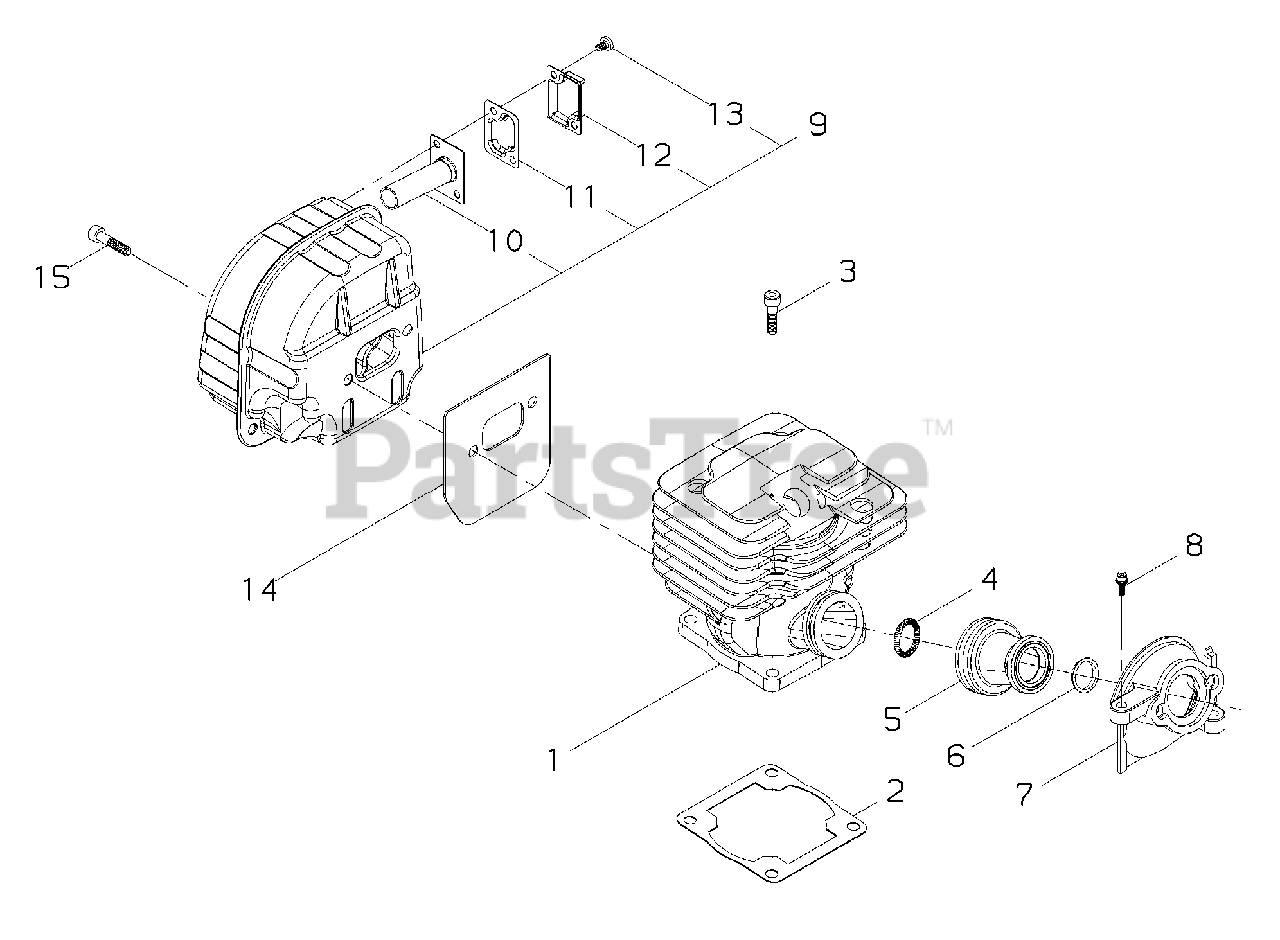

446 s - Shindaiwa Chainsaw (EPA Version) Cylinder, Muffler Parts Diagram

Chainsaw (EPA Version)

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 39311-12110

CYLINDER
(Superseded to A130001621)

$148.99

$

Usually ships in 2-4 days

0

2

Echo 39311-12120

GASKET, CYLINDER
(Superseded to V100000540)

$2.49

$

In Stock, only 3 left!

0

3

Echo 01020-05180

BOLT M5×18
(Superseded to 90010505018)

$1.49

$

Usually ships in 2-4 days

0

4

Echo 22160-12160

SPRING
(Superseded to 22182-12160)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 39311-12210

BELLOWS, INTAKE
(Superseded to A202000150)

$14.99

$

Usually ships in 2-4 days

0

6

Echo 22156-14140

COLLAR 16
(Superseded to V359000200)

$2.99

$

Usually ships in 2-4 days

0

7

Echo 39311-12220

ADAPTOR, INTAKE
(Superseded to A200000852)

$7.99

$

Usually ships in 2-4 days

0

8

Echo 11060-04163

BOLT M4×16
(Superseded to V202000200)

$1.99

$

In Stock, Qty 12

0

9

Echo 69028-15311

MUFFLER ASSY
(Superseded to A030000520)

Note: Includes ITEMS 9-13

$60.99

$

Usually ships in 2-4 days

0

10

Echo 22197-15130

PIPE, EXHAUST
(Superseded to A313001530)

$18.99

$

Usually ships in 2-4 days

0

11

Echo 72311-15190

SCREEN, SPARK ARRESTER
(Superseded to A310000300)

$3.49

$

In Stock, only 2 left!

0

12

Echo 69028-15320

COVER, SPARK ARRESTER
(Superseded to A313001560)

$5.99

$

Usually ships in 2-4 days

0

13

Echo 11203-04060

SCREW M4×6
(Superseded to 9157804006)

$1.49

$

In Stock, only 1 left!

0

14

Echo 39311-15210

HEAT SHIELD, EXHAUST
(Superseded to V104001580)

$4.99

$

Usually ships in 2-4 days

0

15

Echo 01020-05180

BOLT M5×18
(Superseded to 90010505018)

$1.49

$

Usually ships in 2-4 days

0
