44611 - Gravely 40" Deck Drive for Commercial 2-Wheel Tractor MOWER DRIVE Parts Diagram

40" Deck Drive for Commercial 2-Wheel Tractor

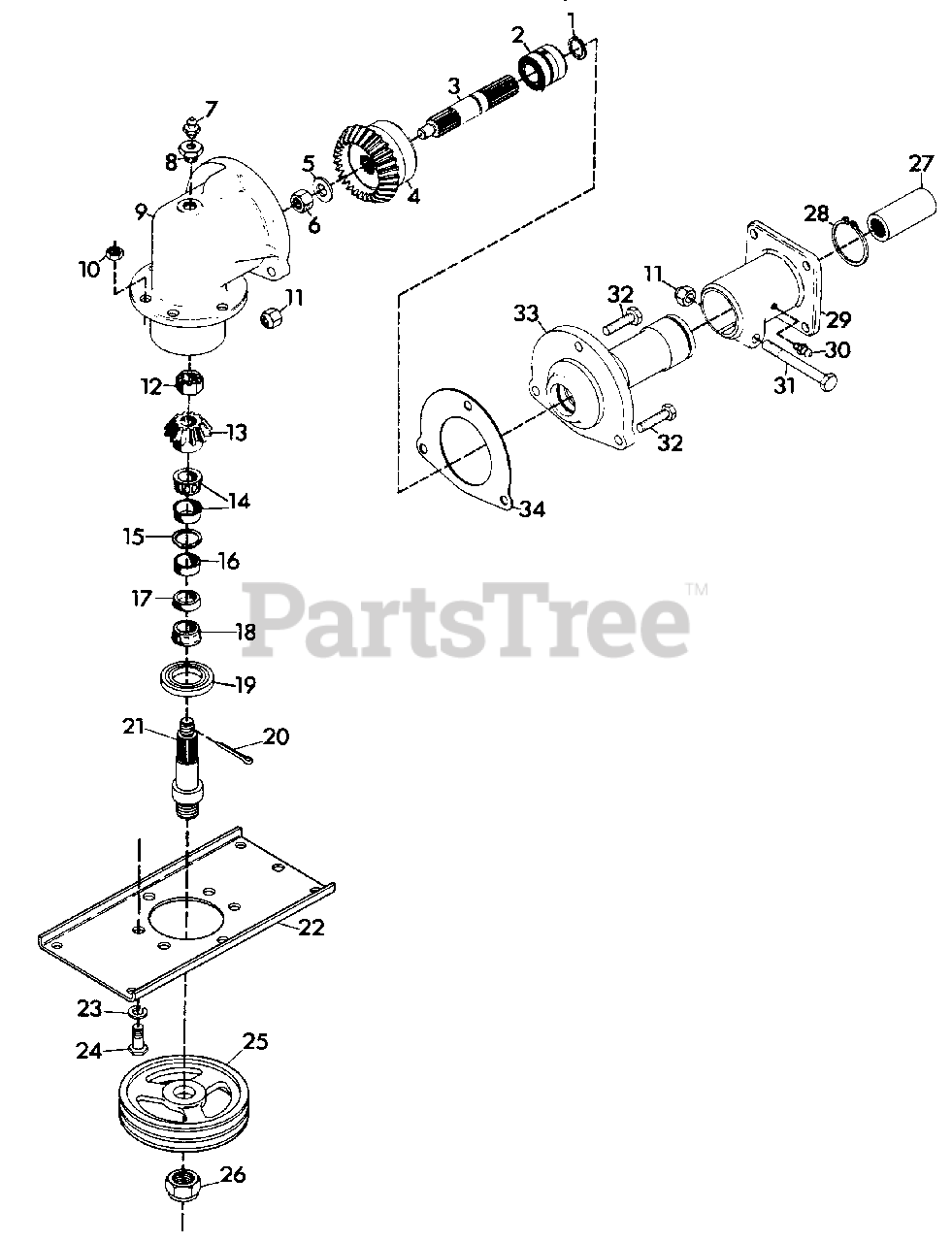

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 022242

RING, RETAINING .937 SHAFT
(Superseded to 05714100)

$

$

Not available

2

Gravely 014640

ASSEMBLY, BEARING 1.000X1.980X1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

3

Gravely 032117

SHAFT, DRIVE
(Superseded to 08534800)

$

$

Not available

4

Gravely 022518

GEAR, BEVEL
(Superseded to 08659700)

$385.99

$

Usually ships in 4-12 days

0

5

Gravely 033845

WASHER, FLAT .687X1.312X.122
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 013412

NUT, LOCK 5/8-18
(Superseded to 06530300)

$3.99

$

In Stock, Qty 11

0

7

Gravely 271434

FITTING, LUBE 1/8 NPT
(Superseded to 07012500)

$3.99

$

In Stock, only 4 left!

0

8

Gravely 144044

BUSHING, 1/2 REDUCING PIPE
(Superseded to 07012200)

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 044618

HOUSING, GEAR
(Superseded to 08558000)

$

$

Not available

10

Gravely 120238

NUT, JAM 1/2-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 15

0

11

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 125267

NUT, SLOTTED 5/8-18
(Superseded to 06523900)

$3.49

$

In Stock, only 1 left!

0

13

Gravely 022519

PINION, BEVEL
(Superseded to 08659800)

$253.99

$

Usually ships in 4-12 days

0

14

Gravely 038199

ASSEMBLY, BEARING CUP AND CONE
(Superseded to 21245800)

$25.99

$

In Stock, Qty 14

0

15

Gravely 022497

RING, RETAINING 2.000 BORE
(Superseded to 05714200)

$2.99

$

In Stock, Qty 7

0

16

Gravely 044617

SPACER
(Superseded to 08538300)

$

$

Not available

17

Gravely 022524

CUP, BEARING
(Superseded to 05414600)

$18.99

$

Usually ships in 4-12 days

0

18

Gravely 022523

CONE, BEARING
(Superseded to 05414700)

$39.99

$

Usually ships in 4-12 days

0

19

Gravely 013171

SEAL, OIL(DUAL LIP)
(Superseded to 05622200)

Note: (DUAL LIP)

$14.99

$

Usually ships in 4-12 days

0

20

Gravely 119120

PIN, COTTER .094X1.25
(Superseded to 06713400)

$0.99

$

Usually ships in 4-12 days

0

21

Gravely 044610

SHAFT, ROTOR
(Superseded to 08557800)

$

$

Not available

22

Gravely 011367

PLATE, MOUNTING
(Superseded to 08584800)

$22.99

$

Usually ships in 4-12 days

0

23

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

24

Gravely 009229

BOLT, HEX SPECIAL
(Superseded to 07013200)

$

$

Not available

25

Gravely 011364

SHEAVE, 1/2X6 DOUBLE GROOVE
(Superseded to 08584500)

$284.99

$

Usually ships in 4-12 days

0

26

Gravely 011365

NUT, SPECIAL 1-14
(Superseded to 07016300)

$

$

Not available

27

Gravely 032118

COUPLING
(Superseded to 08534900)

$129.99

$

Usually ships in 4-12 days

0

28

Gravely 032120

RING, RETAINING EXTERNAL 2.25 SHAFT
(Superseded to 05714800)

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 032114

CASTING, SWIVEL
(Superseded to 08534500)

$

$

Not available

30

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

31

Gravely 180191

BOLT, HEX 1/2-13X3.25
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

32

Gravely 180179

BOLT, HEX 1/2-13X1.75
(Superseded to 05901939)

$3.99

$

In Stock, Qty 7

0

33

Gravely 032115

HOUSING, SHAFT
(Superseded to 08534600)

$

$

Not available

34

Gravely 032862

SHIM, .005
(Superseded to 08508100)

$21.99

$

Usually ships in 4-12 days

0
