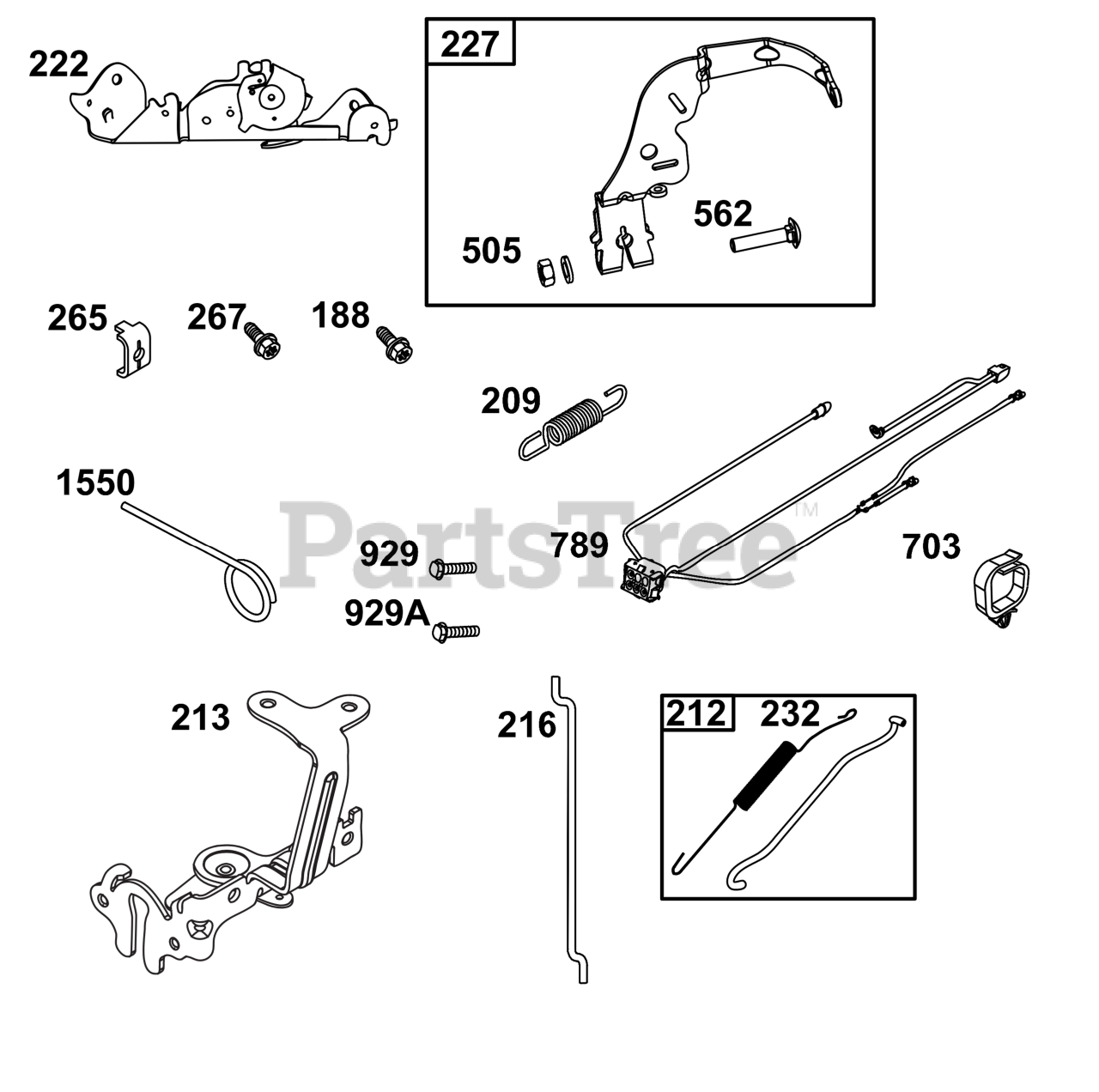

44C877-0001-B1 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 691003

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, only 2 left!

0

212

Briggs & Stratton 597429

LINK, Throttle

$8.49

$

In Stock, only 2 left!

0

213

Briggs & Stratton 799153

BRACKET, Choke Control

$57.99

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 796229

LINK, Choke

$9.99

$

In Stock, only 2 left!

0

222

Briggs & Stratton 592555

BRACKET, Control

$45.99

$

In Stock, only 1 left!

0

227

Briggs & Stratton 798856

LEVER, Governor Control

$25.99

$

In Stock, only 3 left!

0

232

Briggs & Stratton 597550

SPRING, Governor Link

$10.99

$

In Stock, only 2 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 10

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 1 left!

0

278

Briggs & Stratton 845498

WASHER

$

$

Not available

505

Briggs & Stratton 691029

NUT

Note: (Governor Control Lever)

$5.99

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 594915

KIT, Governor/Idle Spring

$23.99

$

In Stock, only 2 left!

0

562

Briggs & Stratton 690311

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 593826

CLIP, Wire

$5.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 591393

HARNESS, Wiring

$50.99

$

In Stock, Qty 5

0

929

Briggs & Stratton 695239

SCREW

Note: (Choke Control Bracket)

$3.99

$

In Stock, only 2 left!

0

929A

Briggs & Stratton 794904

SCREW

Note: (Choke Control Bracket)

$3.99

$

In Stock, only 2 left!

0

1012

Briggs & Stratton 284913

RETAINER, Link

$

$

Currently unavailable

1550

Briggs & Stratton 595801

PIN, Speed Setting

$5.99

$

Usually ships in 2-12 days

0
