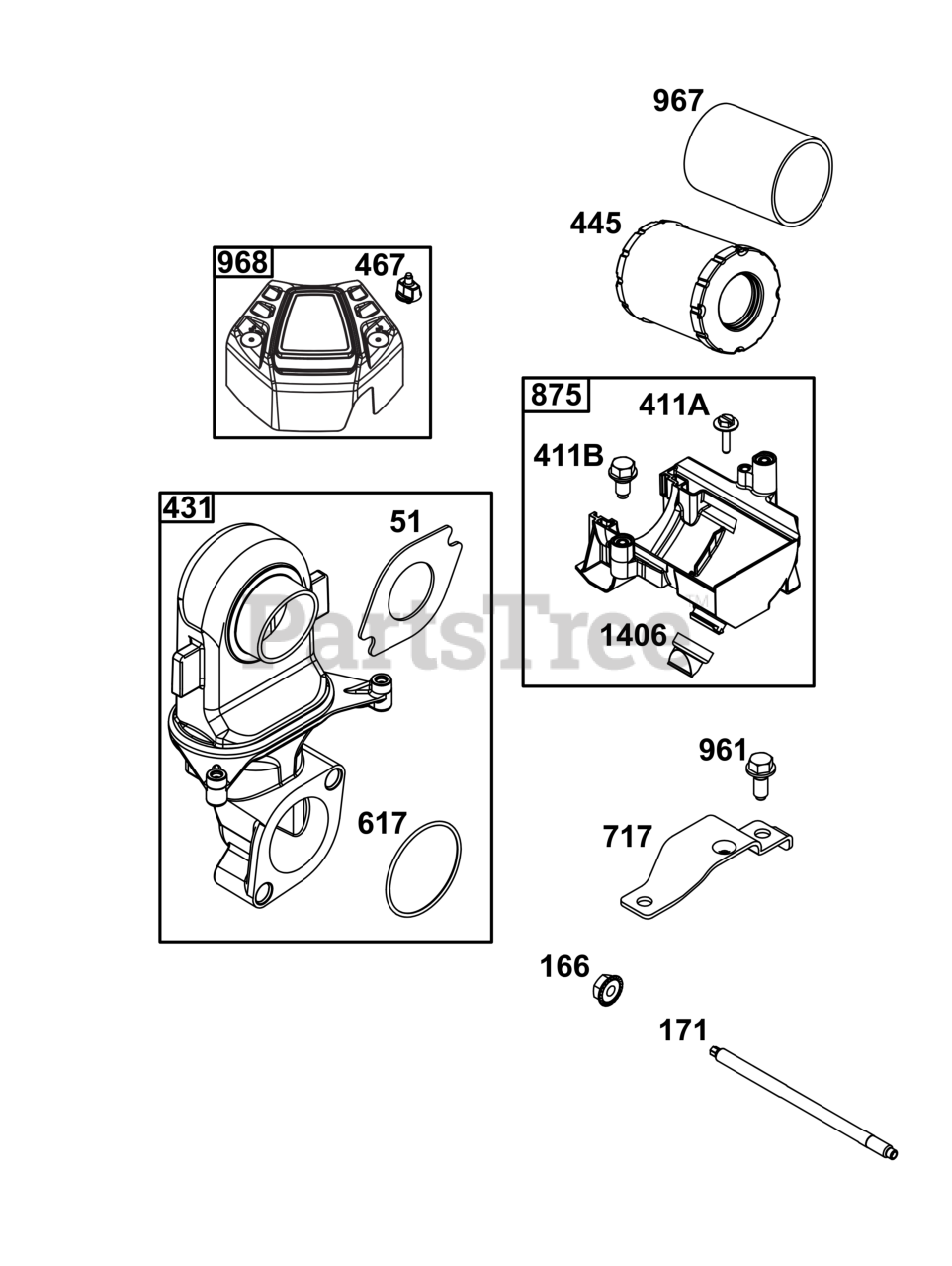

44X977-0012-G1 - Briggs & Stratton Vertical Engine Air Cleaner Group Parts Diagram

Vertical Engine

Air Cleaner Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

166

Briggs & Stratton 84004545

STUD

Note: (Air Cleaner)

$5.99

$

Usually ships in 2-12 days

0

171

Briggs & Stratton 690958

NUT

Note: (Air Cleaner)

$3.49

$

In Stock, only 2 left!

0

411A

Briggs & Stratton 790690

SCREW

Note: (Air Cleaner Base To Air Cleaner Bracket)

$3.99

$

In Stock, Qty 16

0

411B

Briggs & Stratton 84004737

SCREW

Note: (Air Cleaner Base To Air Cleaner Bracket)

$3.49

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 84003939

ELBOW, INTAKE

$55.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 594201

FILTER, A/C Cartridge

$15.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 84001914

KNOB, Air Cleaner Cover

$10.99

$

Usually ships in 2-12 days

0

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

717

Briggs & Stratton 84004548

BRACKET, AIR CLEANER

$49.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 84004736

BASE, Air Cleaner

$63.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 691108

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, Qty 20+

0

967

Briggs & Stratton 797704

FILTER, Pre Cleaner

$4.99

$

In Stock, Qty 20+

0

968

Briggs & Stratton 84001912

COVER, Air Cleaner

$37.99

$

Usually ships in 2-12 days

0

1406

Briggs & Stratton 799096

VALVE, Debris

$17.99

$

Usually ships in 2-12 days

0
