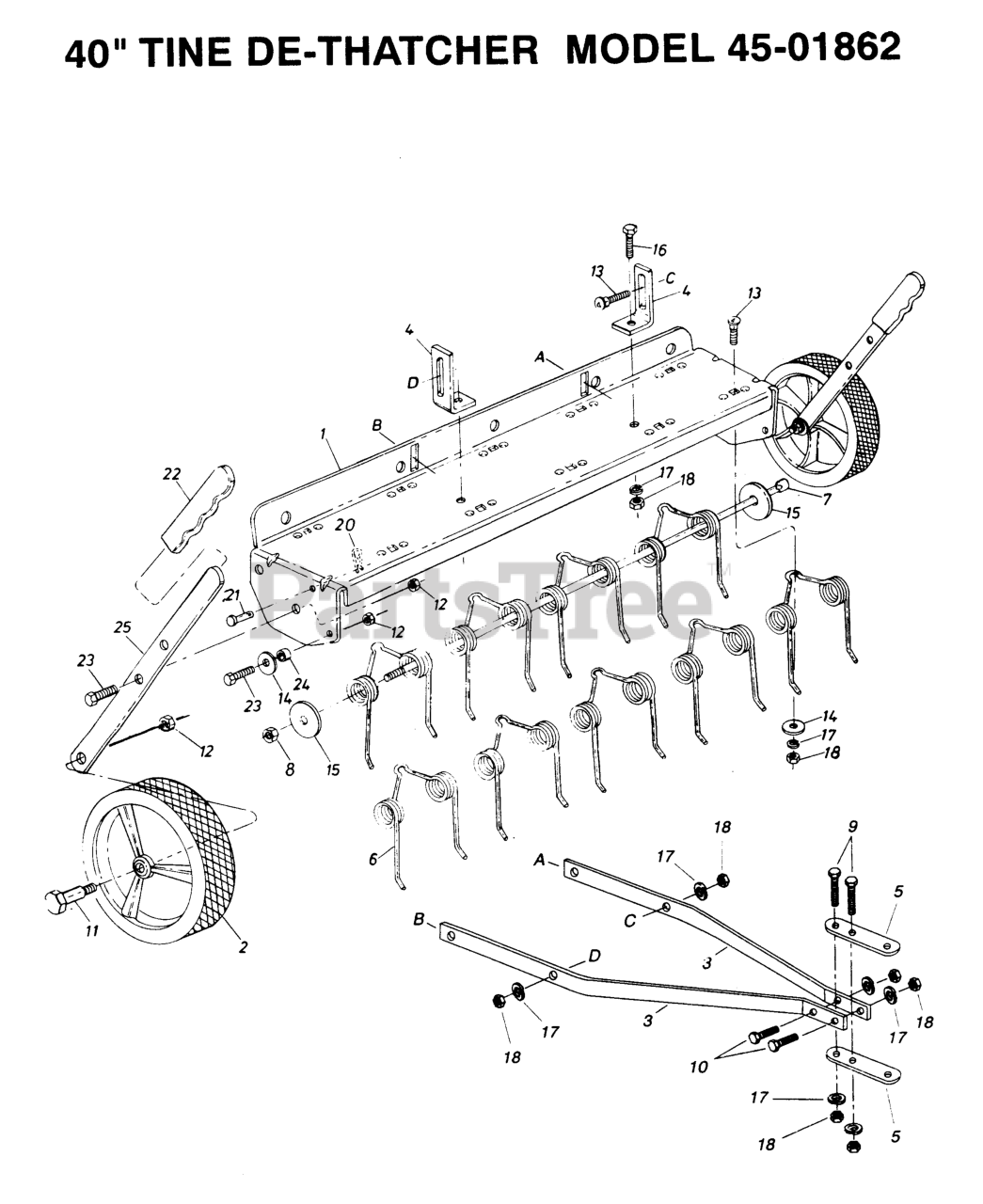

45-01862 - Husqvarna 40" Tow-Behind Dethatcher (1998-09) PRODUCT COMPLETE Parts Diagram

40" Tow-Behind Dethatcher

PRODUCT COMPLETE Parts Diagram

  • Title

11

Husqvarna 531004627

BOLT

$

$

Not available

5

Husqvarna 531004642

BRACKET THATCHER

$22.99

$

Usually ships in 3-10 days

0

25

Husqvarna 531004641

LEVER

$

$

Not available

17

Husqvarna 735116405

WASHER

$

$

Not available

21

Husqvarna 531004638

PIN

$

$

Not available

9

Husqvarna 874760532

Bolt Fin Hex 5/16 - 18 Unc x 2 Gr. 2

$

$

Not available

7

Husqvarna 531004633

ROD

$

$

Not available

16

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 531004630

ARM

$

$

Not available

15

Husqvarna 531004636

WASHER

$

$

Not available

6

Husqvarna 531004626

SPRING TINE

$

$

Not available

2

Husqvarna 531004628

WHEEL

$

$

Not available

8

Husqvarna 531007629

NUT

$

$

Not available

12

Husqvarna 873680600

LOCKNUT

$

$

Not available

14

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 872110508

BOLT CRT
(Superseded to 596435701)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 506626401

Rubber Grip

$

$

Not available

4

Husqvarna 531004631

BRACKET

$

$

Not available

10

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

$4.99

$

In Stock, Qty 14

0

1

Husqvarna 531004629

CHASSIS

$

$

Not available

23

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

20

Husqvarna 531004637

PIN

$

$

Not available

18

Husqvarna 873220500

NUT
(Superseded to 596436301)

$3.49

$

In Stock, only 3 left!

0

24

Husqvarna 531004640

BUSHING

$

$

Not available
