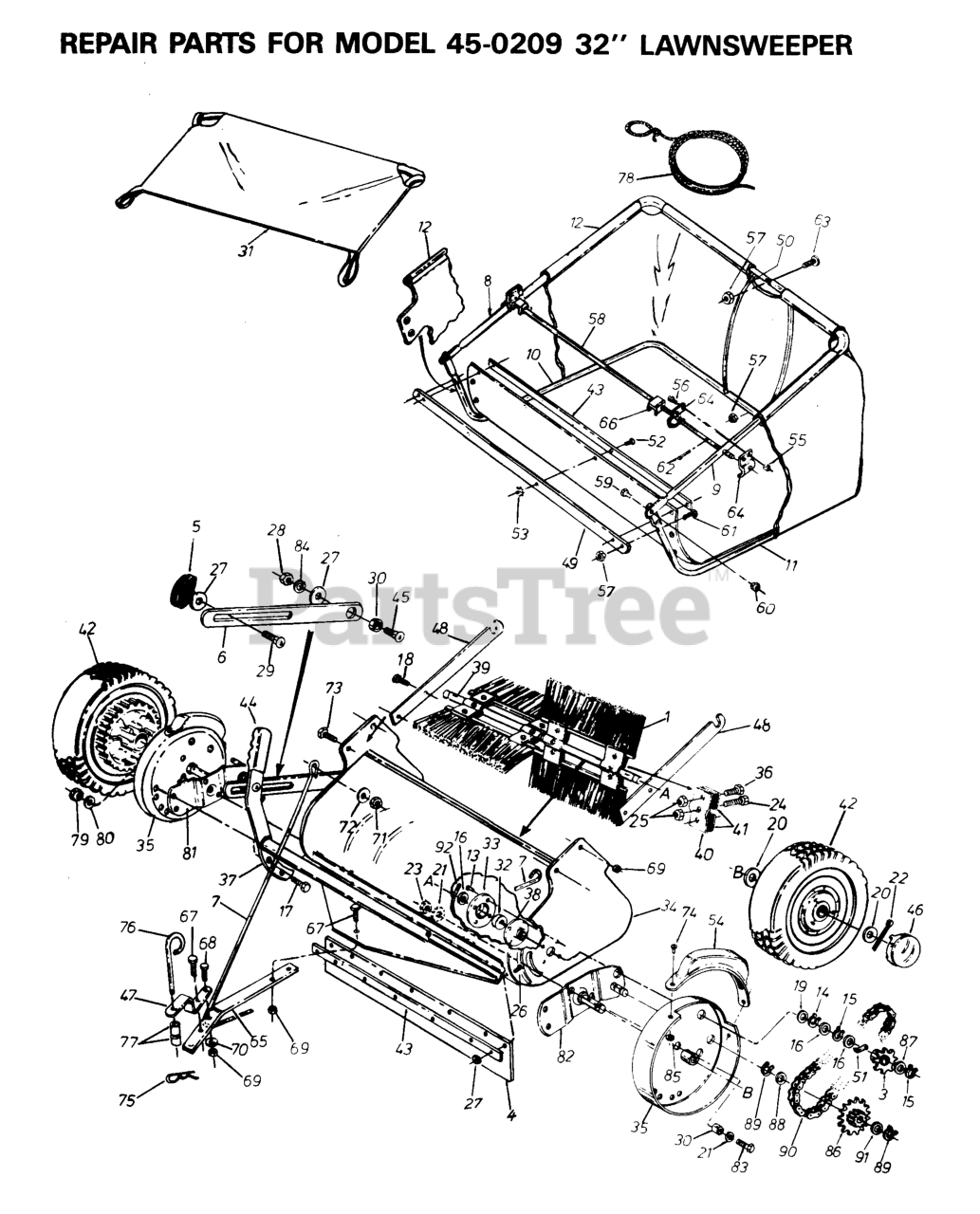

45-0209 - Husqvarna 32" Tow-Behind Sweeper (1998-11) CHASSIS & ENCLOSURES Parts Diagram

32" Tow-Behind Sweeper

CHASSIS & ENCLOSURES Parts Diagram

  • Title

56

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 531002857

HOUSING

$

$

Not available

50

Husqvarna 506624401

HOPPER SUPPORT ROD

$13.99

$

Usually ships in 3-10 days

0

44

Husqvarna 506626401

Rubber Grip

$

$

Not available

52

Husqvarna 725232951

Slotted Truss Head Screw #10-32 x 5/8"

$

$

Not available

17

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 531007629

NUT

$

$

Not available

42

Husqvarna 531002859

WHEEL

$

$

Not available

71

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

54

Husqvarna 531007624

SHIELD

$

$

Not available

46

Husqvarna 506623001

HUB CAP

$

$

Not available

88

Husqvarna 506623601

Washer, 1/2" x 1" x .02"

$

$

Not available

18

Husqvarna 506625301

HEX BOLT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

75

Husqvarna 721680251

R-CLIP

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 506620401

BEARING RETAINER

$

$

Not available

41

Husqvarna 506620701

BRUSH RETAINER SINGLE

$

$

Not available

21

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 531002799

GEAR

$

$

Not available

69

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

80

Husqvarna 734115201

WASHER - M6

$4.99

$

In Stock, Qty 13

0

70

Husqvarna 734117341

Washer, Flat 1-1/2" x .375" x .062"

$

$

Not available

16

Husqvarna 506622501

SHIM WASHER

$

$

Not available

12

Husqvarna 531007606

REPL BY 531 00 28-55
(Superseded to 531002855)

$

$

Not available

86

Husqvarna 531007613

GEAR

$

$

Not available

30

Husqvarna 506626601

Spacer 13/32" x 5/8" x 3/16"

$

$

Not available

74

Husqvarna 531007622

RIVET

$

$

Not available

4

Husqvarna 531007617

LIST

$

$

Not available

78

Husqvarna 531002734

ROPE

$

$

Not available

15

Husqvarna 506622401

Retaining Ring .594" I.D.

$

$

Not available

64

Husqvarna 506626701

HOPPER MOUNTING CLAMPS

$

$

Not available

89

Husqvarna 506623101

RETAINING RING 1/2Ä

$

$

Not available

60

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

83

Husqvarna 531007625

BOLT

$

$

Not available

8

Husqvarna 531007602

PIPE

$

$

Not available

90

Husqvarna 531007610

CHAIN

$

$

Not available

53

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 8

0

35

Husqvarna 531007608

DUST PROTECTION

$

$

Not available

81

Husqvarna 531007611

BRACKET

$

$

Not available

26

Husqvarna 723232731

SCREW

$9.99

$

Usually ships in 3-10 days

0

92

Husqvarna 531007618

SPRING

$

$

Not available

7

Husqvarna 531007621

ROD

$

$

Not available

63

Husqvarna 725237251

Curved Head Bolt 1/4-20 x 1"

$

$

Not available

5

Husqvarna 506626001

Knob, Wing 5/16-18 Thread

$

$

Not available

39

Husqvarna 531007615

SHAFT

$

$

Not available

32

Husqvarna 506620301

BALLBEARING 5916 1.D
(Superseded to 601002178)

$

$

Not available

28

Husqvarna 531007616

NUT

$

$

Not available

49

Husqvarna 531007614

STRAP

$

$

Not available

14

Husqvarna 506622301

Ring, Retaining 3/4"

$

$

Not available

38

Husqvarna 506620201

BRUSH BUSHING ASSY

$

$

Not available

61

Husqvarna 725237471

SCREW M6S 6X30

$5.99

$

In Stock, Qty 20+

0

48

Husqvarna 506621301

HOPPER MOUNT ARM

$

$

Not available

43

Husqvarna 531007609

HOLDER

$

$

Not available

40

Husqvarna 506620601

BRUSHRETAINER DOUBLE

$10.99

$

Usually ships in 3-10 days

0

47

Husqvarna 506621201

HITCH BRACKET

$

$

Not available

57

Husqvarna 531007629

NUT

$

$

Not available

82

Husqvarna 531007612

BRACKET

$

$

Not available

10

Husqvarna 531007604

PIPE

$

$

Not available

51

Husqvarna 506621901

PAWL

$

$

Not available

62

Husqvarna 721618301

Split Pin

$

$

Not available

84

Husqvarna 735116405

WASHER

$

$

Not available

11

Husqvarna 531007605

PIPE

$

$

Not available

77

Husqvarna 506626501

Hitch Adjustment Tube

$

$

Not available

72

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

76

Husqvarna 506625601

Pin, Hitch

$

$

Not available

22

Husqvarna 721618301

Split Pin

$

$

Not available

66

Husqvarna 506626801

BAG RETAINER CLEVIS

$

$

Not available

3

Husqvarna 506623501

RATCHET SPROCKET

$

$

Not available

87

Husqvarna 531007628

WASHER

$

$

Not available

68

Husqvarna 874780624

BOLT
(Superseded to 874930624)

$

$

Not available

67

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

79

Husqvarna 531007616

NUT

$

$

Not available

9

Husqvarna 531007603

PIPE

$

$

Not available

31

Husqvarna 531007607

REPL BY 531 00 28-56
(Superseded to 531002856)

$

$

Not available

20

Husqvarna 506623601

Washer, 1/2" x 1" x .02"

$

$

Not available

37

Husqvarna 531007627

CONTROL

$

$

Not available

23

Husqvarna 506622901

HEX LOCK NUT 3/8-24THD
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 531007616

NUT

$

$

Not available

59

Husqvarna 506625301

HEX BOLT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

65

Husqvarna 506621101

HITCH BAR

$

$

Not available

19

Husqvarna 531002741

Washer, Flat 1-1/8" x .78" x .025"

$

$

Not available

1

Husqvarna 531002850

BRUSH

$

$

Not available

24

Husqvarna 531007626

BOLT

$

$

Not available

13

Husqvarna 722787002

RIVET

$

$

Not available

73

Husqvarna 506626101

HEX BOLT
(Superseded to 874780620)

$7.49

$

In Stock, only 3 left!

0

6

Husqvarna 506621001

HEIGHT ADJUSTMENT STRAP

$

$

Not available

36

Husqvarna 729237051

REPL BY 725 23 74-71
(Superseded to 725237471)

$5.99

$

In Stock, Qty 20+

0

91

Husqvarna 531007623

WASHER

$

$

Not available

85

Husqvarna 531007619

WASHER

$

$

Not available

58

Husqvarna 531007638

ROD

$

$

Not available
