45-03731 - Husqvarna DSS Deluxe Sun Shade (2006-03) Sun Shade Parts Diagram

DSS Deluxe Sun Shade

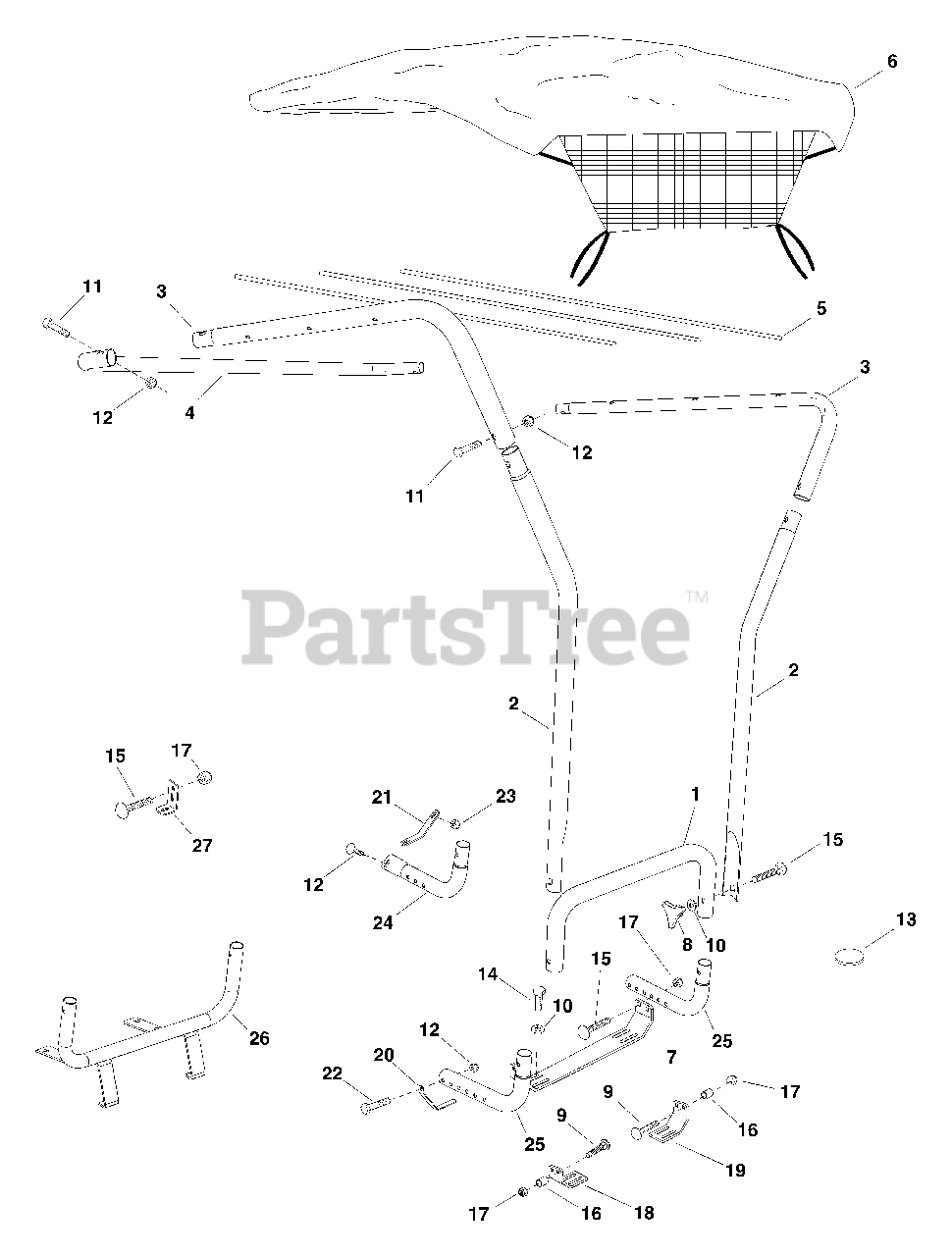

Sun Shade Parts Diagram

  • Title

1

Husqvarna 49242

Base Top Tube

$

$

Currently unavailable

2

Husqvarna 25014

Upright Tube

$

$

Currently unavailable

3

Husqvarna 25013

Top Tube

$

$

Currently unavailable

4

Husqvarna 25012

U-Tube

$

$

Currently unavailable

5

Husqvarna 25015

Support Rod

$

$

Currently unavailable

6

Husqvarna 48660

Vinyl Canopy

$

$

Currently unavailable

7

Husqvarna 25793

Base Bracket

$

$

Currently unavailable

8

Husqvarna 43720

Plastic Knob

$

$

Currently unavailable

9

Husqvarna 46594

Carriage Bolt, 5/16-18 x 2-3/4"

$

$

Currently unavailable

10

Husqvarna 43081

Flat Washer, 5/16"

$

$

Not available

11

Husqvarna 43648

Hex Bolt, 1/4-20 x 1-1/2"

$

$

Currently unavailable

12

Husqvarna 47189

Nylock Nut, 1/4-20

$

$

Currently unavailable

13

Husqvarna 48661

Adhesive Pad

$

$

Currently unavailable

14

Husqvarna 43063

Hex Bolt, 5/16-18 x 1"

$

$

Not available

15

Husqvarna 44977

Carriage Bolt, 5/16-18 x 2"

$

$

Currently unavailable

16

Husqvarna 23658

Spacer

$

$

Currently unavailable

17

Husqvarna 47810

Nylock Nut, 5/16-18

$

$

Currently unavailable

18

Husqvarna 25303

Left Base Bracket

$

$

Not available

19

Husqvarna 25302

Right Base Bracket

$

$

Currently unavailable

20

Husqvarna 25794

Left Support Bracket

$

$

Currently unavailable

21

Husqvarna 25835

Right Support Bracket

$

$

Currently unavailable

22

Husqvarna 44180

Hex Bolt, 5/16-18 x 2"

$

$

Currently unavailable

23

Husqvarna 43176

Carriage Bolt, 1/4-20 x 1"

$

$

Currently unavailable

24

Husqvarna 40003

Base Leg Tube, (w/flat)

$

$

Currently unavailable

25

Husqvarna 49325

Base Leg Tube

$

$

Currently unavailable

26

Husqvarna 65535

Base Bracket Ass'y

$

$

Currently unavailable

27

Husqvarna 25304

Rear Support Bracket

$

$

Currently unavailable

Husqvarna 40024

Owner's Manual

$

$

Currently unavailable
