45-0416 - Husqvarna Sleeve Hitch 22" Tire (2008-01) Sleeve Hitch Parts Diagram

Sleeve Hitch 22" Tire

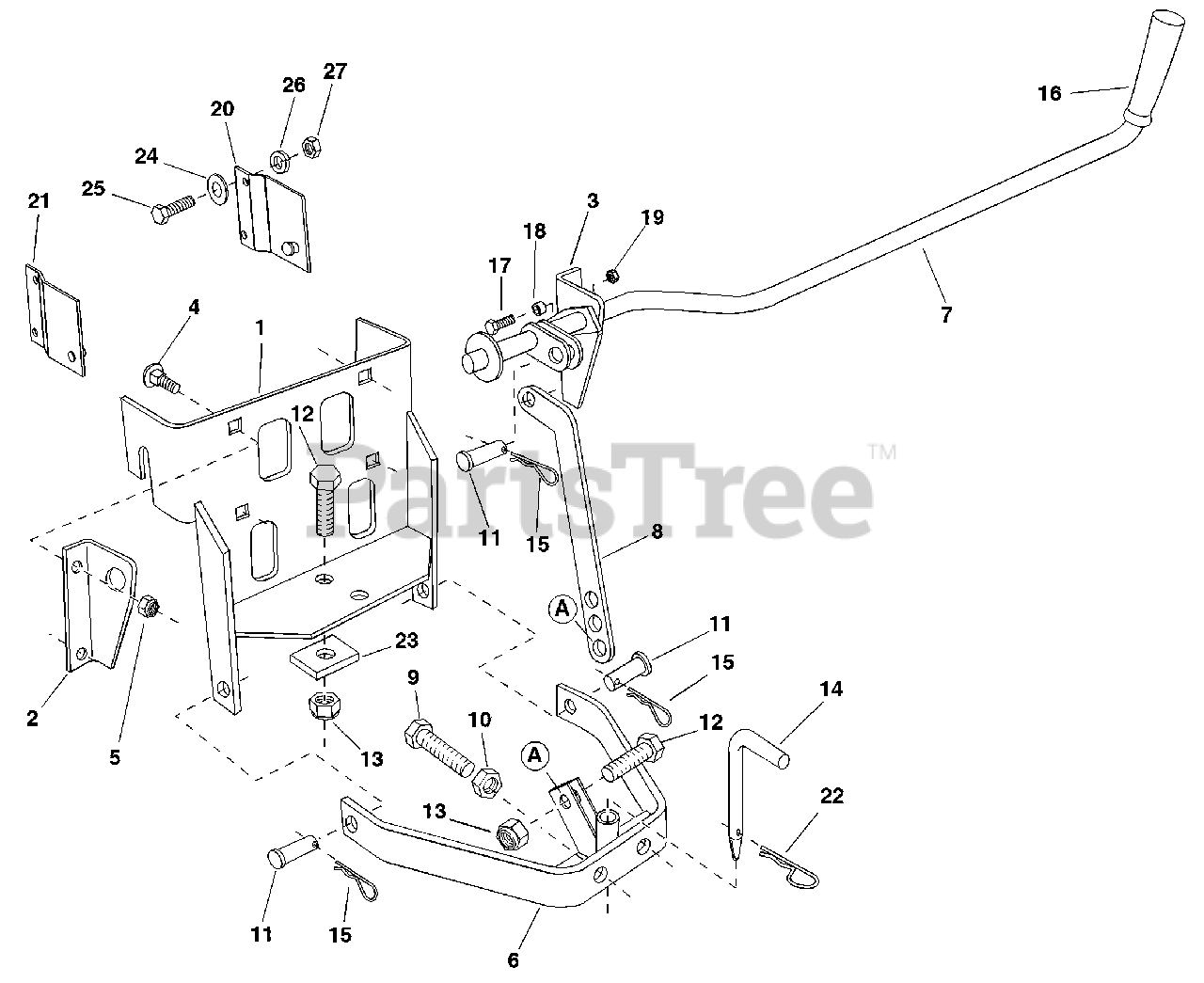

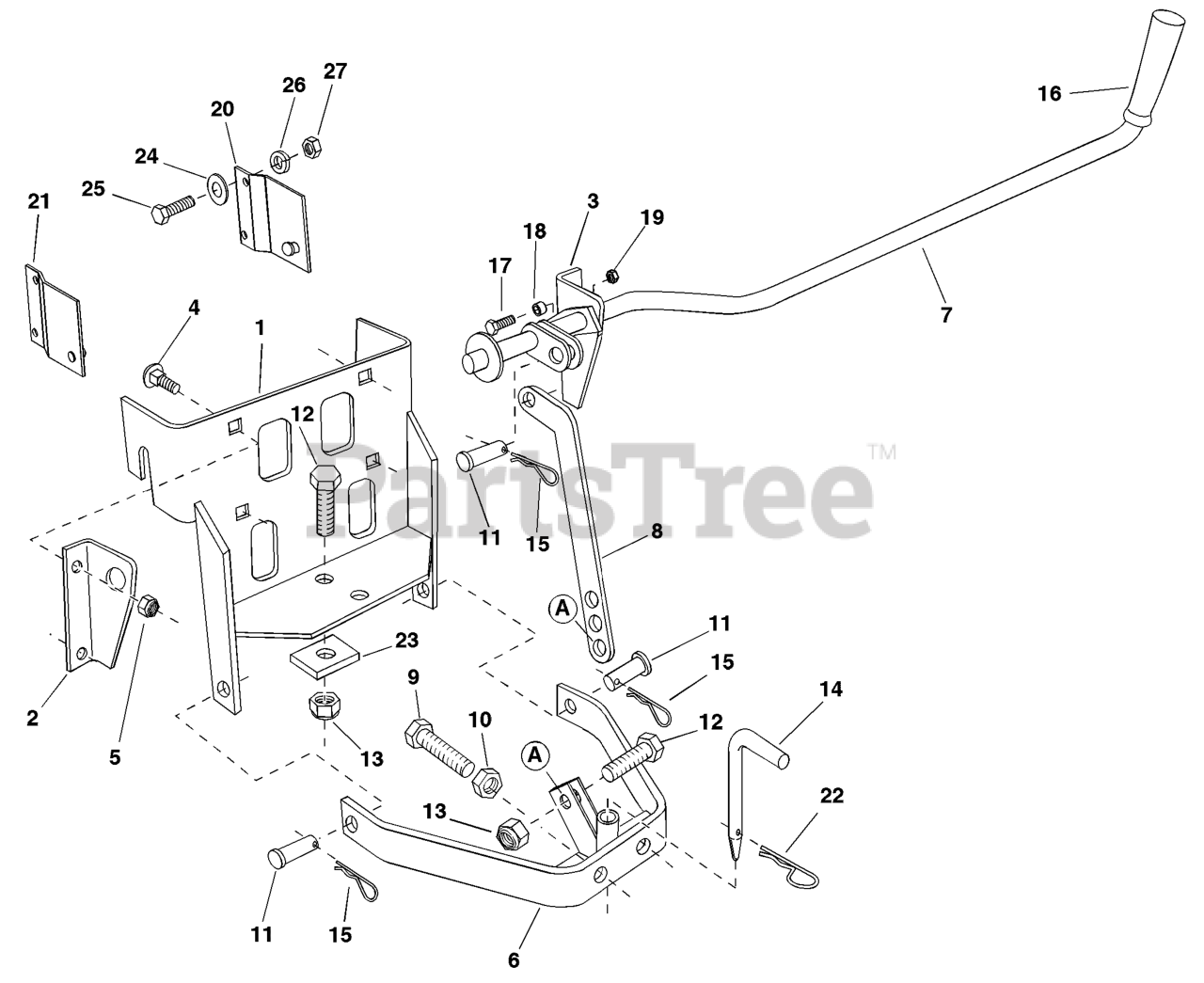

Sleeve Hitch Parts Diagram

  • Title

1

Husqvarna 65409

Sleeve Hitch Frame

$

$

Currently unavailable

2

Husqvarna 25715

Pivot Bracket, Left

$

$

Currently unavailable

3

Husqvarna 25714

Pivot Bracket, Right

$

$

Currently unavailable

4

Husqvarna 43350

Bolt, Carriage 3/8-16 x 1"

$

$

Not available

5

Husqvarna HA21362

Hex Lock Nut, 3/8-16

$

$

Currently unavailable

6

Husqvarna 65404

Sleeve Hitch Lift Assembly

$

$

Currently unavailable

7

Husqvarna 64625

Lift Lever Assembly

$

$

Currently unavailable

8

Husqvarna 24732

Lifting Link Plate

$

$

Currently unavailable

9

Husqvarna 47947

Bolt, Hex 5/8-11 x 2"

$

$

Currently unavailable

10

7120242

Hex Jam Nut, 5/8-11

$

$

Not available

11

Husqvarna HA3980

Clevis Pin, 5/8" x 1-3/4"

$

$

Currently unavailable

12

Husqvarna 47951

Bolt, Hex 5/8-11 x 1-3/4"

$

$

Currently unavailable

13

7120261

Nylock Nut, 5/8-11

$

$

Not available

14

Husqvarna 47950

Pin, Sleeve Hitch

$

$

Currently unavailable

15

Husqvarna 43343

Pin, Hair Cotter 3/32"

$

$

Not available

16

Husqvarna 46471

Grip, Plastic

$

$

Currently unavailable

17

Husqvarna 43063

Bolt, 5/16-18 x 1"

$

$

Not available

18

Husqvarna 23625

Spacer

$

$

Currently unavailable

19

Husqvarna 47810

Nylock Nut, 5/16"

$

$

Currently unavailable

20

Husqvarna 65810

Mounting Bracket, Right

$

$

Currently unavailable

21

Husqvarna 65811

Mounting Bracket, Left

$

$

Currently unavailable

22

7140117

Pin, Hair Cotter, 5/32"

$

$

Not available

23

Husqvarna 25685

Spacer Plate

$

$

Currently unavailable

24

Husqvarna 43070

Flat Washer

$

$

Not available

25

Husqvarna 43087

Bolt, Hex 3/8-16 x 1-1/4"

$

$

Not available

26

Husqvarna 43003

Lock Washer, 3/8"

$

$

Not available

27

Husqvarna 43015

Hex Nut, 3/8-16

$

$

Not available

Husqvarna 40352

Owner's Manual

$

$

Currently unavailable
