45-0438 (531308324) - Husqvarna 40" Front Mount Dethatcher (2008-01) 40" Front Mount Tine Dethatcher Parts Diagram

40" Front Mount Dethatcher

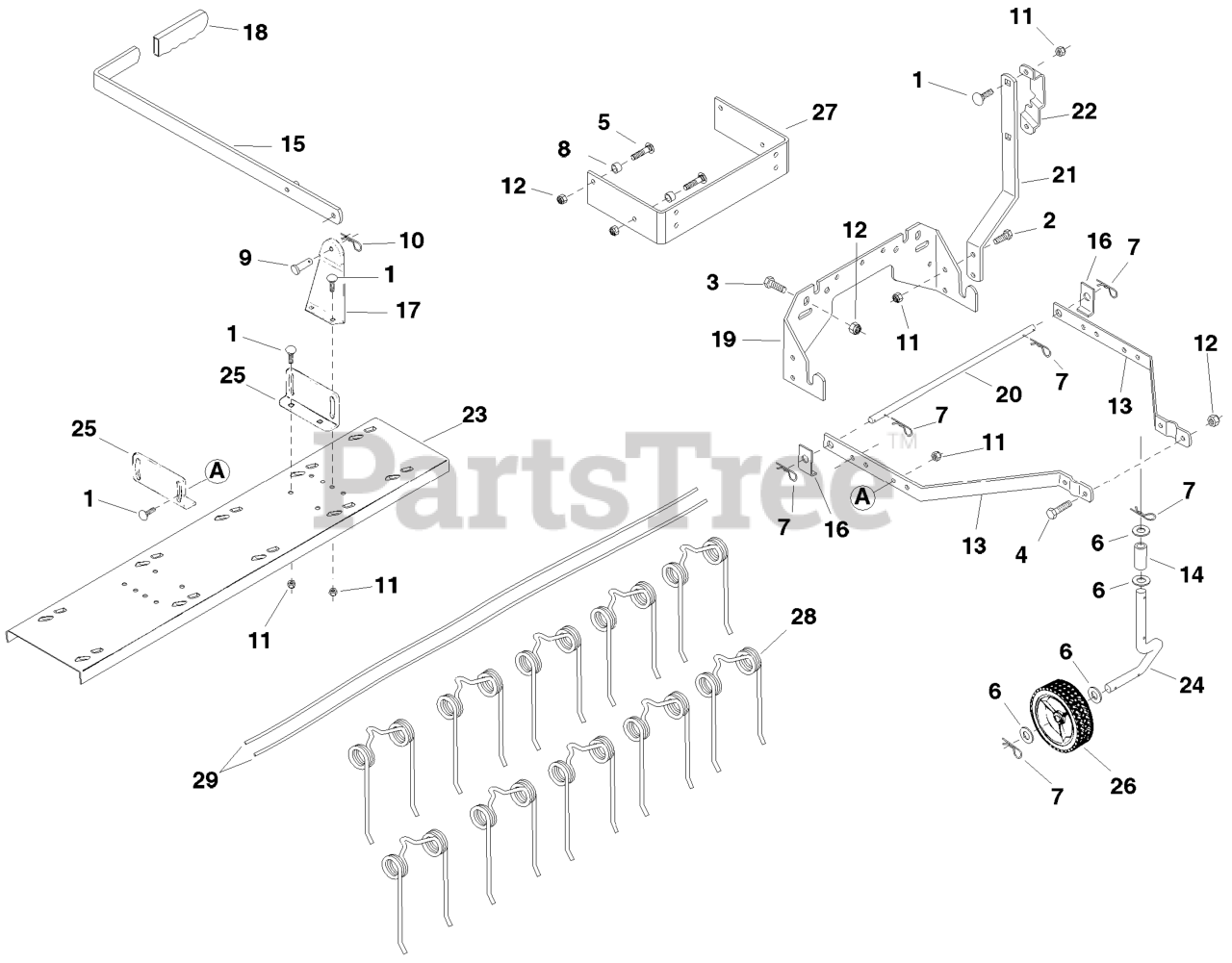

40" Front Mount Tine Dethatcher Parts Diagram

  • Title

1

Husqvarna 44326

Carriage Bolt, 5/16-18 x 1"

$

$

Currently unavailable

2

Husqvarna 43063

Hex Bolt, 5/16-18 x 1"

$

$

Not available

3

Husqvarna 43001

Hex Bolt, 3/8-16 x 1"

$

$

Not available

4

Husqvarna 43087

Hex Bolt, 3/8-16 x 1-1/4"

$

$

Not available

5

Husqvarna 43069

Carriage Bolt, 3/8-16 x 1-1/2"

$

$

Currently unavailable

6

Husqvarna R19212113

Flat Washer, 5/8"

$

$

Currently unavailable

7

Husqvarna 43343

Hairpin Cotter, 1/8"

$

$

Not available

8

Husqvarna 46838

Spacer, .8" x 1" x .5"

$

$

Currently unavailable

9

Husqvarna 44044

Clevis Pin, 3/8" x 3/4"

$

$

Currently unavailable

10

Husqvarna 43055

Hairpin Cotter, 3/32"

$

$

Currently unavailable

11

Husqvarna 47810

Nylock Nut, 5/16-18

$

$

Currently unavailable

12

Husqvarna HA21362

Nylock Nut, 3/8-16

$

$

Currently unavailable

13

Husqvarna 24876

Mounting Arm

$

$

Currently unavailable

14

Husqvarna 23668

Axle Bushing

$

$

Currently unavailable

15

Husqvarna 62600

Lift Handle

$

$

Currently unavailable

16

Husqvarna 23666

Angle Mount Bracket

$

$

Currently unavailable

17

Husqvarna 62601

Lift Handle Bracket

$

$

Currently unavailable

18

Husqvarna 43943

Plastic Grip

$

$

Currently unavailable

19

Husqvarna 26168

Hitch Plate

$

$

Currently unavailable

20

Husqvarna 26043

Mounting Shaft

$

$

Currently unavailable

21

Husqvarna 24043

Lift Handle Arm

$

$

Currently unavailable

22

Husqvarna 23673

Handle Lock Bracket

$

$

Currently unavailable

23

Husqvarna 24874

Tine Shield

$

$

Currently unavailable

24

Husqvarna 44148

Axle

$

$

Currently unavailable

25

Husqvarna 23676

Keeper Plate

$

$

Currently unavailable

26

Husqvarna 44213

Wheel

$

$

Currently unavailable

27

Husqvarna 26044

Frame Mount Bracket

$

$

Currently unavailable

28

Husqvarna 43783

Spring Tine

$

$

Currently unavailable

29

Husqvarna 47633

Wire, Spring Alignment

$

$

Currently unavailable

Husqvarna 40506

Owners Manual

$

$

Currently unavailable
