450 (990165) - Simplicity Wonderboy Rear-Engine Riding Mower FRONT AXLE AND FRONT SUPPORT-Model 450 Parts Diagram

Wonderboy Rear-Engine Riding Mower

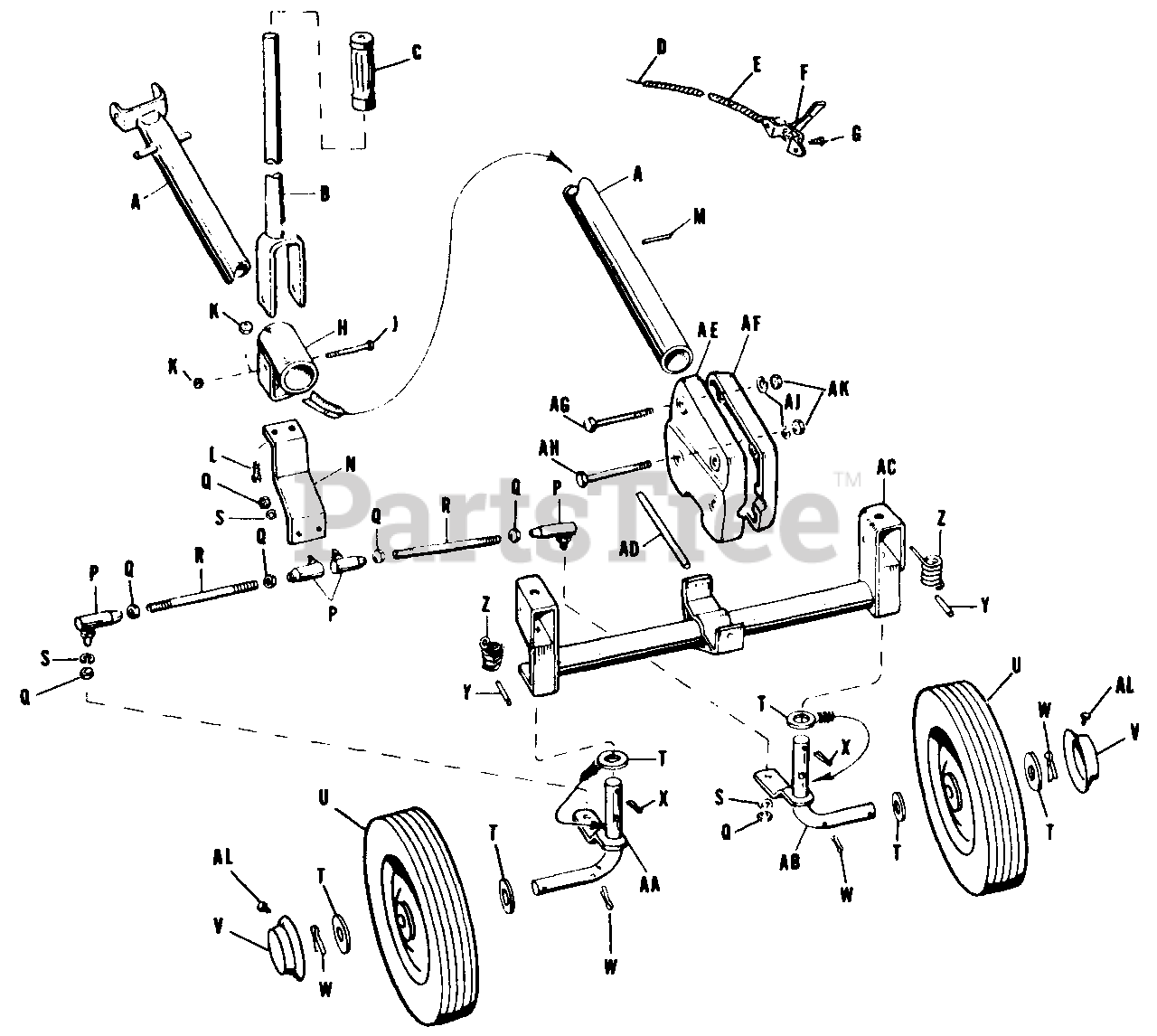

FRONT AXLE AND FRONT SUPPORT-Model 450 Parts Diagram

  • Title

A

Simplicity 121292

Frame Assembly, Front

$

$

Not available

B

Simplicity 121018

Handle Assembly

$

$

Not available

C

Simplicity 2153043

Grip, Handle

$

$

Not available

D

Simplicity 121278

Wire, Throttle

$

$

Not available

E

Simplicity 121277

Cable, Throttle

$

$

Not available

F

Simplicity 8061087

Control, Throttle Lever

$

$

Not available

G

Simplicity 714005

Screw, Rd. Hd., Self Tapping, #10-24 x 1/2

$

$

Not available

H

Simplicity 121021

Pivot Assembly, Steering

$

$

Not available

J

Simplicity 705029

Screw, Hex Hd. Cap, 3/8-16 x 3 1/4

$8.99

$

Usually ships in 2-12 days

0

K

Simplicity 2717510

Lock Nut, Hex, 3/8-16

$

$

Not available

L

Simplicity 2705031

Screw, Hex Cap, 3/8-16 x 7/8

$

$

Not available

M

Simplicity 2723002

Pin, Roll, 7/32 x 1" Long

$

$

Not available

N

Simplicity 121017

Arm, Lever

$

$

Not available

P

Simplicity 121127

Joint, Ball

$

$

Not available

Q

Simplicity 717010

Nut, Full Hex, 3/8-24

$

$

Not available

R

Simplicity 121013

Rod, Tie

$

$

Not available

S

Simplicity 2720002

Lock Washer, 3/8

$

$

Not available

T

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 11

0

U

Simplicity 121012

Wheel & Tire Assembly, Front

$

$

Not available

V

Simplicity 121136

Hub Cap, Front

$

$

Not available

W

Simplicity 2722003

Pin, Cotter, 3/16 x 1 1/4

$

$

Not available

X

Simplicity 722015

Pin, Cotter, 5/32 x 1

$

$

Not available

Y

Simplicity 2723001

Pin, Roll, 5/16 x 1 1/4

$

$

Not available

Z

Simplicity 2121011SM

Spring, Torsion

$50.99

$

Usually ships in 2-12 days

0

AA

Simplicity 121007

Spindle Assembly, R.H.

$

$

Not available

AB

Simplicity 121010

Spindle Assembly, L.H.

$

$

Not available

AC

Simplicity 121001

Axle Assembly, Front

$

$

Not available

AD

Simplicity 121016

Pin, Pivot

$

$

Not available

AE

Simplicity 121015

Support, Front, R.H.

Note: Specify Color

$

$

Not available

AF

Simplicity 121014

Support, Front, L.H.

Note: Specify Color

$

$

Not available

AG

Simplicity 705029

Screw, Hex Cap, 3/8-16 x 3 1/4

$8.99

$

Usually ships in 2-12 days

0

AH

Simplicity 705032

Screw, Hex Cap, 3/8-16 x 3 3/4

$7.49

$

In Stock, only 1 left!

0

AJ

Simplicity 2720002

Lock Washer, 3/8

$

$

Not available

AK

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

AL

Simplicity 2714003

Screw, Self Tapping #10 x 1/2 long

$

$

Not available
