450 e - Husqvarna Chainsaw CRANKCASE Parts Diagram

Chainsaw

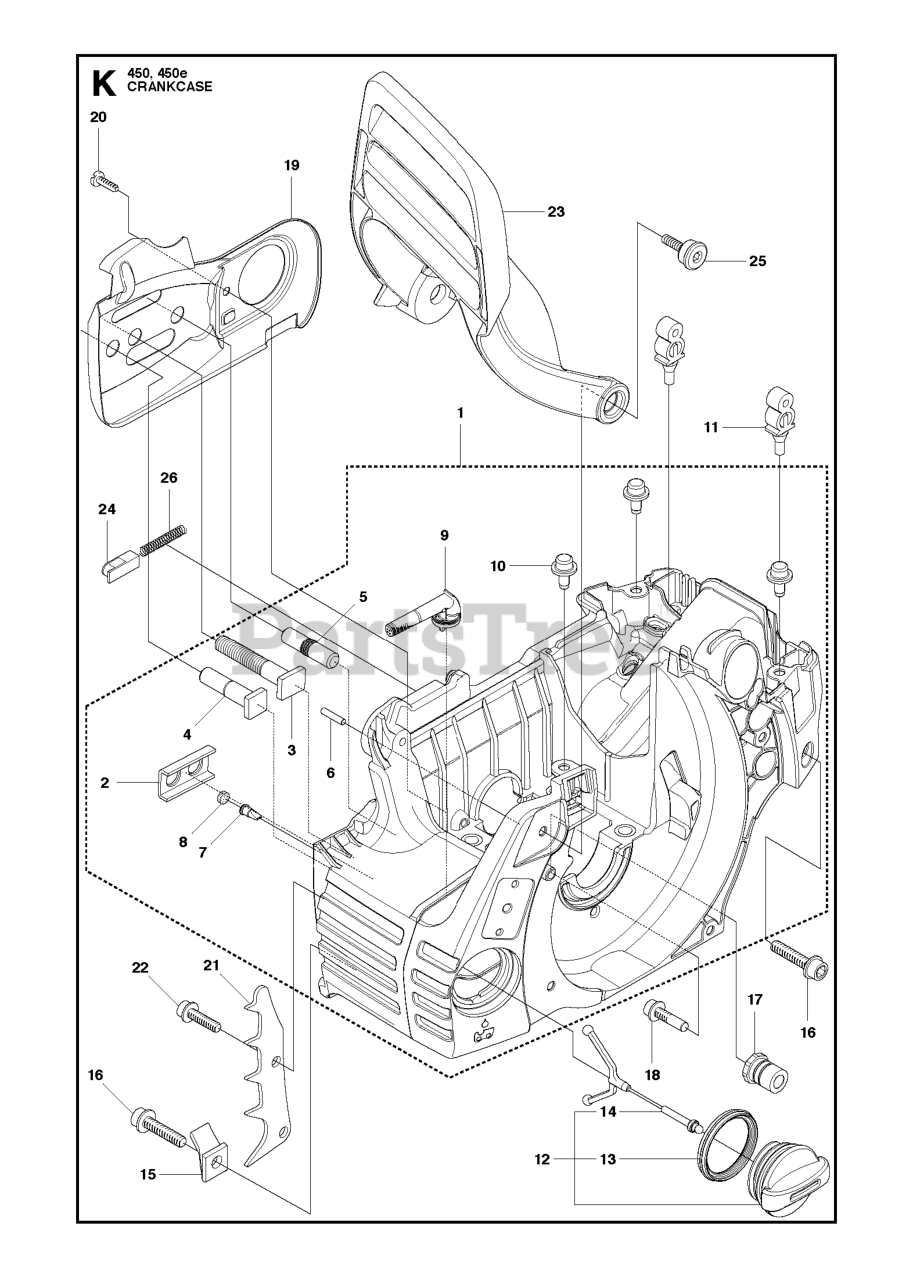

CRANKCASE Parts Diagram

  • Title

20

Husqvarna 503217010

SCREW

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 544083301

OIL SCREEN

$5.99

$

In Stock, only 2 left!

0

18

Husqvarna 503215103

SCREW IHSCFT

$3.49

$

In Stock, only 2 left!

0

5

Husqvarna 544036401

BAR BOLT

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 503218876

SCREW

$5.99

$

In Stock, Qty 7

0

22

Husqvarna 503217520

SCREW

$3.49

$

In Stock, Qty 15

0

15

Husqvarna 503886301

CHAIN CATCHER

$5.99

$

In Stock, Qty 7

0

17

Husqvarna 501007601

LATERAL SUPPORT

$3.49

$

In Stock, only 2 left!

0

21

Husqvarna 503905901

SPIKE

$9.49

$

Usually ships in 3-10 days

0

25

Husqvarna 503893001

SCREW

$4.99

$

In Stock, only 4 left!

0

14

Husqvarna 503578901

TANK LOCK

$5.99

$

In Stock, Qty 10

0

12

Husqvarna 544111203

ASSY TANK CAP GREY
(Superseded to 544111201)

$7.99

$

Usually ships in 3-10 days

0

19

Husqvarna 544094001

CHAIN GUIDE PLATE

$13.99

$

In Stock, Qty 12

0

1

Husqvarna 537438201

CRANKCASE

Note: ORANGE

$113.99

$

In Stock, only 2 left!

0

24

Husqvarna 503892401

CATCH

$6.99

$

In Stock, Qty 10

0

11

Husqvarna 503869301

SUPPORT
(Superseded to 597909701)

$6.99

$

In Stock, only 2 left!

0

6

Husqvarna 503240905

PIN

$3.49

$

In Stock, Qty 10

0

26

Husqvarna 503436501

LOCK SPRING

$3.49

$

In Stock, only 2 left!

0

2

Husqvarna 503875802

STIFFENING PLATE

$6.99

$

In Stock, Qty 12

0

8

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.49

$

In Stock, Qty 10

0

13

Husqvarna 589241101

SEALING

$6.99

$

In Stock, Qty 5

0

23

Husqvarna 505422701

HAND GUARD
(Superseded to 544082601)

$13.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 20+

0

4

Husqvarna 537334601

BAR BOLT

$6.99

$

In Stock, Qty 7

0

10

Husqvarna 544331601

GUIDE PEN

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 537438205

NEEDS DESCRIPTION

Note: GREY

$125.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503875402

BAR BOLT

$6.99

$

In Stock, Qty 17

0
