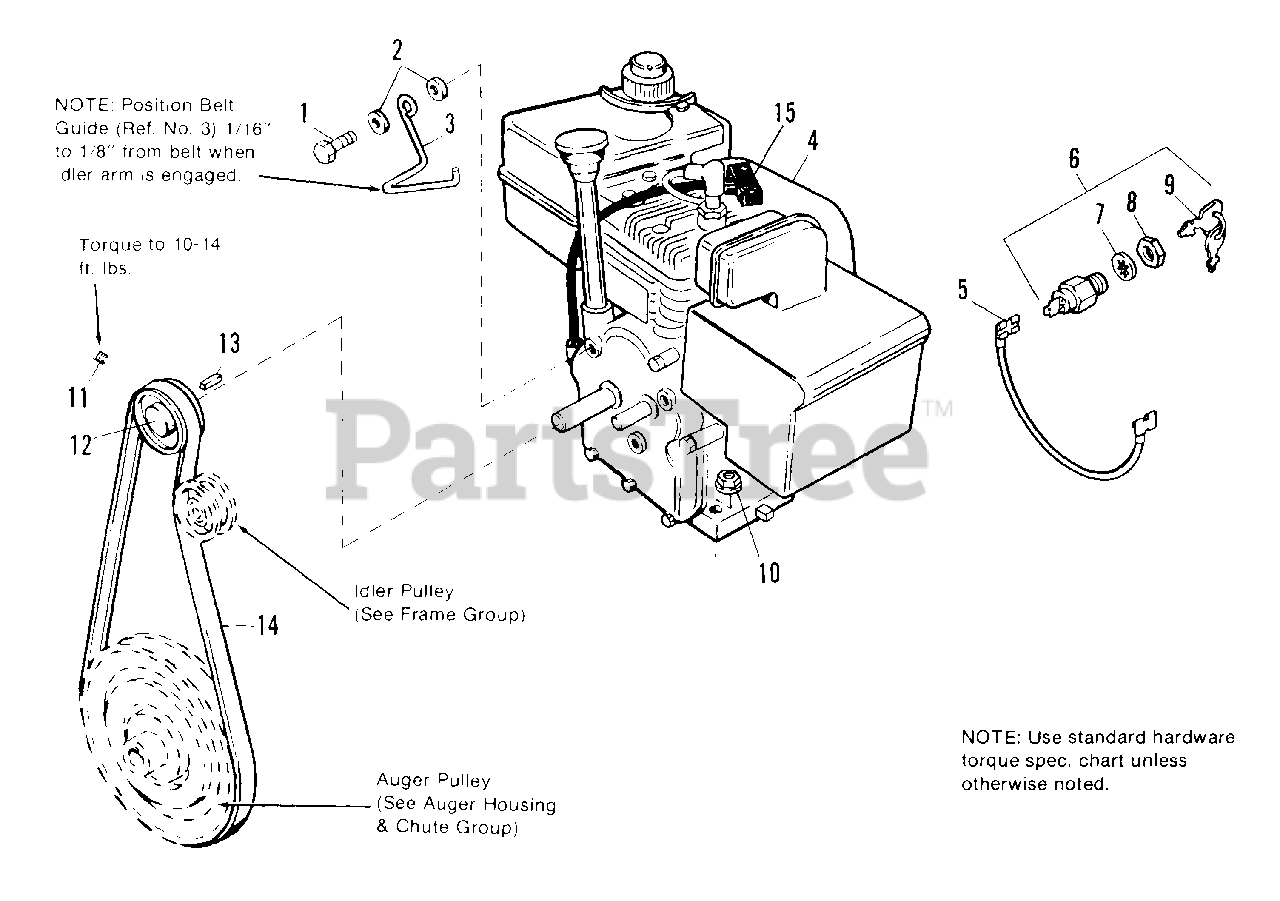

450 M (1691172) - Simplicity 20" Snow Thrower, 3.5hp Engine Group Parts Diagram

20" Snow Thrower, 3.5hp

Engine Group Parts Diagram

  • Title

1

Simplicity 1921515SM

CAPSCREW, Hex, 5/16-24 x 3/4
(Superseded to 703336)

$4.99

$

In Stock, Qty 14

0

2

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1677924SM

GUIDE, Belt, Engine Pulley

$19.99

$

Usually ships in 2-12 days

0

4

ENGINE, 3.5 HP (Tecumseh)

$

$

Not available

5

Simplicity 1667700

GROUND WIRE, Switch

$

$

Not available

6

Simplicity 2177163SM

SWITCH ASSY., Ignition w/Keys (Incl. Ref. Nos. 7, 8 & 9)

$50.99

$

In Stock, only 1 left!

0

7

Simplicity 2818906

LOCKWASHER, 5/8

$

$

Not available

8

Simplicity 2122234SM

NUT, Hex, 5/8-32
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 1717163SM

KEY & RING ASSY.

$9.49

$

In Stock, only 2 left!

0

10

Simplicity 1931277SM

NUT, Hex, Fl. Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 1960619SM

SETSCREW, Socket Hd., 5/16-18 x 5/16

$3.49

$

In Stock, Qty 7

0

12

Simplicity 1674328

PULLEY, Engine

$

$

Not available

13

Simplicity 2805850SM

KEY, Sq., 3/16x 3/16x 1

$

$

Not available

14

Simplicity 1674312SM

V-BELT, Auger Drive

$28.99

$

In Stock, only 3 left!

0

15

ELECTRIC START

$

$

Not available
