4500 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1979) Deck, Shroud And Handle Group Utility Model 8600 Self-Propelled Parts Diagram

Walk-Behind Mower

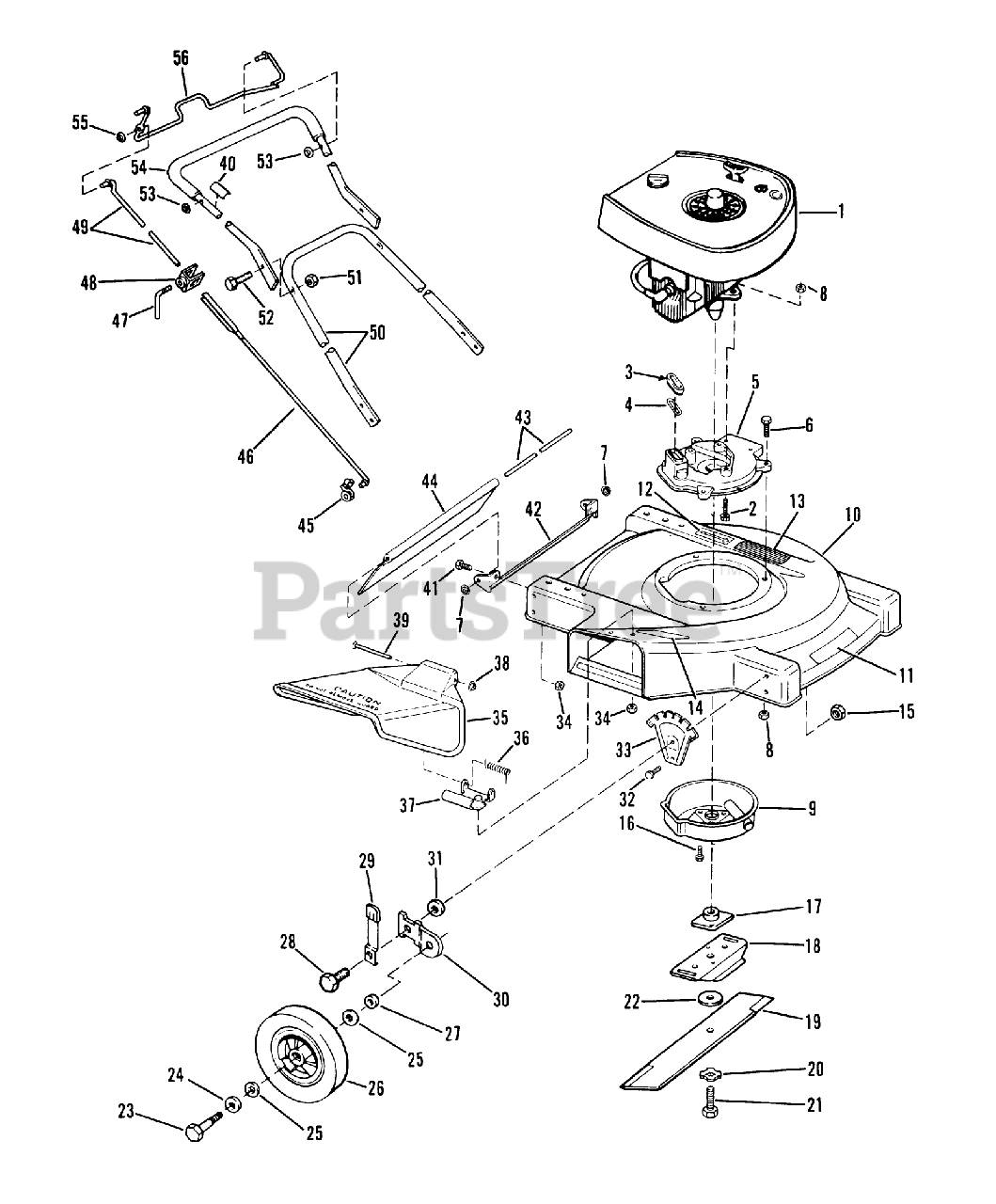

Deck, Shroud And Handle Group Utility Model 8600 Self-Propelled Parts Diagram

  • Title

1

Lawn-Boy 681982

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 609994

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 602717

SLEEVE

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 604624

GASKET S

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$9.99

$

In Stock, Qty 8

0

5

Lawn-Boy 609955

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 604862

SCREW

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 609975

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 608311

NUT-LOCK F

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 681902

See Supercession: 682873-03
(Superseded to 682873-03)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 681967

DISCONTINUED
(Superseded to 682792)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 609991

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 609993

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 609961

PAD FOOT

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 610054

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 603773

LOCKNUT

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 609471

SCREW

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 681863

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 603541

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 610041

See Supercession: 612544-03
(Superseded to 612544-03)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 605339

LOCKWASHER

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 609960

BLADE BOLT

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 605058

WASHER

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 15

0

23

Lawn-Boy 603441

BOLT WHEEL

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 605256

SPACER

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 9

0

25

Lawn-Boy 605255

WASHER

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 678637

See Supercession: 131-4520
(Superseded to 131-4520)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

27

Lawn-Boy 603620

WASHER WROUGHT

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 608835

See Supercession: 610646
(Superseded to 610646)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 681903

KNOB & SPRING

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$22.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 608834

WASHER

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 610039

See Supercession: 323-4
(Superseded to 323-4)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$3.99

$

In Stock, Qty 19

0

33

Lawn-Boy 609979

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 602315

LOCKNUT E

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

35

Lawn-Boy 681880

CHUTE DEFLECTOR AY

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$260.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 610015

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 681879

HINGE & SCREW ATA

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 610017

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 610016

PIN

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$55.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 609981

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 610027

BRACKET (12)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 610026

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 610025

TRAILING SHIELD

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$87.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 610090

CLIP

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$13.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 681872

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 603699

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 602992

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 609982

DISCONTINUED
(Superseded to 610543)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 607296

See Supercession: 611113
(Superseded to 611113)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 602315

LOCKNUT E

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

52

Lawn-Boy 610096

SCREW - USE 137-3042

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 16

0

54

Lawn-Boy 681889

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 609975

DISCONTINUED

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 609973

See Supercession: 610755
(Superseded to 610755)

Note: Note: Painted, plastic, fiber glass replacement parts or wheels may not always be available in matching colors.

$

$

Not available
